Delta R52000E Features:
- Digital controlled thermostatic shower valve
- Provides two individual shower ports with shared settings where available
- Independent temperature and volume control for each outlet port
- Provides option to restrict shower ports, ensuring compliance with water regulations in your area
- Test button for rough-in pressure check
- Diagnostic LED
- Firmware updateable through the user interface when connected to WiFi
- Separate mixing valves independently calibrated for each outlet
- Required digital interface not included

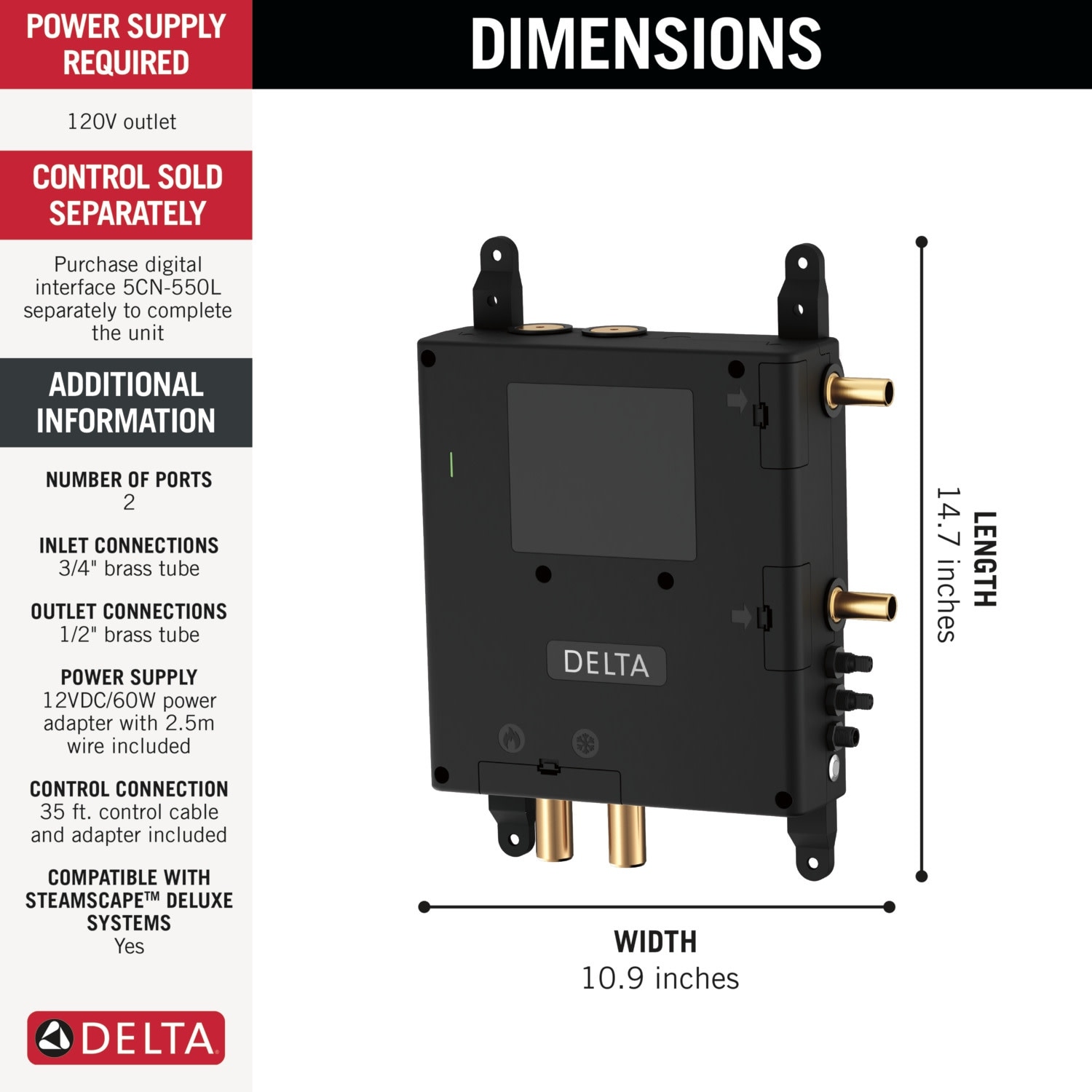

Delta R52000E Specifications:
- 3/4" Brass tube inlet connections
- 1/2" Brass tube outlet connections
- Max power requirement is 60 Watts
- Maximum operating pressure is 100 PSI
- Maximum water temperature is 150 degree F
- Max flow for each outlet device is 8 gpm at 60 PSI
- Max flow for all outlets device is 16 gpm at 60 PSI
- Minimum flow for each outlet device or shower head is 1.2 gpm
- Includes: 2-Port Digital Shower Rough 12VDC/60W power adapter with 2.5m wire 35' interface cable interface cable adapter
- Requires 120V outlet
- Required interface 5CN-550L, 5CH-550L, or 5CB-550L (sold separately)
Delta R52000E Some Important Notes:
- Follow all applicable national and local plumbing, electrical, and building codes
- Some electrical codes require a circuit protected by a ground-fault circuit interrupter (GFCI).
- Use a water heating system capable of handling large flow rates. Flow rate chart on spec sheet
- Locate the shower valve near the shower outlets for optimum performance
- The shower valve is not position sensitive and may be installed vertically or horizontally
- The location must provide unrestricted access for service
- Do not install this valve in an uninsulated attic or crawl space
- Do not install in any area where the ambient temperatures may exceed 104°F or drop below 50°F
- Make sure the shower drain can sufficiently accommodate the full potential flow at any one time.
