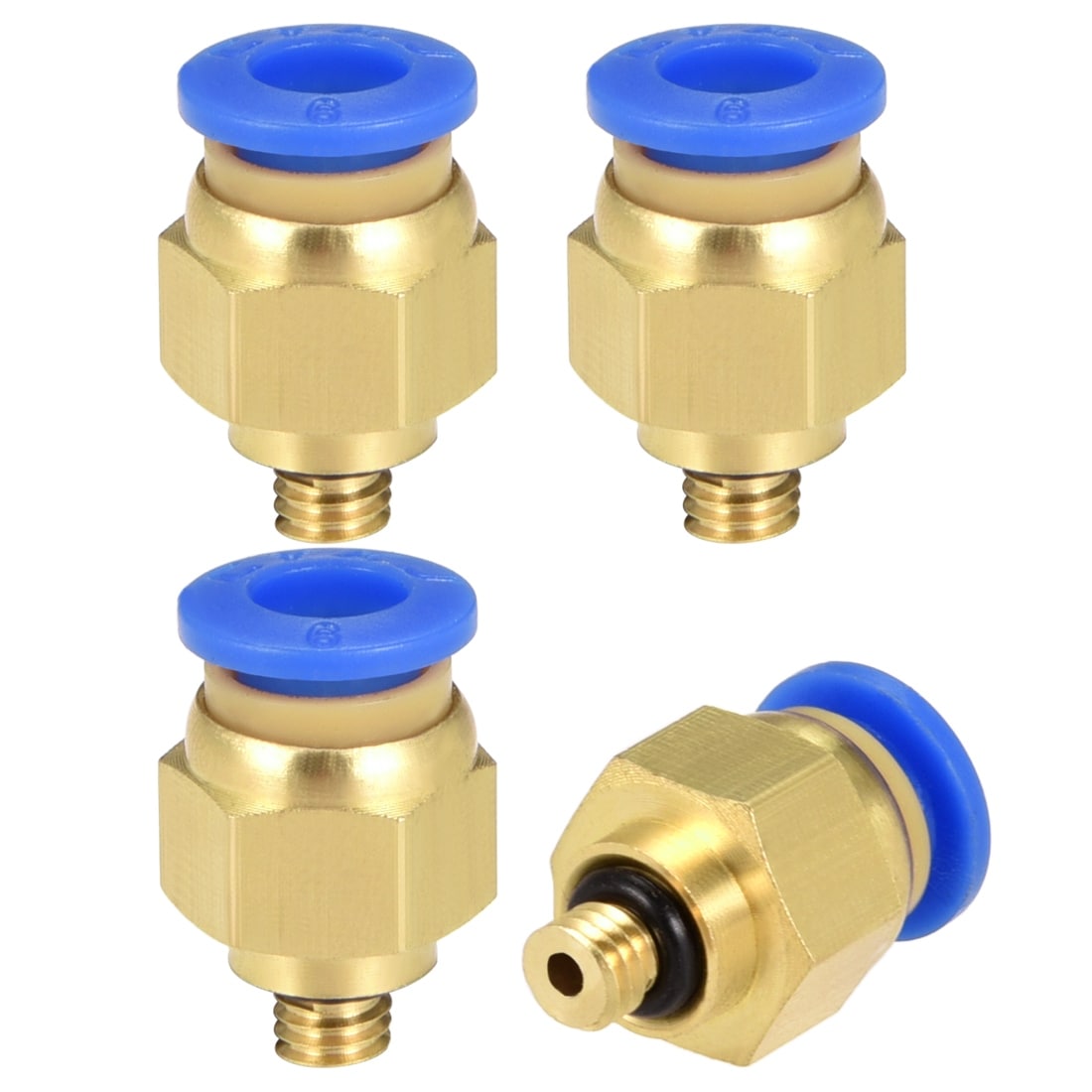

4Pcs Pneumatic Straight Quick Fitting 6mm Thread M5 One Touch Hose Connector - Gold Tone,Blue - 6mm OD x M5
4Pcs Pneumatic Straight Quick Fitting 6mm Thread M5 One Touch Hose Connector - Gold Tone,Blue - 6mm OD x M5 - 6mm OD x M5 / Gold Tone,Blue is backordered and will ship as soon as it is back in stock.
4Pcs Pneumatic Straight Quick Fitting 6mm Thread M5 One Touch Hose ...
Description
Description
- Product Name : push to quick fitting; Model : PC6-M5 ; Tube and Thread Size : 6mm OD x M5
- Operating Pressure : 0-0.9MPa ; Operating temperature：0 - 60 Degree Celsius
- TUBE FITTINGS. Push-to-connect tube connection on one end and male threads on the other end. A good release cap can withstand greater and stronger pressure without tripping.
- ADVANTAGE. Have abrasion resistance, light weight, and resistance to crushing and cracking,Compressive and corrosion resistant, good sealing performance and long service life.
- HIGH QUALITY MATERIAL. Designed for using to connect with polyethylene, nylon and PU tubing.Quick and simple installation.
-
Product Features:
Product Name : Quick Fittings
Model : PC6-M5
Net Weight : 21g
Color : Gold Tone,Blue
Material : Plastic,Brass
Thread Type : G Type

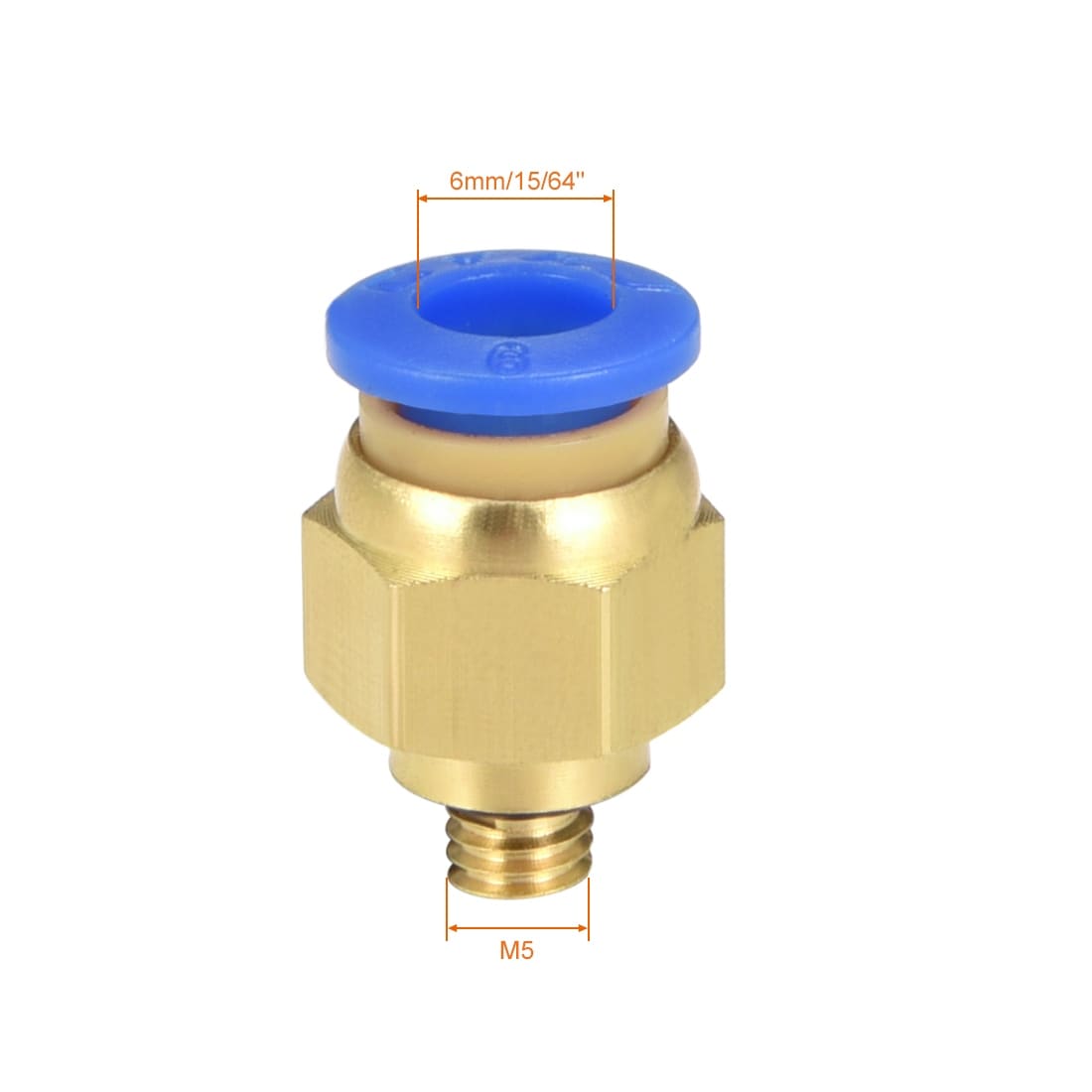

Thread Tube Size : M5
Inner Diameter(Blue End) : 15/64" = 6mm
Operating Pressure : 0-0.9MPa
Type: Male Straight Thread Connector
Dimension : 20mm x 12mm / 0.79-inch x 0.47-inch (L x W )
Package Content:
4pcs x Quick Fittings
Description:
1.The quick fitting is designed for Polyurethane or Nylon tubing. Even after installation, the direction of the tube can be changed freely.
2.Push-to-connect tube connection on one end and male G threads on the other end.
3.A good release cap can withstand greater and stronger pressure without tripping.
4.Have abrasion resistance, light weight, and resistance to crushing and cracking,Compressive and corrosion resistant, good sealing performance and long service life.
5.Elliptical release ring help to connect tube easily by manual, no special tools required.
Mounted:
1.Cut the pipe flat, no slope
2.When inserting the pipe into the joint, it must be inserted into the end, otherwise there may be a leak.
3.After plugging in, try to pull the tube, if you can't pull it out, it means it has been connected.
4.When loosening the tube, first confirm that there is no pressure in the tube, and then evenly press the end cap to the bottom.
