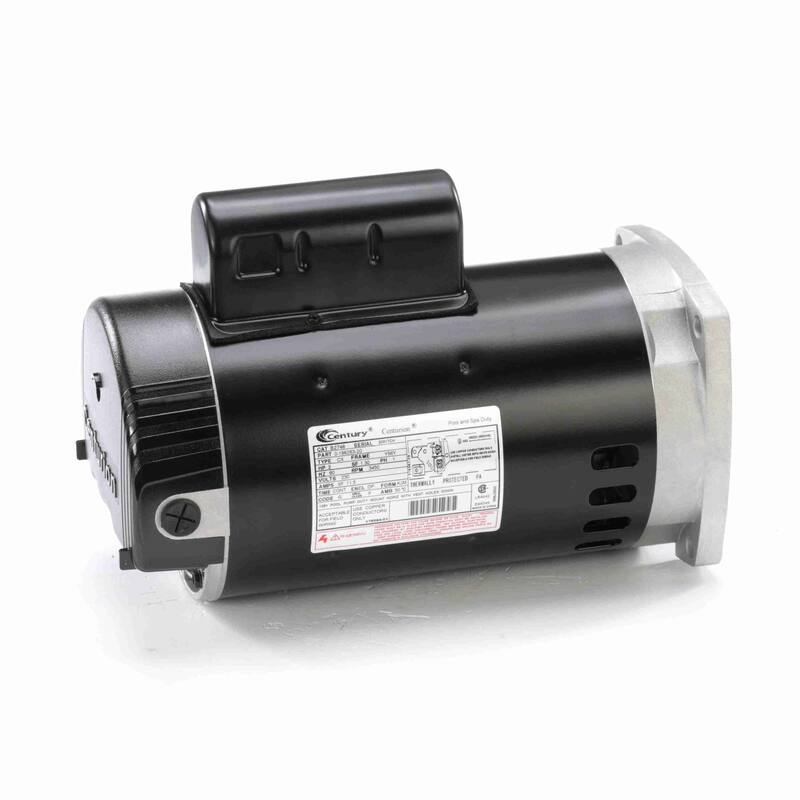

2 HP Threaded Shaft Horizontal Pool Pump Motor, 1.30 SF
2 HP Threaded Shaft Horizontal Pool Pump Motor, 1.30 SF
This full-rated motor is all that you need to make your life easy! Enjoy your time in the swimming pool by having this enduring motor. Generating an output power of 2 HP, this motor is an asset!
Product Features:
Switchless threaded shaft pool pump motor
Comes with sealed ball bearings and stainless steel shaft
Includes permanent split capacitor
Contains open drip-proof technology
Additional Features:
Output HP: 2.0 Hp
Current: SF 11.5 A
Frequency: 60 Hz
Service Factor: 1.3
Duty: continuous
Frame size: Y56J
Protector: thermally protected
UL: recognized
Output KW: 1.5 kW
Voltage: 230 V
Speed: 3450 rpm
Ambient temperature: 50°C
Phase: 1
Insulation Class: F
Enclosure: drip proof
CSA: Y
Electrical type: permanent split capacitor, single or dual voltage
Rotation: counterclockwise pump end
Motor orientation: horizontal
Opp drive end bearing: BALL
Shaft type: threaded
Poles: 2
Mounting: round
Drive end bearing: BALL
Dimensions:
Frame length: 9"
Shaft extension: 0.91"
Overall length: 13.4"
Shaft diameter: 0.62"
Material(s): stainless steel
Frame material: rolled steel
- Type
- Pumps
- Color
- Black
- Dimensions
- 9.0 In. L X 9.0 In. W X 9.0 In. H
- Material
- Stainless Steel
- Assembly
- Assembled
- Country of Origin
- China
- Warranty
- 30 day Distributor
