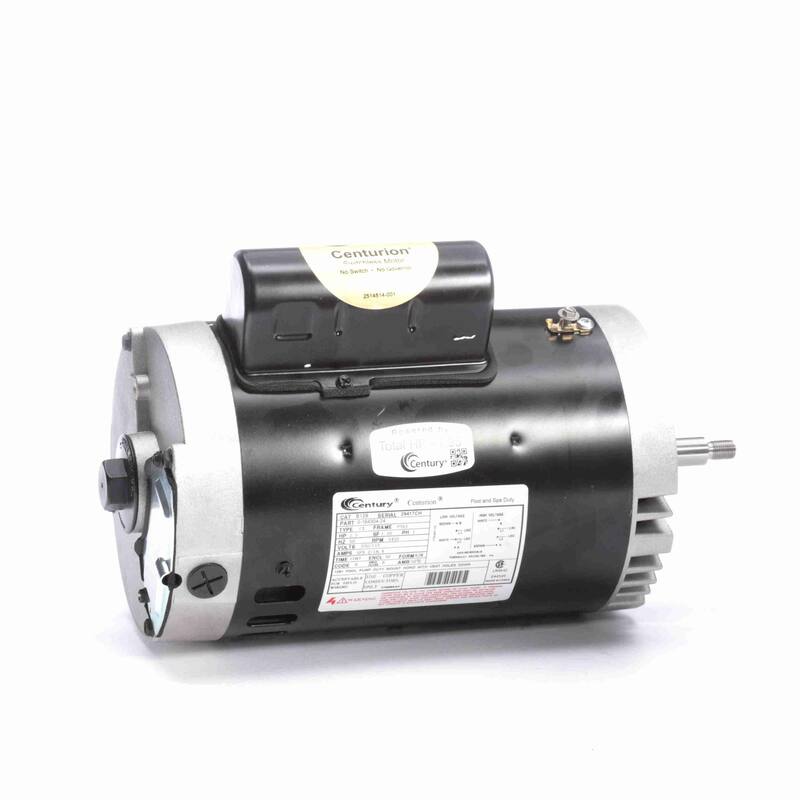

1.5 HP C Face Threaded Shaft Horizontal Pool Pump Motor, 1.30 SF
1.5 HP C Face Threaded Shaft Horizontal Pool Pump Motor, 1.30 SF
A threaded shaft is always better than a regular shaft! Enjoy your time in the swimming pool by having this enduring motor. Arriving with the specification of 1.5 HP, this motor is an asset!
Product Features:
Switchless rigid base pool pump motor
Comes with 304 bearing shaft end and 303 stainless steel shaft
Includes permanent split capacitor
Contains open drip-proof technology
Additional Features:
Output HP: 1.5 Hp
Current: SF 9.2/18.4 A
Frequency: 60 Hz
Service Factor: 1.3
Duty: continuous
Frame size: P56J
Protector: thermally protected
UL: recognized
Output KW: 1.1 kW
Voltage: 230/115 V
Speed: 3450 rpm
Ambient temperature: 50°C
Phase: 1
Insulation Class: B
Enclosure: drip proof
CSA: Y
Electrical type: permanent split capacitor, single or dual voltage
Rotation: counterclockwise pump end
Motor orientation: horizontal
Opp drive end bearing: BALL
Shaft type: threaded
Poles: 2
Mounting: C face
Drive end bearing: BALL
Dimensions:
Frame length: 8"
Shaft extension: 2.57"
Overall length: 13.5"
Shaft diameter: 0.62"
Material(s): stainless steel
Frame material: rolled steel
- Type
- Pumps
- Color
- Black
- Dimensions
- 13.5 In. L X 1.0 In. W X 1.0 In. H
- Material
- Stainless Steel
- Assembly
- Assembled
- Country of Origin
- China
- Warranty
- 30 day Distributor
