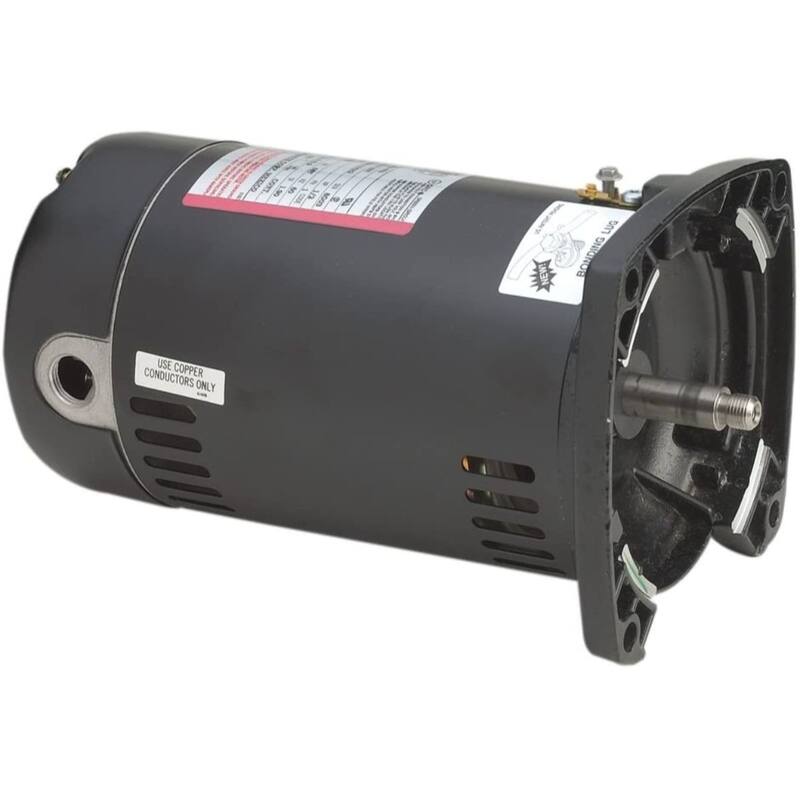

0.75 HP Flange Threaded Shaft Horizontal Pool Pump Motor 1.27 SF
0.75 HP Flange Threaded Shaft Horizontal Pool Pump Motor 1.27 SF
Be it for your swimming pool pumps or spa pumps; now you have the appropriate replacement motor. Showcasing a square flanged mounting, it follows the method of automatic protection. Providing an open drip-proof enclosure, you need not worry about excessive moisture.
Product Features:
Capacitor start pool pump motor
Motor has a threaded shaft
UL 1081 design
Single phase motors
Additional Features:
Output HP: 0.75 Hp
Current: 6.7/13.4 A
Frequency: 60 Hz
Service Factor: 1.27
Duty: continuous
Frame size: 48Y
Protector: automatic
UL: recognized
Output KW: 0.56 kW
Voltage: 230/115 V
Speed: 3450 rpm
Ambient temperature: 50°C
Phase: 1
Insulation Class: B
Enclosure: open drip proof
CSA: Y
Electrical type: cap start motor
Rotation: counterclockwise pump end
Motor orientation: horizontal
Opp drive end bearing: BALL
Shaft type: threaded
Poles: 2
Mounting: square flange
Drive end bearing: BALL
Dimensions:
Frame length: 8.31"
Shaft extension: 0.90"
Overall length: 12.19"
Shaft diameter: 0.62"
Material(s): stainless steel
Frame material: rolled steel
- Type
- Pumps
- Color
- Black
- Dimensions
- 12.0 In. L X 1.0 In. W X 1.0 In. H
- Material
- Stainless Steel
- Assembly
- Assembled
- Country of Origin
- China
- Warranty
- 30 day Distributor
