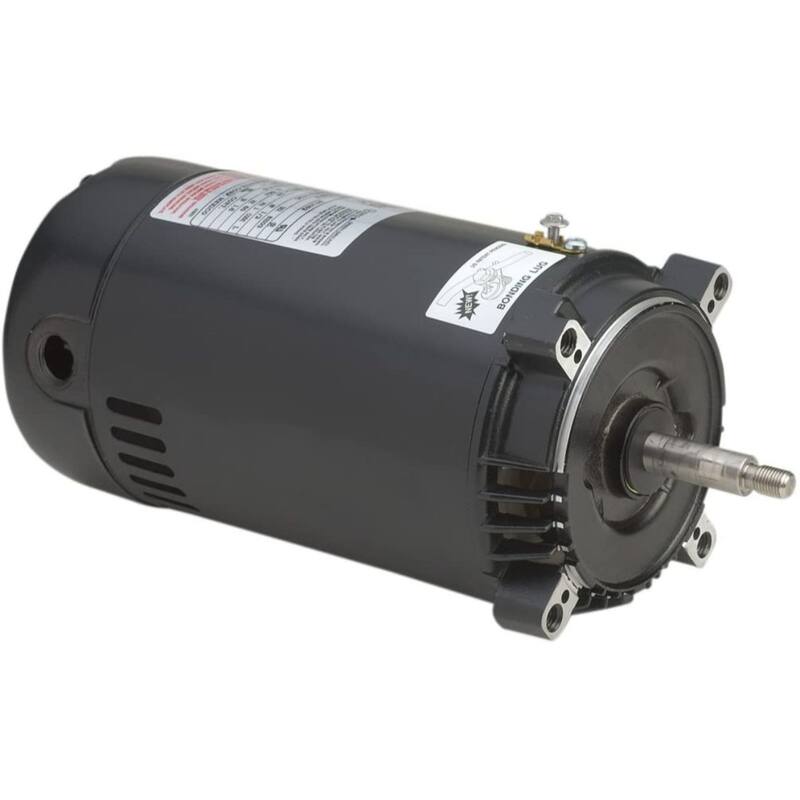

0.75 HP C Face Threaded Shaft Single Phase Pool Pump Motor 1 SF
0.75 HP C Face Threaded Shaft Single Phase Pool Pump Motor 1 SF
With a corrosion-resistant outer shell, this round-shaped flange motor protects your swimming pools. Easing you out, it has easy wiring access. This high-quality addition tackles moisture issues and ensures a suitable overflow.
Product Features:
Sealed switch design pool pump motor
Comes with 304 bearing shaft end and 303 stainless steel shaft
Capacitor start-capacitor run
UL 1081 design
Additional Features:
Output HP: 0.75 Hp
Current: 5.5/11.0 A
Frequency: 60 Hz
Service Factor: 1
Duty: continuous
Frame size: 56J
Protector: automatic
UL: recognized
Output KW: 0.56 kW
Voltage: 230/115 V
Speed: 3450 rpm
Ambient temperature: 50°C
Phase: 1
Insulation Class: B
Enclosure: open drip proof
CSA: Y
Electrical type: cap start motor
Rotation: counterclockwise pump end
Motor orientation: horizontal
Opp drive end bearing: BALL
Shaft type: threaded
Poles: 2
Mounting: C face
Drive end bearing: BALL
Dimensions:
Frame length: 7.38"
Shaft extension: 2.56"
Overall length: 13.20"
Shaft diameter: 0.62"
Material(s): stainless steel
Frame material: rolled steel
- Type
- Pumps
- Color
- Black
- Dimensions
- 13.0 In. L X 1.0 In. W X 1.0 In. H
- Material
- Stainless Steel
- Assembly
- Assembled
- Country of Origin
- China
- Warranty
- 30 day Distributor
