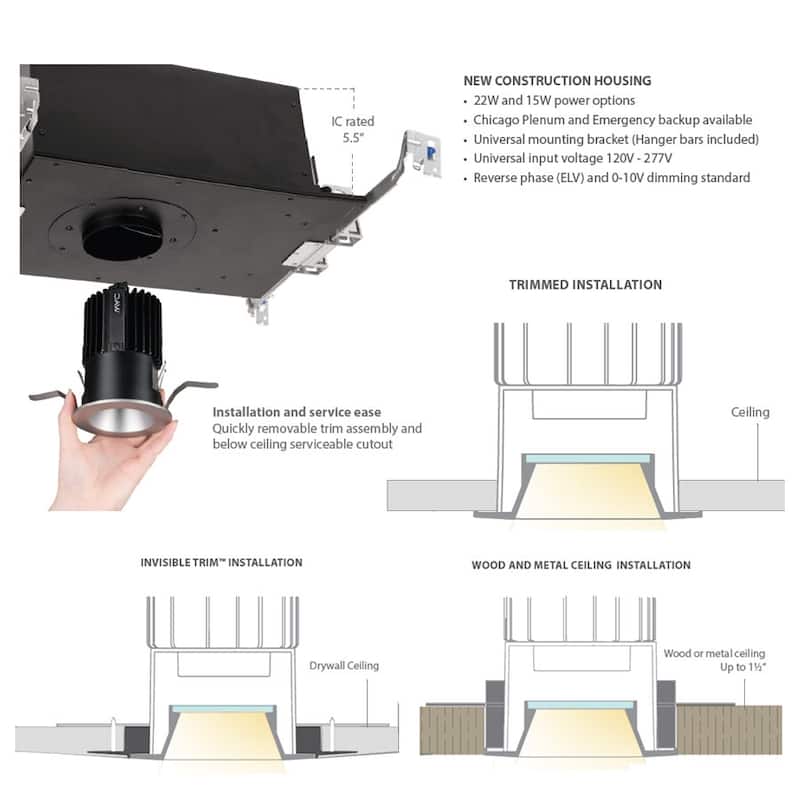

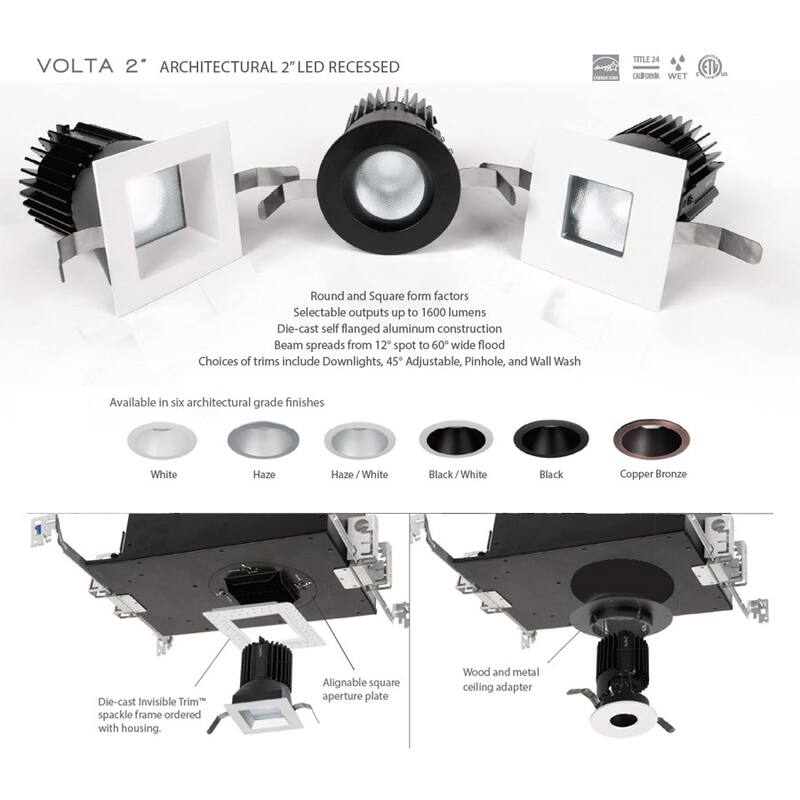

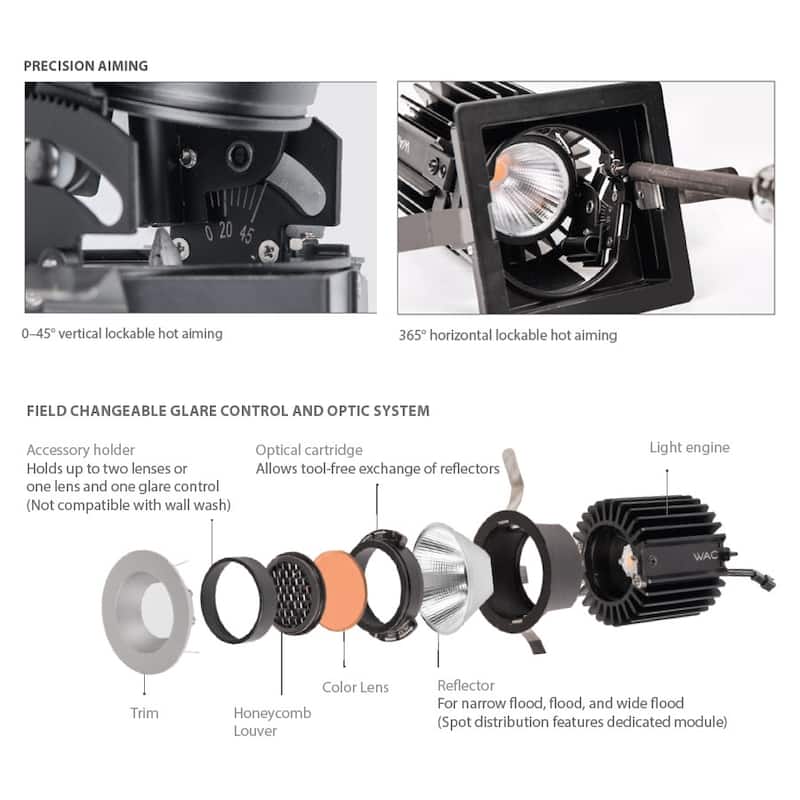

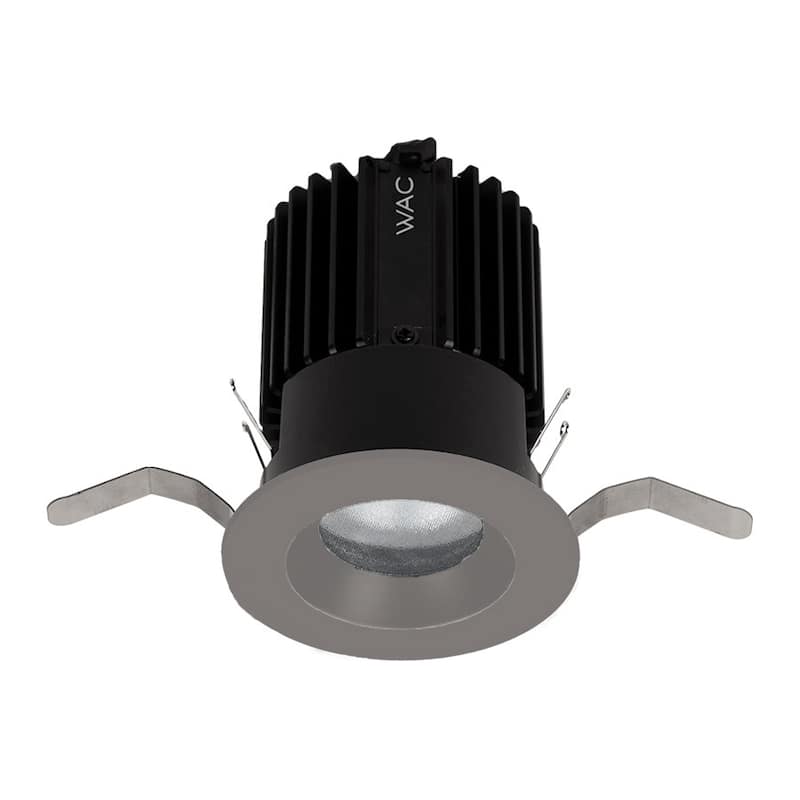

Volta is the quintessential high performance LED architectural recessed downlight. Volta can be specified with variable serviceable drivers to plan your project in accordance with energy and lighting requirements up to 1,500 Lumens from a 2in aperture or up to 3,000 Lumens from the 4.5in. Available in New Construction IC Rated Airtight or Remodel Non-IC Airtight with Emergency backup battery and Chicago Plenum Safety options. Volta trims include an LED Light Engine with a replaceable High Powered LED module and are available in a variety of options including Round, Square, Adjustable, Wall Wash, Shallow Regressed, or a sleek flangeless trim which can be spackled directly up to the aperture. Tool-less in-field adjustable glare control and optic system can be used for louvers, lens, and beam control.

Features

• For Trimless / Invisible Trim applications, select appropriate Invisible Trim Housing
• Designed for commercial or residential use
• Constructed from die cast aluminum
• Integrated LED lighting
• Smooth and continuous dimming to 1% with an ELV or 0-10V dimmer
• ETL rated for wet locations
• Energy Star approved
• Meets California Title 24 energy standards
• Fixture is covered by a manufacturer 5 year warranty; finish is covered by a manufacturer 2 year warranty

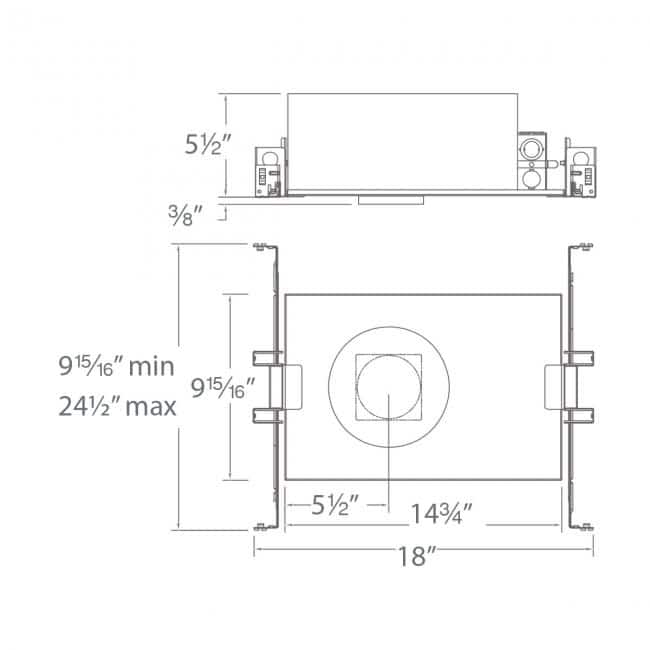

Dimensions

• Trim Size: 2"
• Height: 5"
• Width: 3-15/16"
• Depth: 3-15/16"
• Product Weight: 3.39 lbs
• Cutout Size: 3-1/2"
• Beam Spread: 25�

Electrical Specifications

• Color Temperature: 2700K, 3000K, 3500K, or 4000K
• Color Rendering Index: 85 or 90CRI
• Average Hours: 50000
• Voltage: 120, 240, and 277 volts
