Viking fxi-1a fxo, fxs paging adapter

Pricing and Options

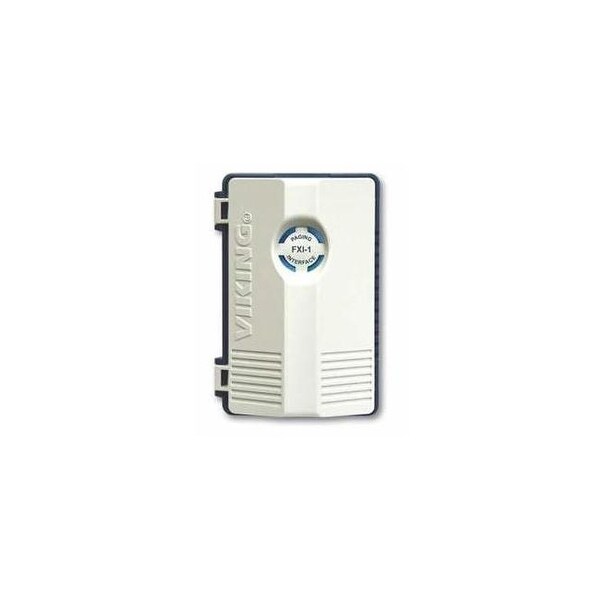

Viking fxi-1a fxo, fxs paging adapter

Brand Name

by Vikingsold and shipped by

Price Information

Today$117.77

Financing Option

Pay it off in up to 24 months with the Overstock Store Credit Card. Learn More

Delivery Estimate Summary

Free Shipping*
Want a shipping estimate?

Option Selection

Get $5.89 in Rewards
Start 30 day free trial. $19.95/year.

Add to Cart Button

Product Information

Details

  • viking universal paging interface
  • select: fxo (loop start), fxs (ring trip) or paging port (vox relay) interface mode
  • no power supply required in fxs interface mode
  • up to 6 units can be powered from one adapter in the fxo or vox mode
  • 30v dc talk battery for interfacing with fxo or unused phone system line input/trunk port
  • floating 600 ohm paging output with volume control
  • normally open or closed relay for external paging amp activation or interfacing the paging amp with an external background music source
  • 800 hz pre
  • announce page tone (on/off)
  • compatible with 24 to 48 volt fxs operation
  • calling party control (cpc) detection for immediate disconnect
  • busy signal detect disconnect
  • 2.5 to 5 second vox silence disconnect timer
  • programmable vox trigger sensitivity
  • 16 or 36 second default disconnect timer
  • screw terminal block connections
  • wall mount housing: (2) #6x3/4 panhead screws included
  • power: 12
  • 24v dc @ 100ma, 120v ac/12v dc @ 500ma, ul listed adapter included (not required in fxs mode)
  • dimensions: 111mm x 76mm x 36mm (4.38” x 2.97” x 1.38”)
  • shipping weight: .48 kg (1.06 lbs)
  • environmental: 0°c to 32°c (32°f to 90°f) with 5% to 95% non
  • condensing humidity
  • relay contacts: 30v dc@1a, 110v dc@0.3a, 125v ac@0.5a
  • vox minimum audio signal to activate relay:
  • 30dbm minimum /
  • 26dbm minimum @ 1khz with vox sensitivity switch at normal / lower positions
  • vox time out disconnect: 2.5 or 5 second
  • default time out disconnect: 16 or 36 seconds
  • talk battery: 30v dc vkfxi1


    While we aim to supply accurate product information, it is sourced by manufacturers, suppliers and marketplace sellers, and has not been provided by Overstock.
  • Country of Origin: United States
    Item #: 34933694
