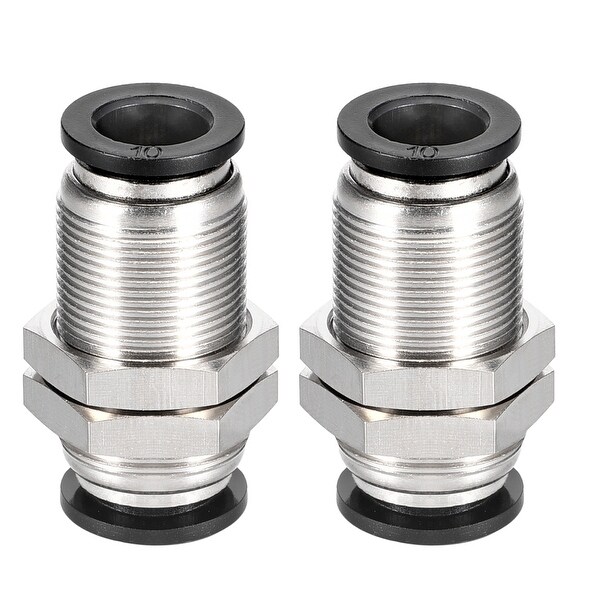

Straight Pneumatic Push to Quick Connect Fittings Bulkhead Union 10mm OD 2pcs

Pricing and Options

Straight Pneumatic Push to Quick Connect Fittings Bulkhead Union 10mm OD 2pcs

Brand Name

by Unique Bargainssold and shipped by

Price Information

Sale ends in: 15 hr 6 min

Financing Option

Pay it off in up to 24 months with the Overstock Store Credit Card. Learn More

Delivery Estimate Summary

Want a shipping estimate?

Option Selection

Free Shipping* & 5% Rewards
Start 30 day free trial. $19.95/year.

Add to Cart Button

Product Information


Product Features:

Product Name : Push to Connect Fittings

Model :MPM-10

Color : Silver Tone,Black

Material : Plastic,Metal

Thread Size : M18*1mm

Tube Size (OD) : 10mm / 3/8"

Operating Pressure : 0-9MPa

Guaranteed pressure resistance : 1.5MPa

Operating temperature:0 - 60 Degree Celsius

Dimension : 42mm x 21mm / 1.65-inch x 0.83-inch (L x W )


Package Content:

2pcs x Push to Connect Fittings



1.The quick fitting is designed for Polyurethane or Nylon tubing. Even after installation, the direction of the tube can be changed freely.

2.Push-to-connect tube connection on two end

3.A good release cap can withstand greater and stronger pressure without tripping.

4.Have abrasion resistance, light weight, and resistance to crushing and cracking,Compressive and corrosion resistant, good sealing performance and long service life.

5.Elliptical release ring help to connect tube easily by manual, no special tools required.

6.Outside (and Inside where applicable) hexagonal wrench tightening.



1.Cut the pipe flat, no slope

2.When inserting the pipe into the joint, it must be inserted into the end, otherwise there may be a leak.

3.After plugging in, try to pull the tube, if you can't pull it out, it means it has been connected.

4.When loosening the tube, first confirm that there is no pressure in the tube, and then evenly press the end cap to the bottom.

While we aim to supply accurate product information, it is sourced by manufacturers, suppliers and marketplace sellers, and has not been provided by Overstock.
Country of Origin: China
