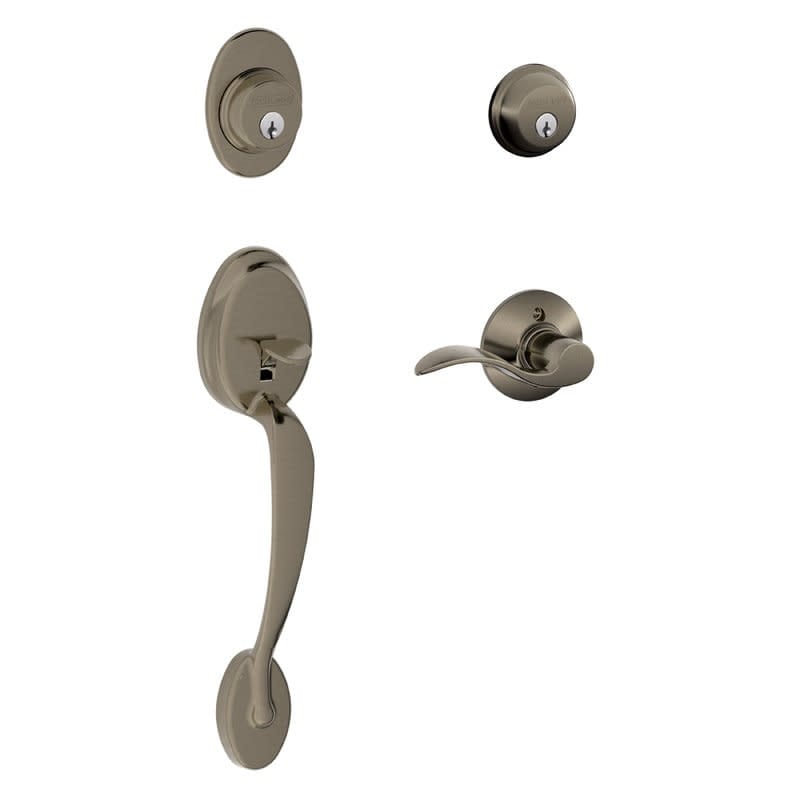

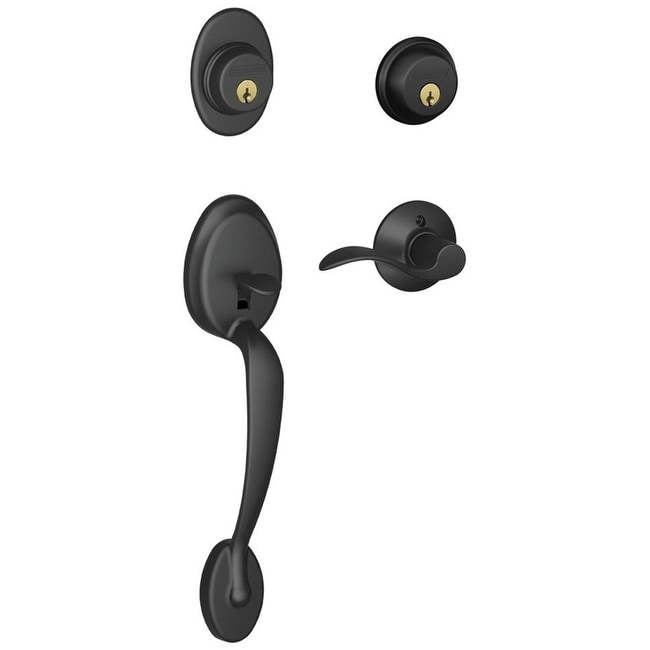

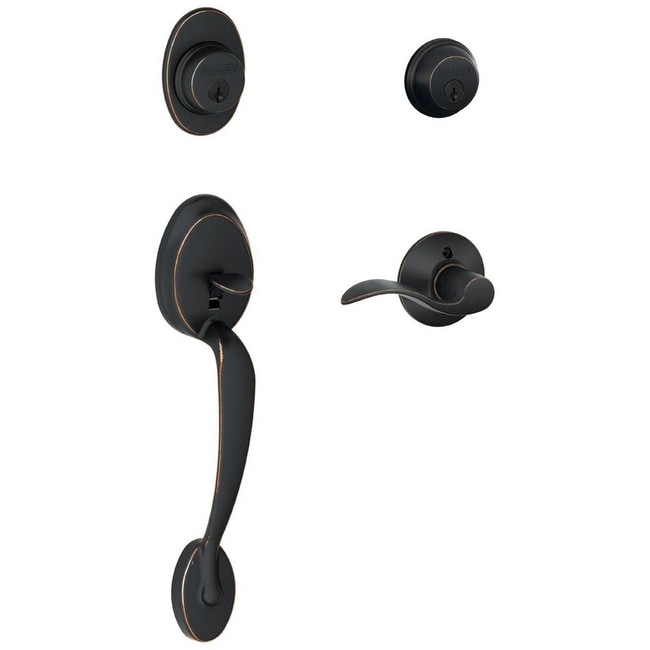

Plymouth Right Hand Double Cylinder Handleset with Accent Interior Lever from the F-Series
The timeless design of the Plymouth works with any style in any room of your home.
Handleset Features
- Replaces virtually any existing lock

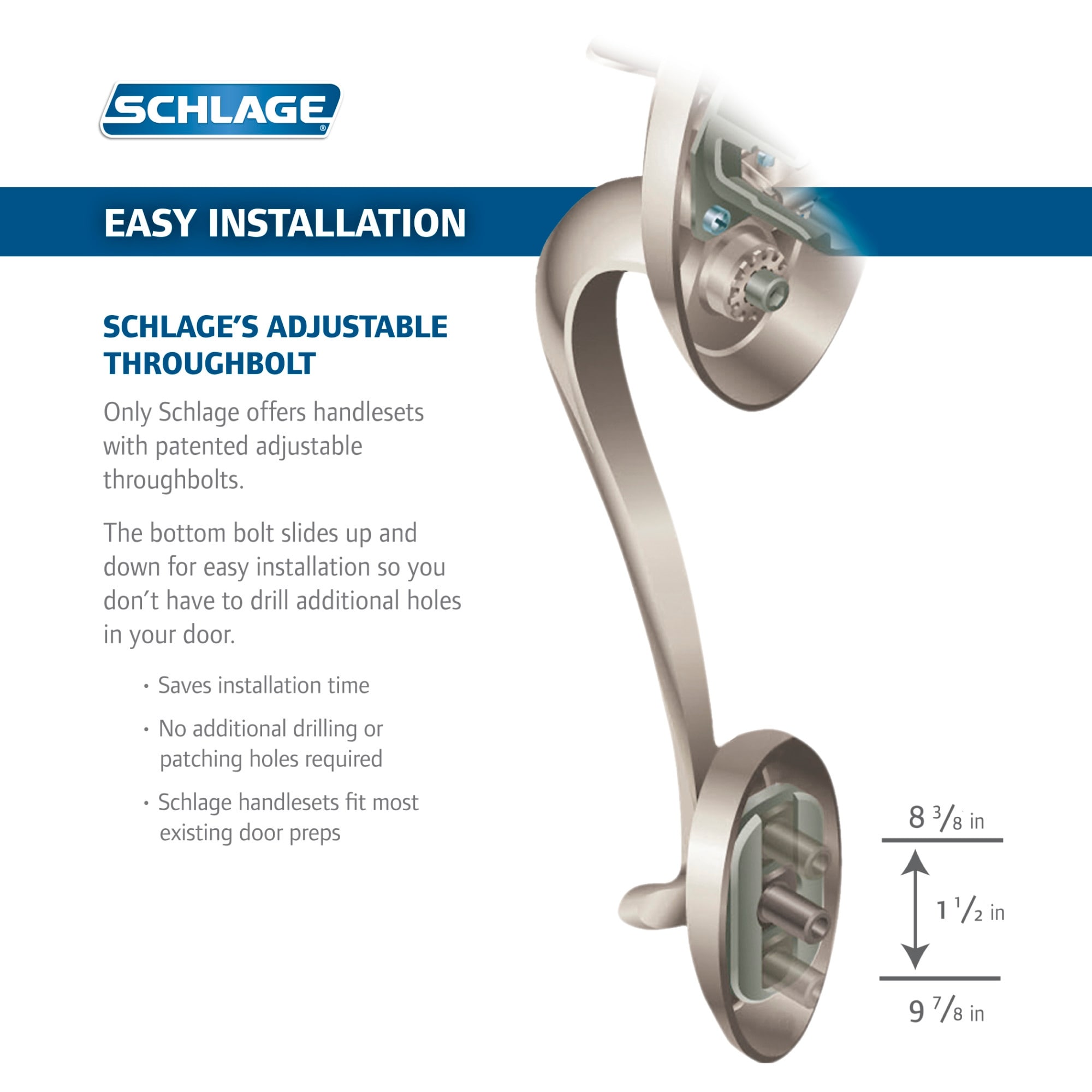

- Easy installation: One-person project; no extra hands needed

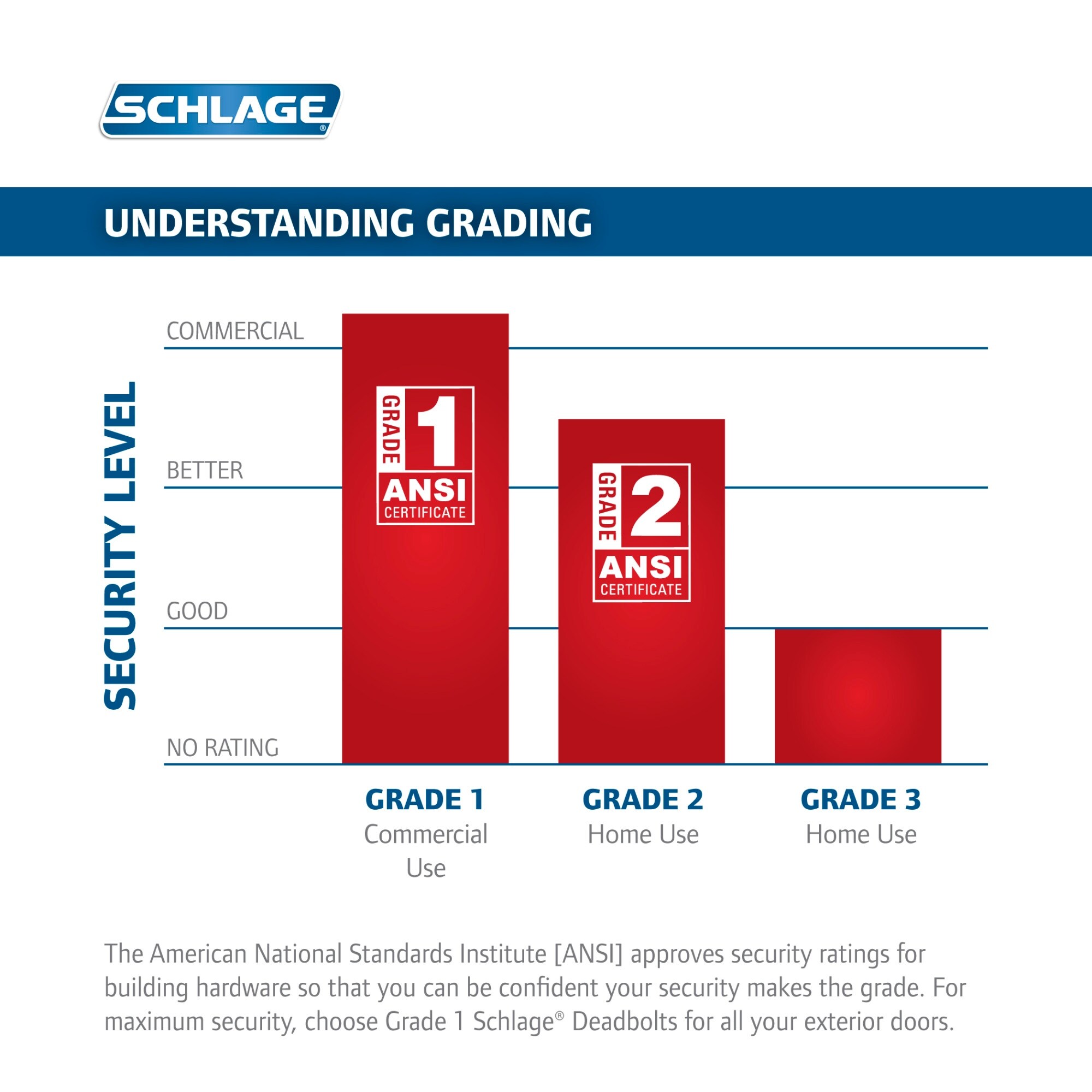

- ANSI Grade 2 with maximum security features
- Lifetime finish and mechanical guarantee
- Designs and finishes to match any home's architectural style
Deadbolt Features:
- Utilizes the new B-Series deadbolt with increased security and easier installation!
- 1/2" of bolt left in housing when bolt is thrown for added kick-in resistance.
- Integrated anti-pick shield with Snap & Stay� self adjusting tension provides added security and simplifies installation
- 1" Edge bore door preparation required for larger bolt housing
- Zinc bolt has hardened steel pin inside that spins in response to sawing attacks which prevents cutting or sawing
- Bolt diameter is 10% larger than typical bolts for maximum kick-in resistance
- Adjustable backset with the industry's only helical design that locks into place with no adjusting during installation
- Works for both 2-3/8" and 2-3/4" backsets.
- ADA compliant thumb turn
- Faceplates (Part 12-326): Supplied with 1/4" Round Corner, Square Corner and Drive-In Faceplates
- Strike Plates (Part 10-269): Supplied with a Round Corner Deadbolt Strike (10-116), Square Corner Full Lip Strike Plate (10-026) and Round Corner Full Lip Strike Plate (10-027) with Dimensions of 2-1/4" x 1-5/8"
Note: New interior packs will not work with old exterior packs. New exterior handlesets will not work with old interior packs.
Model Conversions:
- Old F358 - New F58
- Old F359 - New F59
- Old F362 - New F62
- Old F392 - New F92
- Old F394 - New F94
