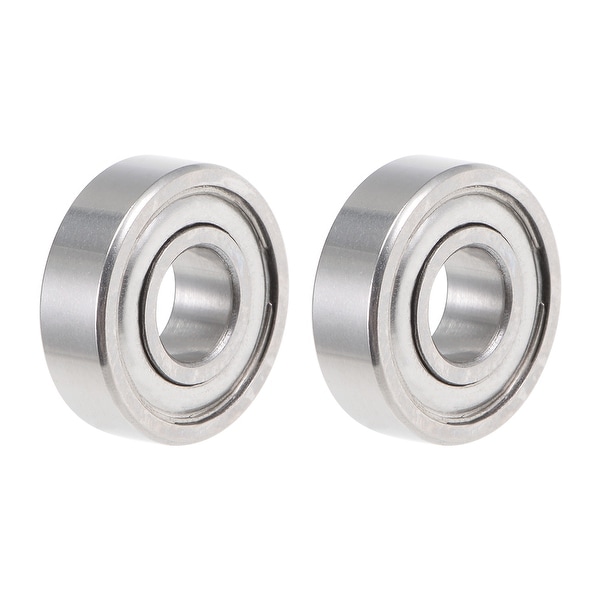

SR4ZZ Stainless Steel Ball Bearing 1/4"x5/8"x0.196" Shielded R4ZZ Bearings 2pcs

Pricing and Options

SR4ZZ Stainless Steel Ball Bearing 1/4"x5/8"x0.196" Shielded R4ZZ Bearings 2pcs

Brand Name

brand Unique Bargainssold and shipped by

Price Information

 $17.93
Today$10.61

Financing Option

Pay it off in up to 24 months with the Overstock Store Credit Card. Learn More

Delivery Estimate Summary

Want a shipping estimate?

Option Selection

ONLY 4 LEFT!
Free Shipping* & 5% Rewards
Start 30 day free trial. $19.95/year.

Add to Cart Button

Product Information

Details

NOTE:

Please refer to the picture and select right type of bearings before your order (Sealed or Shield on BOTH or SINGLE side of the bearing). Suffix on the bearing just for differentiating between Sealed and Shield type of bearing. It would not affect the use of our product.



Description:

-Single-row, pre-lubricated, normal accuracy.

-Deep Groove Ball Bearings are one of the most widely used rolling bearings. They are used to accommodate radial and axial loads in both directions.

-With small friction and high-limit speed, Ball Bearings are cost-effective and require little maintenance.

-Stainless steel bearing features stronger rust and corrosion resistance ability to withstand destruction caused by humidity and some other media.

-Suitable for all kinds of industrial equipment, micro motor, small rotary motor, office equipment and so on.



Selection Guide:

Shields (Designation Suffix Z/ZZ) - High speed. Protect from dirt and debris.

Sealed (Designation Suffix RS/2RS) - Made of sheet steel reinforced NBR (oil- and liquid-resistant). Lower limit speed than Shield Bearings.



Specification:

Model: SR4ZZ

Shield Type: Double Shielded

Inner Race/Outer Race Material: 440C Stainless Steel (9Cr18)

Cage Material: 304 Stainless Steel (0Cr18Ni9)

Inner Diameter (d): 1/4" / 6.35mm

Outer Diameter (D): 5/8" / 15.875mm

Thickness (B): 0.196" / 4.978mm

Dynamic Load Rating (Cr): 1.48kN

Static Load Rating (Cor): 0.615kN

Accuracy Class: P0 (ABEC-1)

Noise Level: Z1

Number of Pack: 2 Pcs




While we aim to supply accurate product information, it is sourced by manufacturers, suppliers and marketplace sellers, and has not been provided by Overstock.
Country of Origin: China
