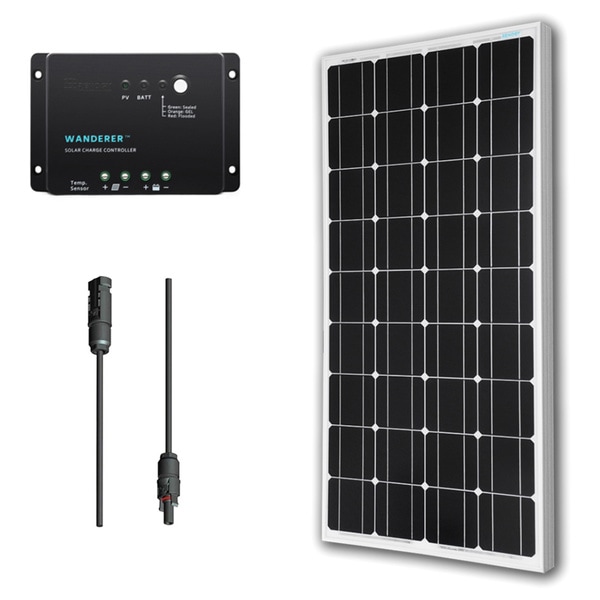

Renogy Solar Bundle Kit: 100W Monocrystalline 12V Solar Panel/ 30A Charge Controller/ MC4 Adapter Kit

Today: $179.99
Sale:$16199
Free Shipping*
Get Free Returns* and 5% in Rewards.
Try Club O free for 30 days. Only $19.95/year after. Learn More
Overstock's Loyalty Program
Free Shipping
Free Shipping*
on every purchase
Earn Rewards Back
5% Rewards
on every purchase
Free Returns
Free Returns*
for in-store credit
Rewards for Reviews
Earn Extra Rewards
when you shop the extra rewards store & for writing reviews
ITEM# 16301382
  • Delivery Estimate

    Select a Product Option to view shipping

      **Delivery date is approximate and not guaranteed. Estimates include processing and shipping times, and are only available in US (excluding APO/FPO and PO Box addresses). Final shipping costs are available at checkout.

    • Warranty
      Included: 5 year Limited Manufacturer
    • Notifications

      Receive product notifications for this item, and also receive other email-exclusive savings.

    Oops,

    something went wrong.

    Please refresh the page and try again.


    Details

    ITEM#: 16301382

    OVERVIEW

    If you are tired of always having to hook up your camper or RV to a power grid, then Renogy has some solutions for you. The Renogy 100-watt kit is stocked with the items you need to make a solar installation on the rooftop of your RV, camper, or boat.

    KEY FEATURES

    • High modules conversion efficiency
    • Excellent performance in low light environments
    • Fully self powered off-grid systems
    • Suitable for commercial and power station property
    • 12V battery use


    SPECIFICATIONS

    Renogy 100W 12V Monocrystalline Solar Panel

    • Output Cables: 4.0 mm2 (0.006 in2), 800mm (31.5 in)
    • Connectors: MC4 Connectors
    • Maximum Power: 100W
    • Maximum System Voltage: 600V DC (UL)
    • Optimum Operating Voltage (Vmp): 18.9V
    • Open-Circuit Voltage (Voc): 22.5V
    • Optimum Operating Current (Imp): 5.29A
    • Short-Circuit Current (Isc): 5.75A
    • Dimensions: 47 X 21.3 X 1.4 In
    • Weight: 16.5lbs

    The Renogy Wanderer 30A Negative PWM Charge Controller

    • Nominal Voltage: 12 VDC
    • Rated Charge Current: 30A
    • Max. PV Input Voltage: 25 VDC
    • Self-Consumption: <10mA
    • High Voltage Disconnect: 16V
    • Over-Voltage Reconnect: 15V
    • Low Voltage Disconnect: 11.1V
    • Low Voltage Reconnect: 12.6V
    • Under Voltage Warning: 12V
    • Under Voltage Recover: 12.2V
    • Boost Voltage: Sealed: 14.4V; Flooded: 14.6V; Gel: 14.2V
    • Equalization Voltage: Sealed:14.6V; Flooded: 14.8V; Gel: NO
    • Charging Limit Voltage: 15V
    • Float Voltage: 13.8V
    • Equalize Duration: 120 min
    • Boost Duration: 120 min
    • Temperature Compensation: -3mV/-degreeC/2V
    • Working Temperature: -20-degreeF - 113-degreeF
    • Storage Temperature: -31-degreeF - 176-degreeF
    • Max Gauge Size:Up to 4AWG
    • Weight: 0.65 lbs.
    • Dimensions: 6.45 x 4.31 x 1.76 inches
    • Enclosure: IP20
      Notice:
    • For safety, do not exceed 80% of charge controller current rating. This rating should be based on total short-circuit current of the solar panels.

    Renogy 9in 12AWG Adaptor Kit - Connecting Solar Panels to Charge Controllers

    • Length: 9In
    • AWG: 12
    • Rating Voltage: 600/1000V
    • Temperature: -40 F ~ 194 F
    • Normal Cross Sectional Area of the Conductor (mm2): 4.0
    • Diameter of Wires in Conductor (mm): 3.02+/-0.08
    • Min. Wall Thickness of Insulation (mm): 0.78
    • Min. Wall Thickness of Sheath (mm): 0.97
    • Number of Wires in Conductor: 56
    • IP 65 Protection

    Specs

    Features
    Material Glass, Metal, Plastic
    Battery Charger Type Solar
    Battery Type Chargers
    Color Black
    • Verified Purchase

      This user earned $2.00 in rewards for writing this review.Learn More

      This is a simple, easy to setup solar system. I only have a refrigerated cooler and I charge my devices, with the addition of an inverter, which is not included. Neither is wire, is is a basic system with short pigtails on the panel. The connectors are there, you supply wire, battery(ies), and inverter. It appears that this system is upgradable, meaning that you can add more panels with the of a purchase a hub. I suggest getting a battery bank monitor, pretty cheap online.

    • It's on my RV and working great!
      Verified Purchase

      I'm in sunny Arizona I'm running everything I need on my small RV. my television, charging devices,running fans. It's working great. Apparently I bought the bundle kit and there were two wires that I needed to hook this up those wires come with the starter kit. Just a heads up. You will need to wires to go from the controller to your battery that are not in this kit

    • Love it!
      Verified Purchase

      This user earned $1.00 in rewards for writing this review.Learn More

      Great product ! I'm odering 2 more. Easy to install... Light weight . .. Powerful panels . ... The charge controller is simple and easy to use.

    • So far so good!
      Verified Purchase

      Kit just arrived yesterday. I was pleasantly surprised by the panel's sturdy construction and complete easy to understand instructions in the manual. I will be using unit as back-up charging for my RV house battery and will update my review after I install.

    • Great Product
      Verified Purchase

      This user earned $1.00 in rewards for writing this review.Learn More

      Filled the need I had to replace a panel that got damage in a tornado. Great improvement over my previous setup. Love the panel and the controller. Hopefully they will provide my needs in my shop.

    • Great prices
      Verified Purchase

      This user earned $2.00 in rewards for writing this review.Learn More

      Thanks for great shipping and providing a grand and inviting purchase . You guys rock so keep up the good work I will be ordering Moore soon

    • Verified Purchase

      This unit does more than I ever expected and we mounted it flat on south side with hinges, when we hinged it it made little difference

    • Verified Purchase

      Works great, love this product

    • 100w Renogy Kit
      Verified Purchase

      Cheap and fast delivery! Works great once set up with battery!

    • 100w solar panel
      Verified Purchase

      works great! I will be buying more in the future

    • Verified Purchase

      This user earned $2.00 in rewards for writing this review.Learn More

      This is a simple, easy to setup solar system. I only have a refrigerated cooler and I charge my devices, with the addition of an inverter, which is not included. Neither is wire, is is a basic system with short pigtails on the panel. The connectors are there, you supply wire, battery(ies), and inverter. It appears that this system is upgradable, meaning that you can add more panels with the of a purchase a hub. I suggest getting a battery bank monitor, pretty cheap online.

    • Verified Purchase

      This unit does more than I ever expected and we mounted it flat on south side with hinges, when we hinged it it made little difference

    • Verified Purchase

      Works great, love this product

    • Love it!
      Verified Purchase

      This user earned $1.00 in rewards for writing this review.Learn More

      Great product ! I'm odering 2 more. Easy to install... Light weight . .. Powerful panels . ... The charge controller is simple and easy to use.

    • Renogy bundle kit
      Verified Purchase

      Received on time and produces 14.3 volts

    • Absortion is good but connections?
      Verified Purchase

      Sun absortion is good but connections are VERY difficult to disconnect, nearly impossible without some type of tool to pry them apart.

    • 100w solar panel
      Verified Purchase

      works great! I will be buying more in the future

    • Great Product
      Verified Purchase

      This user earned $1.00 in rewards for writing this review.Learn More

      Filled the need I had to replace a panel that got damage in a tornado. Great improvement over my previous setup. Love the panel and the controller. Hopefully they will provide my needs in my shop.

    • Great prices
      Verified Purchase

      This user earned $2.00 in rewards for writing this review.Learn More

      Thanks for great shipping and providing a grand and inviting purchase . You guys rock so keep up the good work I will be ordering Moore soon

    • Fantastic Product awesome
      Verified Purchase

      Fantastic Product awesome

    • Verified Purchase

      This user earned $2.00 in rewards for writing this review.Learn More

      This is a simple, easy to setup solar system. I only have a refrigerated cooler and I charge my devices, with the addition of an inverter, which is not included. Neither is wire, is is a basic system with short pigtails on the panel. The connectors are there, you supply wire, battery(ies), and inverter. It appears that this system is upgradable, meaning that you can add more panels with the of a purchase a hub. I suggest getting a battery bank monitor, pretty cheap online.

    • Verified Purchase

      This unit does more than I ever expected and we mounted it flat on south side with hinges, when we hinged it it made little difference

    • Verified Purchase

      Works great, love this product

    • Love it!
      Verified Purchase

      This user earned $1.00 in rewards for writing this review.Learn More

      Great product ! I'm odering 2 more. Easy to install... Light weight . .. Powerful panels . ... The charge controller is simple and easy to use.

    • Renogy bundle kit
      Verified Purchase

      Received on time and produces 14.3 volts

    • Absortion is good but connections?
      Verified Purchase

      Sun absortion is good but connections are VERY difficult to disconnect, nearly impossible without some type of tool to pry them apart.

    • 100w solar panel
      Verified Purchase

      works great! I will be buying more in the future

    • Great Product
      Verified Purchase

      This user earned $1.00 in rewards for writing this review.Learn More

      Filled the need I had to replace a panel that got damage in a tornado. Great improvement over my previous setup. Love the panel and the controller. Hopefully they will provide my needs in my shop.

    • Great prices
      Verified Purchase

      This user earned $2.00 in rewards for writing this review.Learn More

      Thanks for great shipping and providing a grand and inviting purchase . You guys rock so keep up the good work I will be ordering Moore soon

    • Fantastic Product awesome
      Verified Purchase

      Fantastic Product awesome

    Questions & Answers

    • Q:

      "Can extra panels be joined together to increase the wattage output?"

      Have an Answer? Be the first to answer this question!
    • Q:

      "I have a 100W started kit will it charge 2 battery's wired in series. "

      • A:

        This is designed for a 12 volt battery.

    • Q:

      "Why did you choose this product?"

      • A:

        price hope its good thanks

      • A:

        A good package.

      • A:

        Good reviews. Good price!

      Read more Read less
    • Q:

      "will this kit discharge battery at night? what is/are connections to battery like? thanks"

      • A:

        Hello pavo36, thank you for your inquiry. Unfortunately, the information you have requested is currently unavailable. We will continue to try and answer this for you. You will receive an email notification once an answer is posted. Have a great day.

      • A:

        The controller keeps your battery from being overcharged. There is nothing in this system that would "drain" your battery, or cause it to discharge. You can use your cabin lights and ceiling exhaust type fans at night. The Solar panels will re-charge your battery when the sun hits them.
