Dimension Diagram:

Product Features:

• All Proflo products are factory tested before disbursement - 100% guaranteed to function flawlessly
• Constructed of durable, Easy-Care acrylic material with reinforced composites
• Fully covered under Proflo's 5-year bathtub warranty (5X industry standard)
• Whirlpool Massage bath therapy - powerful jets target areas where the body carries tension and relaxes the stress away

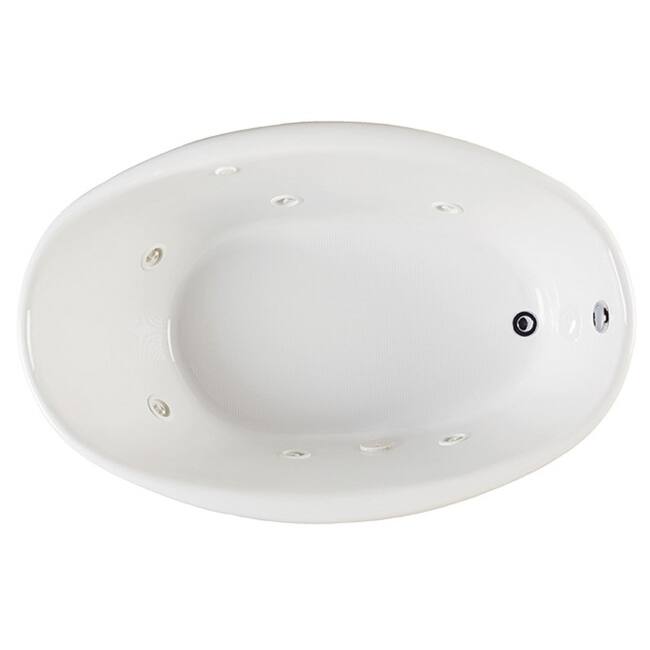

• This model features 6 color matched hydro-jets
• Heater blank, safety suction and silent air induction
• Air activated on/off switch

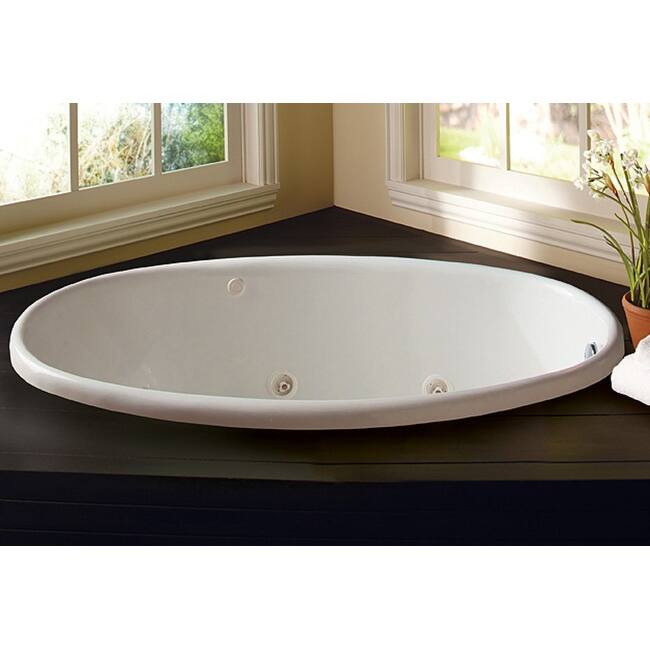

• Drop-in installation - tub is placed in pre-cut hole or structure and adheres on the top-side
• Pre-wired for simple plug-in installation
• Equipped with an integrated overflow drain assembly
• A textured slip-resistant bottom lends to worry free movement about the tub

The Proflo Advantage:

• Whirlpool Massage Therapy: Perfect for relaxing away the worries and tension of a stressful day; these tubs feature powerful jets that penetrate deep into muscle tissue for a whole body hydro-massage. The jets are strategically placed within the basin to target traditional problem areas; additionally they are color matched to the tub and rest flush against the tub wall to maximize user comfort.
• Easy-Care Acrylic: Keeping a bathtub clean is a constant struggle, luckily Proflo's innovative acrylic blend provides an extremely un-porous surface that does not allow dirt and scum to adhere. A simple spray down or light wipe keeps your tub looking good as new.

Product Specifications:

• Overall Height: 20-1/2" (measured from bottom of tub base to the top of the rim)
• Overall Length: 58" (measured from left outer rim to the right outer rim)
• Overall Width: 38" (measured from the back outer rim to the front outer rim)
• Basin Length (Bottom): 42" (measured from left to right along the bottom of the basin)
• Basin Width (Bottom): 24" (measured back to front along the bottom of the basin)
• Maximum Water Capacity: 50 gallons (40 gallon operating capacity)
• Drain Location: Reversible (left or right)
• High efficiency 5.6 amp / 0.8 HP motor
• Requires a single 120V / 20 amp GFCI circuit
• Compliances and Standards: APMO: PS32-84, UL listing: 27E7, ANSI: Z124.1-95, ASME: A112.19.8M-87R(96) and ASME: A112.19.7M-95
