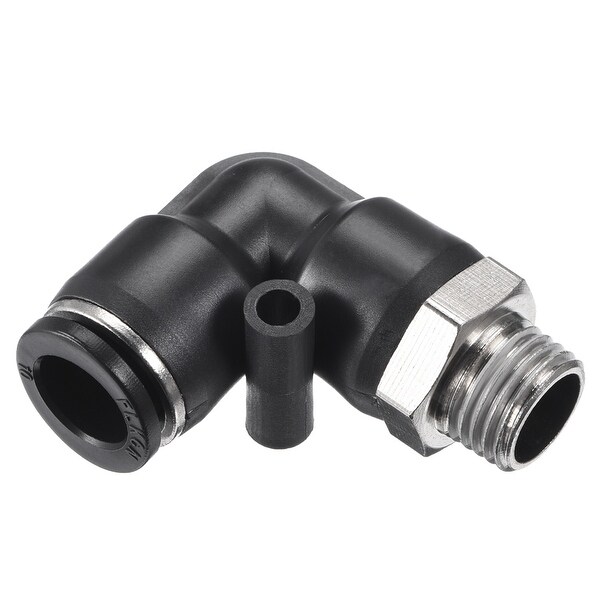

PL10-02 Push to Connect Tube Fitting, 25/64" Tube OD x 1/4" G Thread 4pcs - 25/64" OD x 1/4" G

Pricing and Options

PL10-02 Push to Connect Tube Fitting, 25/64" Tube OD x 1/4" G Thread 4pcs - 25/64" OD x 1/4" G

Brand Name

by Unique Bargainssold and shipped by

Price Information


Financing Option

Pay it off in up to 24 months with the Overstock Store Credit Card. Learn More

Delivery Estimate Summary

Want a shipping estimate?

Option Selection

Free Shipping* & 5% Rewards
Start 30 day free trial. $19.95/year.

Add to Cart Button

Product Information


Product Features:

Product Name : Connect Fitting

Model : PL10-02

Net Weight : 91g

Color : Black

Material : Plastic,Metal

Male Thread Type : G Type

Type: 90 Deg Swivel Elbow Male Connector

Tube and Thread Size :25/64" Tube OD x 1/4" Male G Thread (10mm x 12.7mm)

Operating Pressure : 0-1MPa

Guaranteed pressure resistance : 1.5MPa

Operating temperature£º-10 - 60 Degree Celsius

Dimension : 42mm x 35mm x 18mm / 1.65-inch x 1.38-inch x 0.71-inch (L x W x H)


Package Content:

4pcs x Connect Fitting



1.Quick and simple installation,designed for using to connect with polyethylene, nylon and PU tubing.

2.Push-to-connect tube connection on one end and male G threads on the other end.

3.A good release cap can withstand greater and stronger pressure without tripping.

4.Have flexibility, abrasion resistance, light weight, and resistance to crushing and cracking,Compressive and corrosion resistant, good sealing performance and long service life.

5.Easy to install, insert the plastic tube, the cap can be rotated freely, but its rotation is only used when the angle is wrong when the joint is installed.

6.The small tube is use for fixed.



1.Cut the pipe flat, no slope

2.When inserting the pipe into the joint, it must be inserted into the end, otherwise there may be a leak.

3.After plugging in, try to pull the tube, if you can't pull it out, it means it has been connected.

4.When loosening the tube, first confirm that there is no pressure in the tube, and then evenly press the end cap to the bottom.

While we aim to supply accurate product information, it is sourced by manufacturers, suppliers and marketplace sellers, and has not been provided by Overstock.
Country of Origin: China
Item #: 32741641
