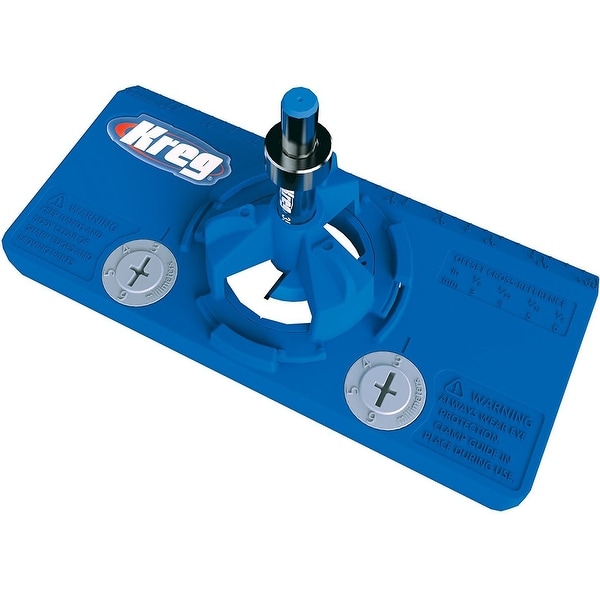

Kreg Concealed Hinge Jig - Blue

Pricing and Options

Kreg Concealed Hinge Jig - Blue

sold and shipped by

Price Information

Today$34.99

Financing Option

Pay it off in up to 24 months with the Overstock Store Credit Card. Learn More

Delivery Estimate Summary

Want a shipping estimate?

Option Selection

Free Shipping* & 5% Rewards
Start 30 day free trial. $19.95/year.

Add to Cart Button

Product Information

Details

The Kreg Concealed Hinge Jig takes the guesswork out of installing cabinet doors that use concealed hinges. This economical, simple-to-use jig ensures accurate alignment of hinges, ensuring that you can install doors that fit great and work well. Plus, the Concealed Hinge Jig works with an ordinary drill and the included carbide tipped drill bit. This is a valuable piece to add to your collection of Kreg tools.

Easy to Use

The Concealed Hinge Jig allows you to drill cup holes for concealed cabinet door hinges (sometimes called "Euro hinges" or European hinges) using just a drill. The door hinge jig positions an included carbide-tipped bit exactly at the proper position and offset, and it drills to the ideal depth every time thanks to a depth stop collar. This Euro hinge jig is intuitive to use, and it ensures that you can mount cabinet doors that fit well and work properly.

Perfect for Mounting

Concealed hinges are great for mounting cabinet doors because they stay out of sight, they're adjustable, and they work very well. Mounting them, though, requires drilling a large hole at a very specific position and depth. The Kreg Concealed Hinge Jig takes the guesswork out of drilling those holes and allows you to do it with nothing more than a drill and the carbide-tipped hinge drill bit that comes with the Kreg jig.

Note: A 1/16" bit is required to drill for hinge-mounting screws. Not included.

High Quality Construction

The Kreg Hinge Jig consists of a glass-filled nylon base with a hole for inserting a drill guide. Indexing cams ensure that the jig positions the bit to drill a hole at the required offset - which is dictated by each hinge - and a built-in stop collar ensures that the cup depth is correct every time. There are even holes that you can use to guide a bit for hinge screw holes. The Concealed Hinge Jig comes with a high-quality, carbide tipped bit to ensure great results.

Reliable and Consistent

The Concealed Hinge Jig is designed to be easy for beginners to use but robust enough for professionals. Just pick out your hinges, look up a few basic mounting instructions that come with them, and then set up the hinge jig by adjusting a pair of built-in cams. After that, you're set to drill hinge cup holes using any ordinary drill. Whether you're installing one cabinet door or making doors for an entire kitchen, the Concealed Hinge Jig provides reliable, consistent results.

  • Built-in indexing tabs provide accurate hinge positioning
  • Repeatable results with built-in measuring scales
  • Bit guide and stop collar for reliable drilling
  • Easy to use with any drill and without special tools
  • Adjustable cams ensure proper hinge offset
  • Comes with durable carbide-tipped drill bit
  • Strong and lightweight materials for easy handling

IN THE BOX

  • Kreg Concealed Hinge Jig
  • Jig base with index cams
  • Drill guide
  • 35mm carbide-tipped drill bit
  • Stop collar with Hex wrench
  • Owner's manual



While we aim to supply accurate product information, it is sourced by manufacturers, suppliers and marketplace sellers, and has not been provided by Overstock.
Country of Origin: United States

Specifications

Item #
31369323
Model Number
KHI-HINGE
