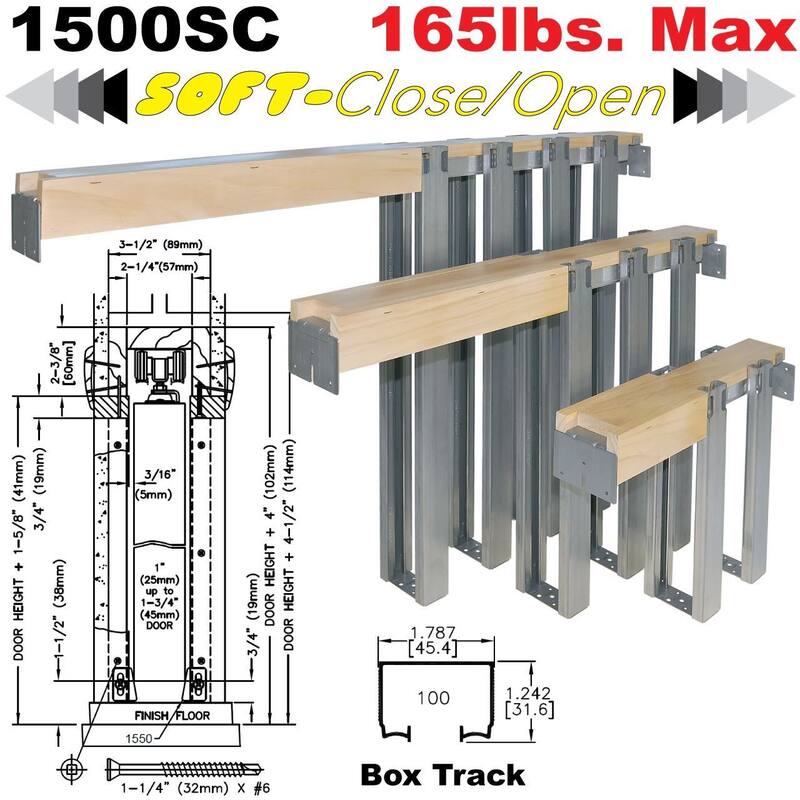

The 1500SC Series Pocket Door Frame is designed to soft-open and soft-close heavy solid core doors weighing up to 165lbs. Smooth ball bearing hanger wheels combined with soft-closing door operation make the 1500SC one of the finest pocket door installations available. The 1500SC is designed to be quickly installed into prepared 2 x 4 timber frame stud walls or 4" steel framed stud walls when using the 1574PLBG 4" Steel Stud Adapter Kit.

Features:

• Complete kit — all necessary components included
• Ready to install in 2" x 4" wall opening
• The 1500SC Frame Kit is packaged for easy transport and fast installation for either single or converging (2) door applications and all frame sizes can be cut down to accommodate custom size doors.
• The 1500SC includes 2 soft-close mechanisms which makes a 28" or wider door soft operate in both directions of travel. Minimum door width for bidirectional soft door operation is 28".For doors under 28" wide (20" to 28") only single direction soft operation is possible.
• Order (1) frame kit per door

Specifications:

• Height: 84-1/2"
• Width: 32"
• Depth: 3-1/2"
• Door Thickness: 1" - 1-3/4"
• Standard Door Size: 32" W x 80" H
• Wall Construction: 2" x 4"
• Material: Aluminum, Steel, Wood

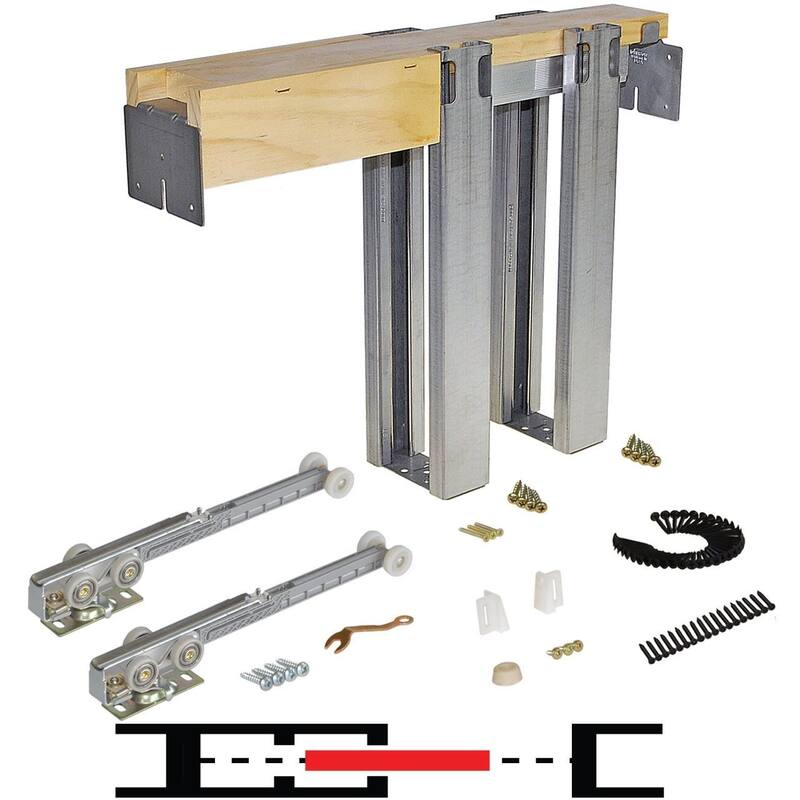

1500 SC Frame Kit Contents Included with Purchase:

HEADER (Factory Assembled)

• 1- 100 Track Length

• 1-512080 Passage End Jamb Bracket

• 1-511592 Pocket End Jamb Bracket

• 4- Split Stud Lengths

• 2-512085 Split Stud Floor Brackets

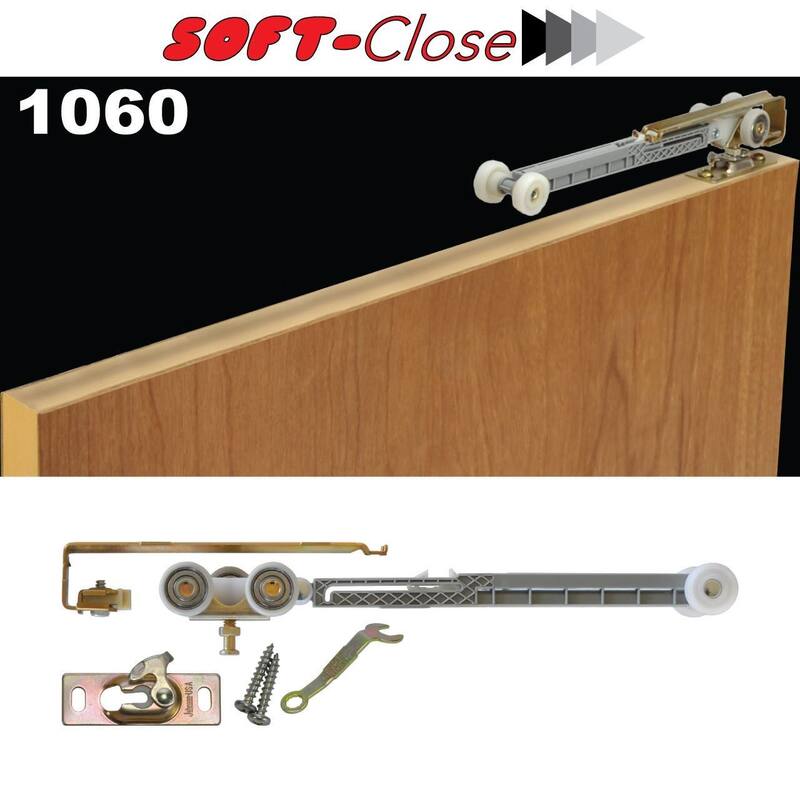

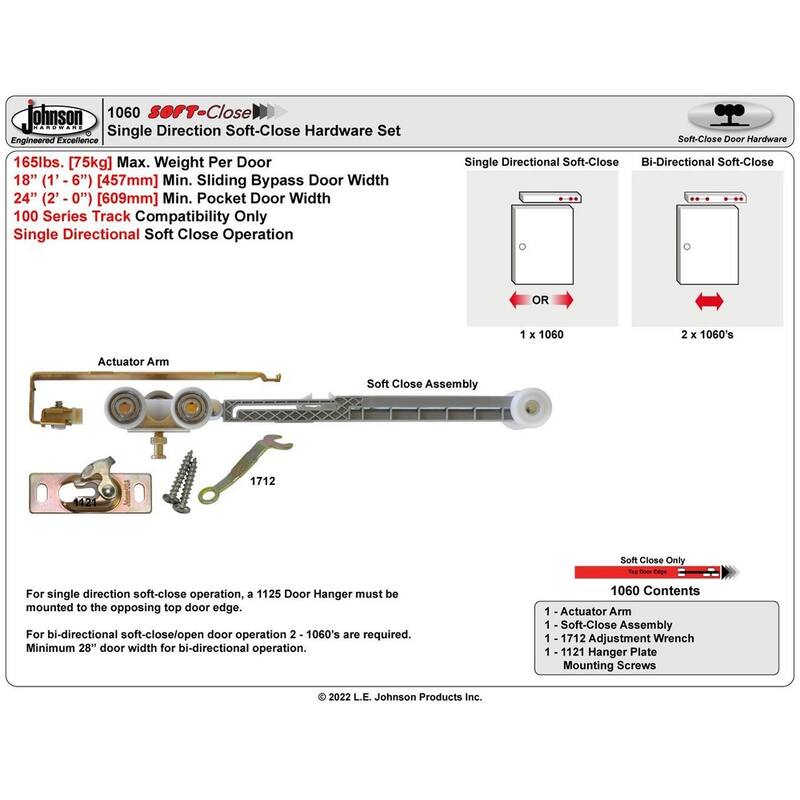

• 2-1060 Soft-Close Hangers

• 1-1550 Pocket Door Guide

• 1-1513 Door Bumper

• 1-1712 Adjustment Wrench

• Hardware Mounting Screws
