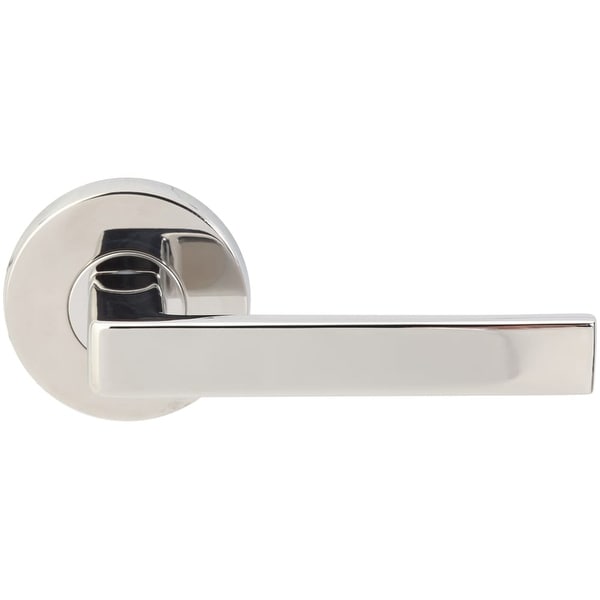

INOX RA345L461 Tokyo Passage Door Lever Set with 2-3/8" Backset, RA Series Round Rose, and TL4 28 Degree Latch

Features:

• BHMA Grade 2
• 304 grade ANSI certified Stainless Steel
• Lever is Reversible For Left or Right Handing
• Quick and easy installation
• Standard square corner latch faceplate
• Limited Lifetime Mechanical and Finish Warranty
• Compliant With The Americans with Disabilities Act (ADA)
• Concealed screws for a beautiful finished look

Function:

 Passage Function: Passage leversets have no locking function and are free turning on both sides. These are perfect for a hallway or closet where no locking is necessary.

Specifications:

• Lever Length: 4.9375"
• Projection: 1.75"
• Door Thickness: 1-3/8" to 1-3/4"
• Backset: 2-3/8"
• Cross Bore: 2-1/8"
• Edge Bore: 1"
• Rose Diameter: 2.5"
• Handing: Reversible Left or Right
• Handle Design: 345 Tokyo
• Latch Faceplate: Square Corner
• 28 Degree Latch: Yes
• Concealed Screws: Yes
• Material: Stainless Steel
• Manufacturer Warranty: Limited Lifetime

• RA345L461 (This Model): Passage - 2-3/8" Backset
• RA345L462: Privacy - 2-3/8" Backset
• RA345L471: Passage - 2-3/4" Backset
• RA345L472: Privacy - 2-3/4" Backset
• RA345DL: Left Handed Single Dummy
• RA345DR: Right Handed Single Dummy
