Hettich HT9073655 Sensys 1/8" Inset Concealed Euro Cabinet Door Hinge - Overstock - 44002663

Hettich HT9073655 Sensys 1/8" Inset Concealed Euro Cabinet Door Hinge - Overstock - 44002663

Details

ITEM#: 46977112

Features:

Includes a single (1) hinge in each order
Constructed of high quality steel and zinc for durability and dependability
Fix Fast installation securely fastens hinges to material
Self closing function will allow your cabinet door to close firmly and securely
3-way adjustable hinge for easy and customizable installation
Designed for a 110 degree opening angle

Specifications:

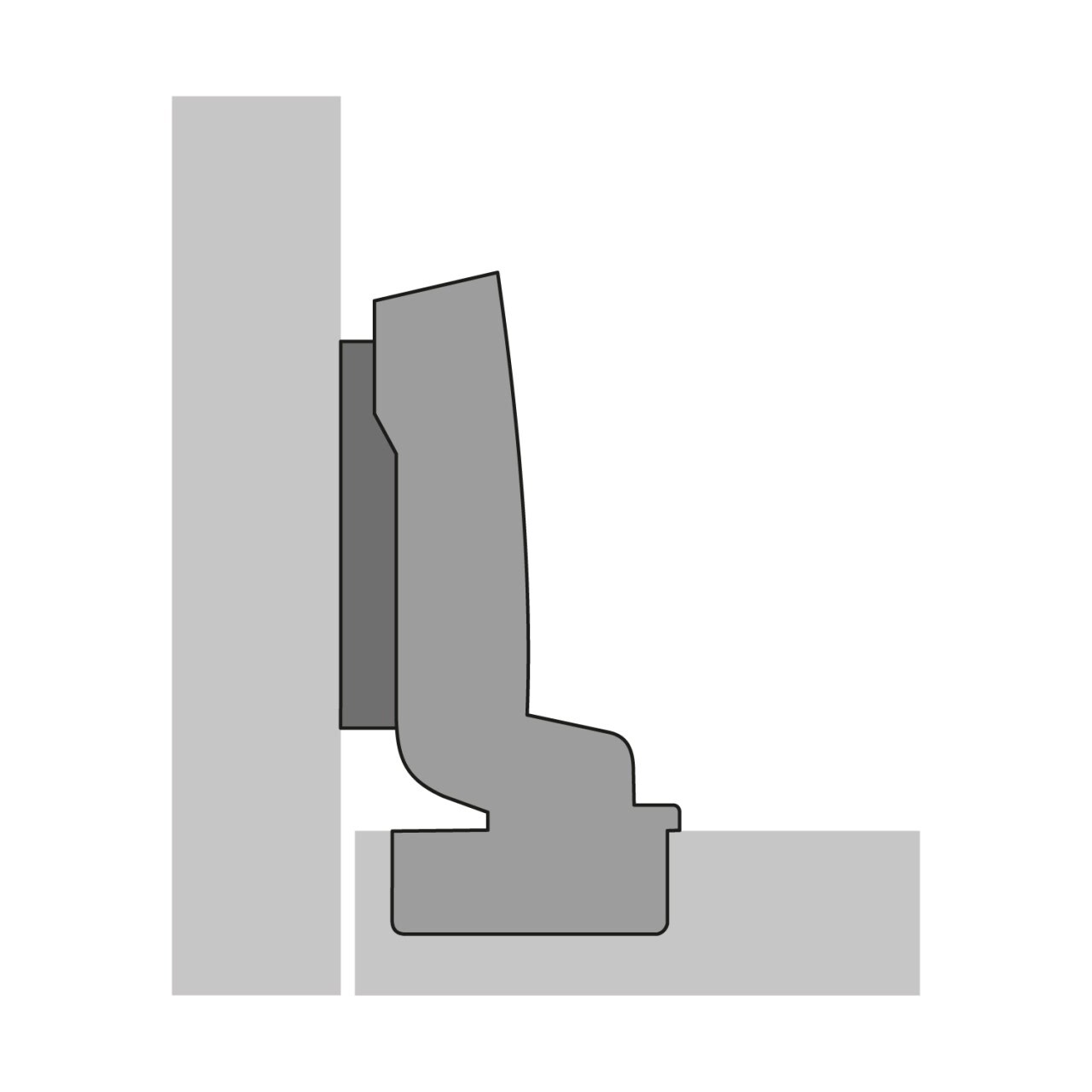

Hinge Mount: Full Inset
Opening Angle: 110
Material: Steel, Zinc
Installation Type: Clip On, Screw

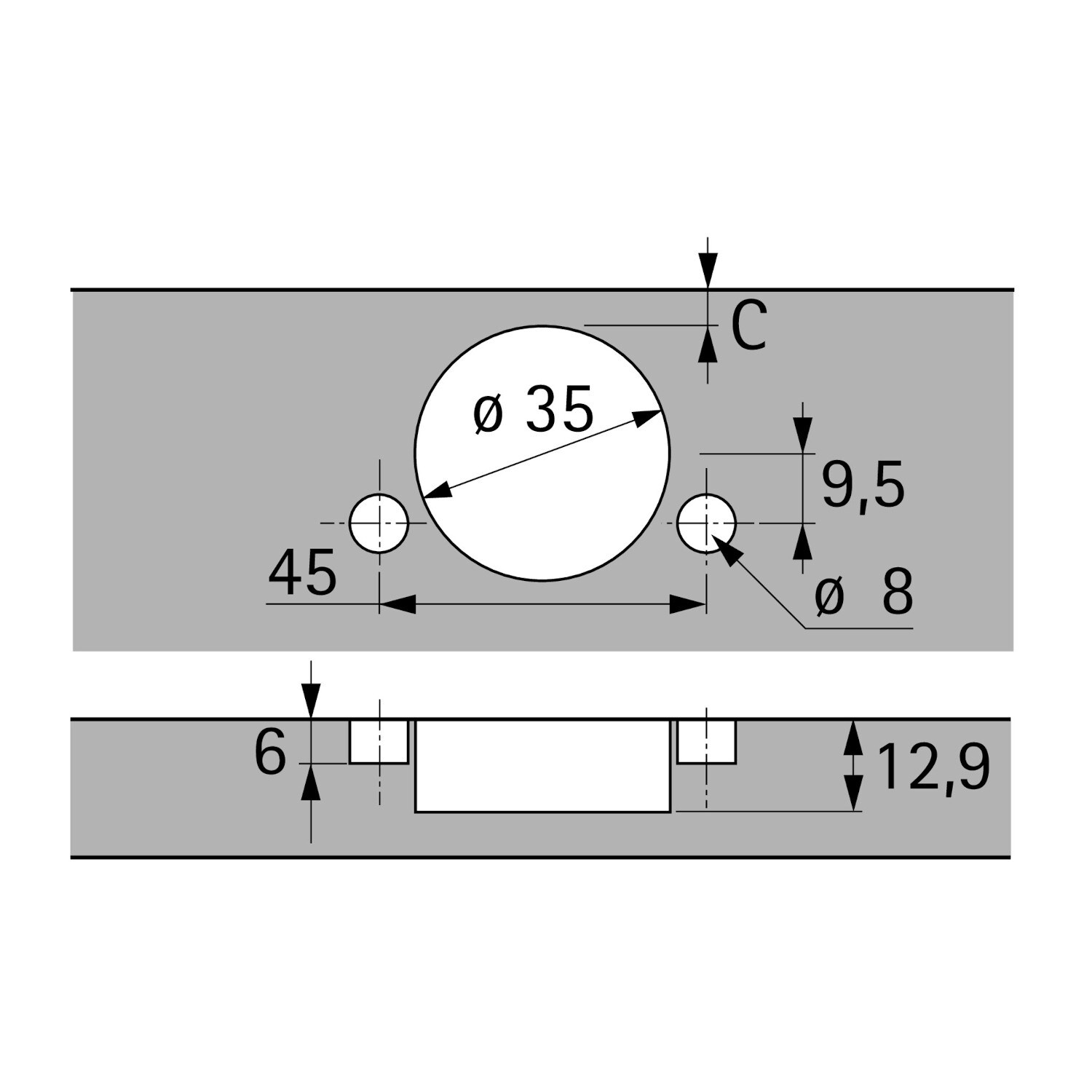

Cup Diameter: 1-3/8"
Bore Distance: 3/16"
Cup Depth: 1/2"
Mount Centers: 1-11/16"

Details

ITEM#: 46977112

Features:

Includes a single (1) hinge in each order
Constructed of high quality steel and zinc for durability and dependability
Fix Fast installation securely fastens hinges to material
Self closing function will allow your cabinet door to close firmly and securely
3-way adjustable hinge for easy and customizable installation
Designed for a 110 degree opening angle

Specifications:

Hinge Mount: Full Inset
Opening Angle: 110
Material: Steel, Zinc
Installation Type: Clip On, Screw
Cup Diameter: 1-3/8"
Bore Distance: 3/16"
Cup Depth: 1/2"
Mount Centers: 1-11/16"

Specifications
Color	Grey
Model Number	9 073 655
Country of Origin	China
