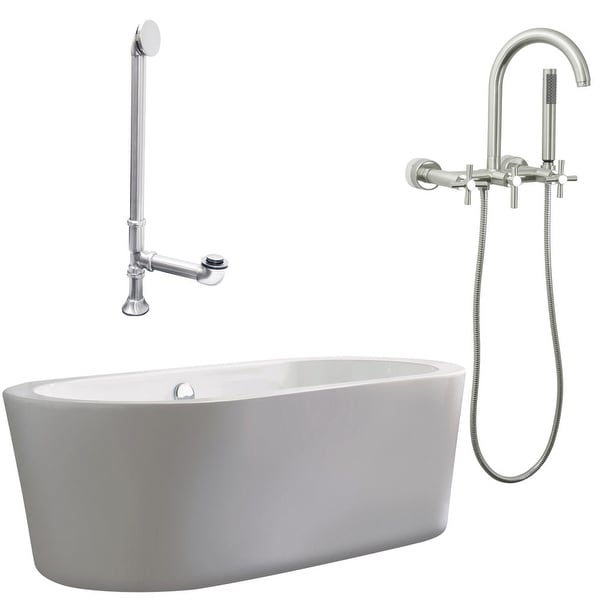

Giagni LV1-C Ventura 67" Free Standing Soaking Tub Package

Package Includes:

• LCAT-167: Ventura 67" free standing soaking tub
• CWTF-C: Wall mounted tub filler with metal cross handles
• C-TDRN: Toe-tap drain assembly with overflow

Giagni LCAT-167 Tub Features:

• Covered under Giagni's 25 year limited warranty for tub fixtures
• Tub constructed of high-gloss, stain resistant acrylic with a core of stone resin composite to ensure durability and superior heat retention
• Soaking tub - provides the user with a soothing and relaxing bathing experience
• The Ventura Collection features a spacious bathing well with ergonomic backrests and bold, cutting-edge design lines
• Free standing installation is ideal for rooms with limited space and offers a striking design element
• Equipped with an overflow - permits the user to enjoy a deep soak without worrying about spillage
• Drain and overflow assembly included
• Complete installation - tub feet/base not required for this model

Giagni CWTF-C Faucet Features:

• Covered under Giagni's limited lifetime warranty
• Constructed of solid brass, ensuring durability and dependability
• Premier finishes resist corrosion and tarnishing through everyday use
• Includes a hand shower - ideal for spraying down the tub or rinsing off after a bath
• Wall-mounted installation - faucet mounts to the wall and extends out to the tub fixture
• Handles operate on 1/4 turn valves, with an integral diverter handle on the faucet body
• Features an extra secure mounting assembly
• All hardware needed for installation is included

Giagni LCAT-167 Tub Specifications:

• Overall Height: 23" (top to bottom)
• Overall Length: 67" (left to right)
• Overall Width: 31-4/5" (front to back)
• Basin Length: 39-3/10" (left to right of bottom basin)
• Basin Width: 16-1/2" (front to back of bottom basin)
• Basin Depth: 16-9/10" (bottom of basin to tub rim)
• Maximum Water Capacity: 61 gallons
• Water Depth: 13-4/5"
• Drain Connection: .5"

Giagni CWTF-C Faucet Specifications:

• Spout Height: 6-2/5" (measured from base to spout outlet)
• Spout Reach: 7-7/10" (measured from center of faucet base to center of spout outlet)
• Hand Shower Flow Rate: 2-1/2 GPM (gallons per minute)
• Tub Spout Flow Rate: 9.3 GPM (gallons per minute)
• 2 holes required for installation
• Faucet Centers (Distance Between Handle Installation Holes): 8"
• Complete with rough in valve system

Variations:

• LV1-C: This model
• LV1: This model with lever handles
• LV2-C: This model with floor mounted faucet
