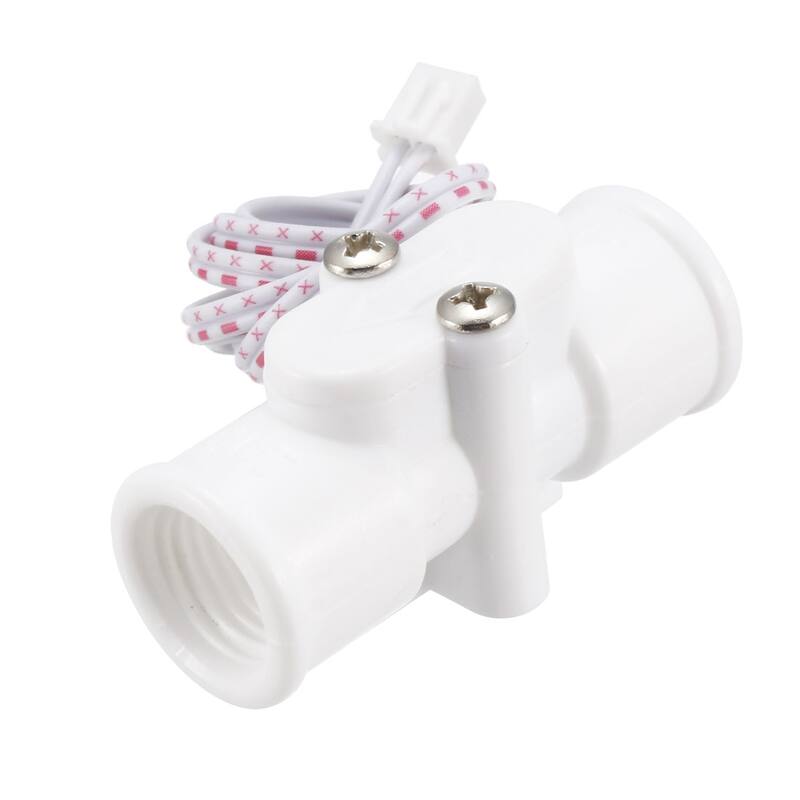

G1/4 Hall Effect Liquid Water Flow Switch Flowmeter Counter 1-25L/min - White
G1/4 Hall Effect Liquid Water Flow Switch Flowmeter Counter 1-25L/min - White
Water Flow Switch adopts a Magnetic Reed Switch, G1/4 female threaded ports each end.
The state of liquid in the pipeline, flowing or stationary, is output in the form of electric switch signal.
Suitable for replacing water purifier' filter element where without tap water.
Specifications:
Product Name: Water Flow Switch
Material: Plastic(Shell)
Size: 49mm x 20mm x 26mm / 1.93" x 0.79" x 1.02"(L*W*H)
Cable Length: 480mm / 18.9"
Working Voltage: DC 0-100V
Maximum switch current: 100mA
Rated Voltage: DC 5V
Max Current: 10mA(DC 5V)
Maximum water pressure: 1.5MPa
Flow range: 1-25L/min
Female Thread Diameter: G1/4
Ingress Protection Rating: IP65
Color: White
Net Weight: 19g
Package Included:
1 x Water Flow Switch
Note:
1. Installed in accordance with flow direction in the product, otherwise there is no signal output.
2. A filter screen must be installed at the inlet of the switch, in order to avoid particles and debris entering the switch.
