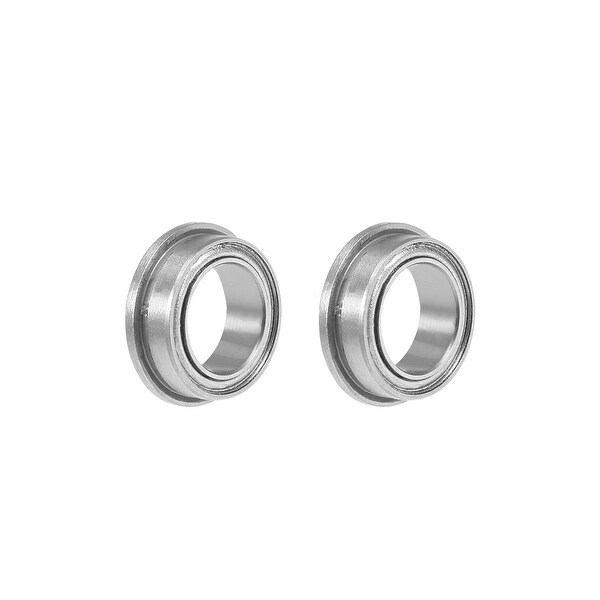

FR168ZZ Flange Ball Bearing 1/4"x3/8"x1/8" Double Shielded Chrome Bearings 2pcs - 2 Pack - FR168ZZ (1/4"x3/8"x1/8")

Pricing and Options

FR168ZZ Flange Ball Bearing 1/4"x3/8"x1/8" Double Shielded Chrome Bearings 2pcs - 2 Pack - FR168ZZ (1/4"x3/8"x1/8")

Brand Name

by Unique Bargainssold and shipped by

Price Information

 $17.09
Sale$9.10
Sale ends in: 1 day 18 hr

Financing Option

Pay it off in up to 24 months with the Overstock Store Credit Card. Learn More

Delivery Estimate Summary

Want a shipping estimate?

Option Selection

ONLY 2 LEFT!
Free Shipping* & 5% Rewards
Start 30 day free trial. $19.95/year.

Add to Cart Button

Product Information

Details

NOTE£º

Please refer to the picture and select right type of bearings before your order (Sealed or Shield on BOTH or SINGLE side of the bearing). Suffix on the bearing just for differentiating between Sealed and Shield type of bearing. It would not affect the use of our product.





Description:

  • Single-row, pre-lubricated, normal accuracy.
  • Deep Groove Ball Bearings are one of the most widely used rolling bearings. They are used to accommodate radial and axial loads in both directions.
  • With small friction and high-limit speed, Ball Bearings are cost-effective and require little maintenance.
  • Chromium Steel (GCr15) made with heat treating, provides high and uniform hardness, good wear resistance, and high contact fatigue performance.
  • Suitable for all kinds of industrial equipment, micro motor, small rotary motor, office equipment and so on.





Selection Guide:

Shields (Designation Suffix Z/ZZ) - High speed. Protect from dirt and debris.

Sealed (Designation Suffix RS/2RS) - Made of sheet steel reinforced NBR (oil- and liquid-resistant). Lower limit speed than Shield Bearings.





Specification:

Model: FR168ZZ

Shield Type: Double Shielded

Inner Race/Outer Race Meterial: Chrome Steel (GCr15)

Cage Material: Stamping Steel

Inner Diameter (d): 1/4" / 6.35mm

Outer Diameter (D): 3/8" / 9.525mm

Thickness (B): 1/8" / 3.175mm

Flange Dia.: 27/64" / 10.719mm

Flange Thickness: 0.036" / 0.914mm

Dynamic Load Rating (Cr): 0.071kN

Static Load Rating (Cor): 0.031kN

Accuracy Class: P0 (ABEC-1)

Noise Level: Z1

Number of Pack: 2 Pcs




While we aim to supply accurate product information, it is sourced by manufacturers, suppliers and marketplace sellers, and has not been provided by Overstock.
Country of Origin: China
Item #: 32733631
