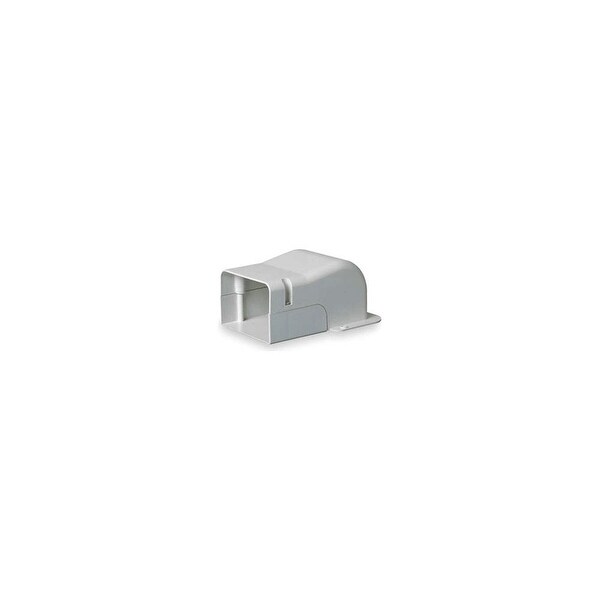

SpeediChannel Collection 6" SpeediChannel Line Set Cover Wall Penetration

Wall sleeves and penetration covers are used to transition from the SpeediChannel™ system to a through wall penetration. The wall sleeve creates a neat hole through the wall, and the line set is covered by the wall cover. DiversiTech’s wall covers are designed to allow for easy installation — even after the line set has been installed. A unique hooking and fastening arrangement allows for quick and easy installation. Each wall cover is individually packed, and is furnished complete with stainless steel screws to attach the wall cover to the base. Three screws (customer provided) are needed to fasten the wall cover to whatever type of wall construction the system is being installed on.

DiversiTech SpeediChannel™ is an innovative channel system used to cover air conditioning line sets. The two part system has a base and a cover. The base is fastened to a wall or ceiling, then a clever little plastic clip (SpeediClip™) snaps into a channel already molded into the base. Then, using standard cable ties, the line set, cables, control wires, and/or condensate drain line are fastened in place. The cover then snaps simply on top of the base. Manufactured from rigid PVC, the SpeediChannel™ system is a natural color that is a very close match to the typical mini-split condensing unit case. However, the Speedi-Channel™ system can be painted as desired to match any wall color. The PVC used in the SpeediChannel™ system is resistant to UV light, and is UL rated.

Features:

  • SpeediClip slides into place allowing single person installation
  • Paintable for custom appearance
  • Natural color blends with almost any construction aesthetic
  • Flat bottom channel sets on surfaces and corners better
  • Stainless steel screws will not rust
  • Aesthetically pleasing flat escutcheon option
  • For 6" channel width

Specifications:

  • Mini Split System with 3/8" insulation:
  • Liquid Line: 1 x 1/4" + 2 x 3/8"
  • Suction Line: 1 x 1/2" + 2 x 5/8"
  • Drain Hose: 3 x 3/4" OD
  • Conventional Split System with 3/8" insulation on suction line:
  • Liquid Line: 3/8"
  • Suction Line: 1-1/8"
  • Drain Hose: 3/4" PVC
  • Meets UL 94V.-0 Fire rating
  • Temperature: -4°F to 140°F
  • Tested to over 2,000 hours
  • DiversiTech is committed to do what it takes to deliver world class service and products. They are proud to provide products that they believe will outshine the competition in convenience and innovation.




While we aim to supply accurate product information, it is sourced by manufacturers, suppliers and marketplace sellers, and has not been provided by Overstock.
Country of Origin: China
