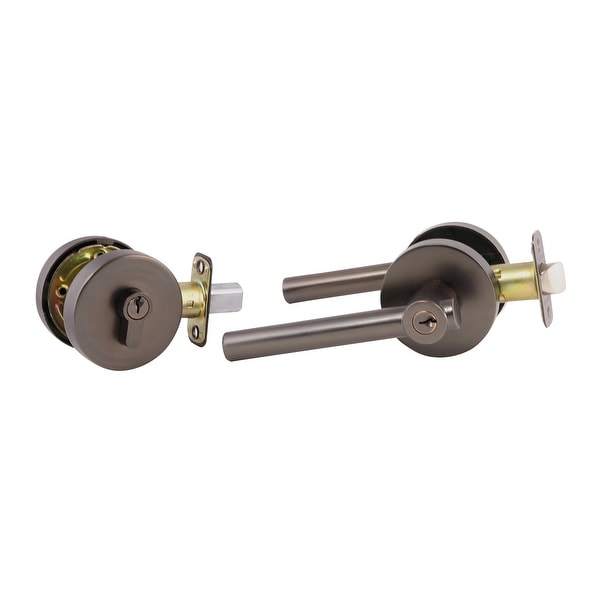

Design House 580936 Eastport Single Cylinder Keyed Entry Door Lever Set With Single Cylinder Deadbolt Combo Pack

Keyed Entry (Single Cylinder) Function: Single cylinder keyed entry door hardware is locked and unlocked from the exterior using a key and can be locked and unlocked from the interior using the locking mechanism. Perfect for securing entrances, side doors, and anywhere else that needs a bit more security.

Features:

• BHMA rating of security grade 3
• Steel and zinc construction combine durability and affordability
• Reversible handing fits both left and right oriented doors
• Installs easily into most standard prep doors
• Nickel plated latch bolt for increased security
• 5 year finish and limited lifetime mechanical warranty included
• Not ADA compliant

Specifications:

• Backset: Adjustable 2-3/8" or 2-3/4"
• Cross Bore: 2-1/8"
• Edge Bore: 1"
• Door Thickness: 1-3/8" to 1-3/4"
• Handing: Left, Right, Reversible
• Lever Length: 4-5/8"
• Projection: 2-3/8"
• Rose Diameter: 2-1/2"
• Material: Steel, Zinc
• Latch Faceplate: Round Corner
• Cylinder: 5 Pin KW1

• 580902: Brushed Bronze Passage Leverset
• 580910: Brushed Bronze Privacy Leverset
• 580928: Brushed Bronze Keyed Entry Leverset
• 580977: Satin Nickel Keyed Entry Leverset
• 580936 (This Model): Brushed Bronze Keyed Entry Leverset, Deadbolt Combo
• 580985: Satin Nickel Keyed Entry Leverset, Deadbolt Combo
• 581918: Brushed Bronze Keyed Entry Handleset
• 581926: Satin Nickel Keyed Entry Handleset
