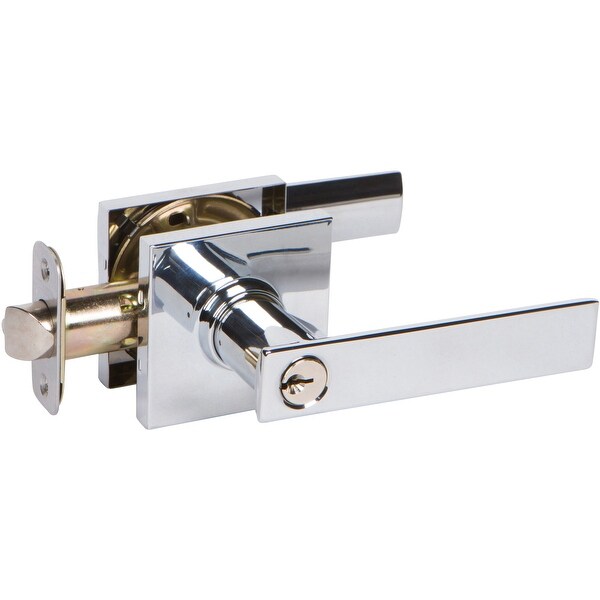

Delaney 500-HK Contemporary Single Cylinder Keyed Entry Door Lever Set with HK Lever and Square Rose

Keyed Entry (Single Cylinder) Function: Single cylinder keyed entry door hardware is locked and unlocked from the exterior using a key and can be locked and unlocked from the interior using the locking mechanism. Perfect for securing entrances, side doors, and anywhere else that needs a bit more security.

Features:

• Durable construction ensuring lasting use and beauty
• Reversible handing installs on left or right handed doors
• Installs on doors with 1-3/8" to 1-3/4" thickness
• Includes a round corner latch faceplate
• Covered under a 10 Year Mechanical and 5 Year Finish Warranty
• All necessary mounting hardware included for simple installation

Specifications:

• Backset: Adjustable 2-3/8" or 2-3/4"
• Cross Bore: 2-1/8"
• Edge Bore: 1"
• Door Thickness: 1-3/8" to 1-3/4"
• Handing: Reversible Left or Right
• Trim Height: 2-9/16"
• Trim Width: 2-9/16"
• Handle Length: 4-3/16"
• Handle Projection: 2-5/16
• Cylinder: 5 Pin KW1

• 515-HK: Single Dummy Lever
• 501-HK: Passage Door Leverset
• 502-HK: Privacy Door Leverset
• 500-HK (This Model): Single Cylinder Keyed Entry Leverset
