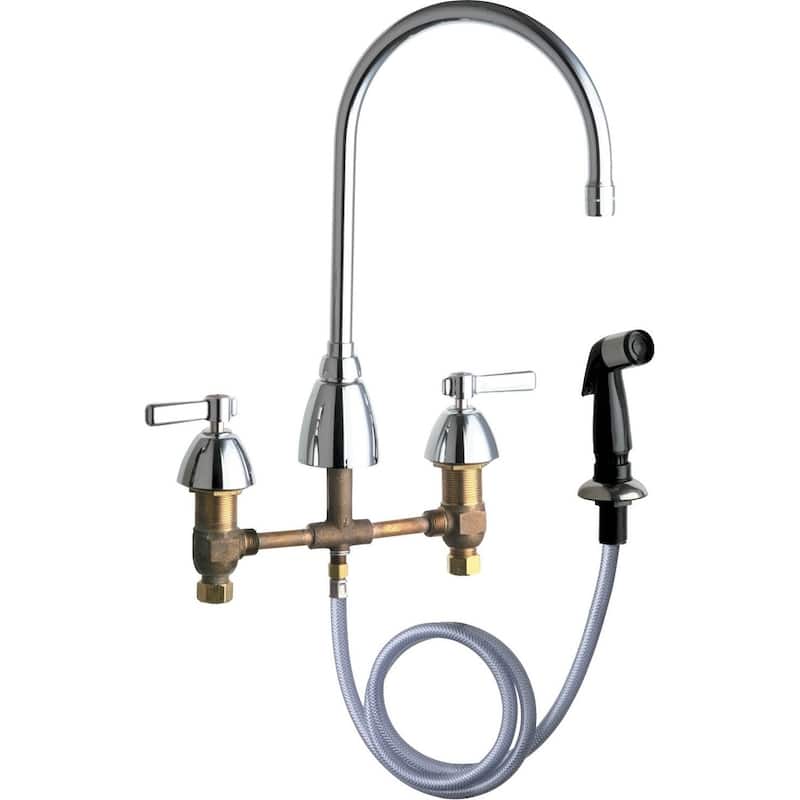

Chicago Faucets 200-AGN8AE35AB Features:

• Faucet body constructed of brass
• Covered under Chicago Faucet's limited lifetime warranty for faucet/ 5 year limited warranty for cartridge/ 1 year limited warranty for finish
• Premier finishing process - finishes will resist corrosion and tarnishing through everday use
• Double handle operation - handles rest on 1/4 turn valves
• Side spray with 48" hose aids with a variety of kitchen tasks
• Spout swivels 360-degrees providing greater access to more areas of the sink
• High-arch gooseneck spout design provides optimal room under the faucet for any size task
• ADA compliant - complies with the standards set forth by the Americans with Disabilities Act for faucets
• 1/2" NPSM supply inlets and coupling nut for 3/8" or 1/2" flexible riser

Chicago Faucets 200-AGN8AE35AB Technologies / Benefits:

• ECAST: Durable brass construction with total lead content equal to or less than 0.25% by weighted average
• Quaturn: Rebuildable compression cartridge opens and closes 90�, closes with water pressure and features a square tapered stem

Chicago Faucets 200-AGN8AE35AB Specifications:

• Overall Height: 13-1/8" (measured from counter top to highest part of faucet)
• Spout Height: 7-1/2" (measured from counter top to spout outlet)
• Spout Reach: 8" (measured from center of faucet base to center of spout outlet)
• Number of Holes Required for Installation: 4
• Faucet Centers (Distance Between Handle Installation Holes): 8"
• Flow Rate: 1.5 GPM (gallons-per-minute)
• Maximum Deck Thickness: 1-1/8"
• Two handles included with faucet
• Designed for use with standard U.S. plumbing connections
• All hardware needed for mounting is included with faucet

Codes and Compliances:

• ASME A112.18.1/CSA B125.1
• Certified to NSF/ANSI 61, Section 9 by CSA
• ADA ANSI/ICC A117.1
