Broan LP510RSL Lo-Profile DC 100 CFM 1.2 Sone Ceiling Mounted Humidity
Broan LP510RSL Lo-Profile DC 100 CFM 1.2 Sone Ceiling Mounted Humidity
The Broan® Lo-Profile fan is their solution for installations where conventional ventilation simply won't fit. The Lo-Profile fan is narrow enough to be installed in a wall between 2x4 studs, such as multi-family applications. This fan is the only exhaust ventilation fan on the market that features selectable CFM, between 50, 80, and 100 CFM and pre-installed continuous run that allows a user to set their low-speed mode between 30 and 100 CFM. Features TRUE CFM™ which when installed the fan will not lose CFM performance regardless of how complicated the ducting. The built-in humidity sensor automatically turns the fan to high speed when rapid increases in humidity are detected
Meets ASHRAE 62.2 and is Energy Star® certified.
Features:
- 100 CFM provides powerful ventilation to remove moisture and reduce the risk of mold or mildew in most full baths.
- 1.2 audible sones for ultra quiet performance
- Energy Star® certified for energy efficient operation
- Built-In Humidity Sensor responds to rapid increases in humidity and adjusts fan speed
- Adjustable low CFM setting allows precise adjustment to prevent over-ventilating and maximize energy efficiency
- Features an adjustable time delay that sets how long the fan will run on high speed before returning to a continuous lower speed
- 4 inch oval duct connection for installation flexibility, allows for ceiling or wall mounting
- Powerful enough for rooms up to 90 sq. ft.
- ETL listed for use over bathtubs and showers when connected to GFCI protected branch circuit (ceiling installation only)
- Meets ASHRAE 62.2
- Covered under a 1 year manufacturer warranty
Product Technologies:
- True CFM™: Installed exhaust fan will not lose CFM performance even with complicated ducting
Specifications:
- CFM: 100, 50, 80
- Sones: 0.4, 1.2
- Bulb Type: LED
- Duct Size: 4" Round

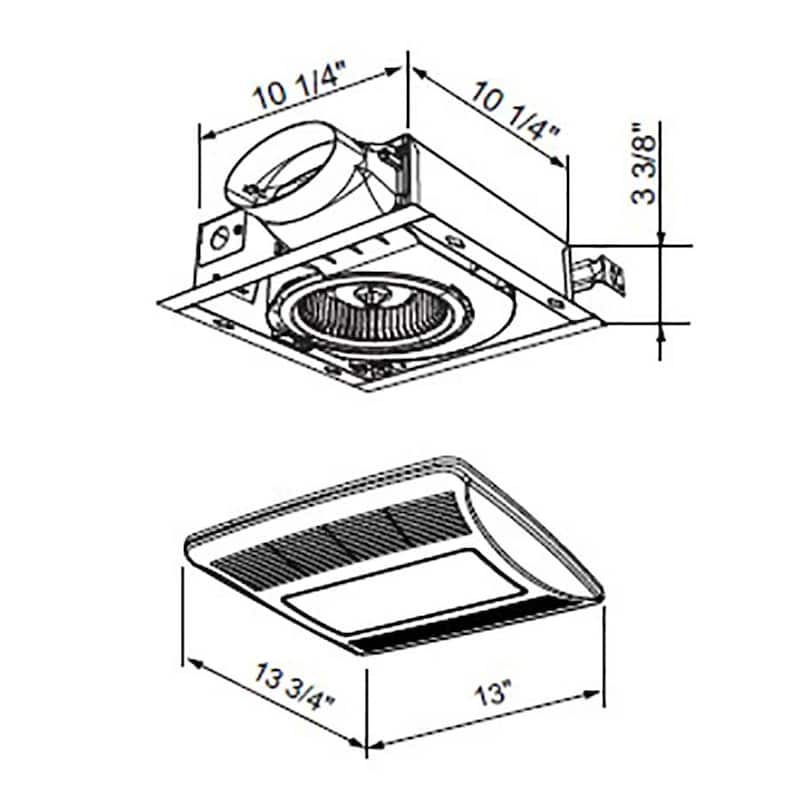

- Grille Width: 13"
- Grille Length: 13-3/4"
- Housing Width: 10-1/4"
- Housing Length: 10-1/4"
- Amperage: 0.35A
- Voltage: 120V
- Wattage: 11W
- Housing Depth: 3-3/8"
- Color
- White
- Dimensions
- 13.0 In. W X 1.0 In. H X 13.0 In. D
- Model Number
- LP510RSL
- Country of Origin
- China
