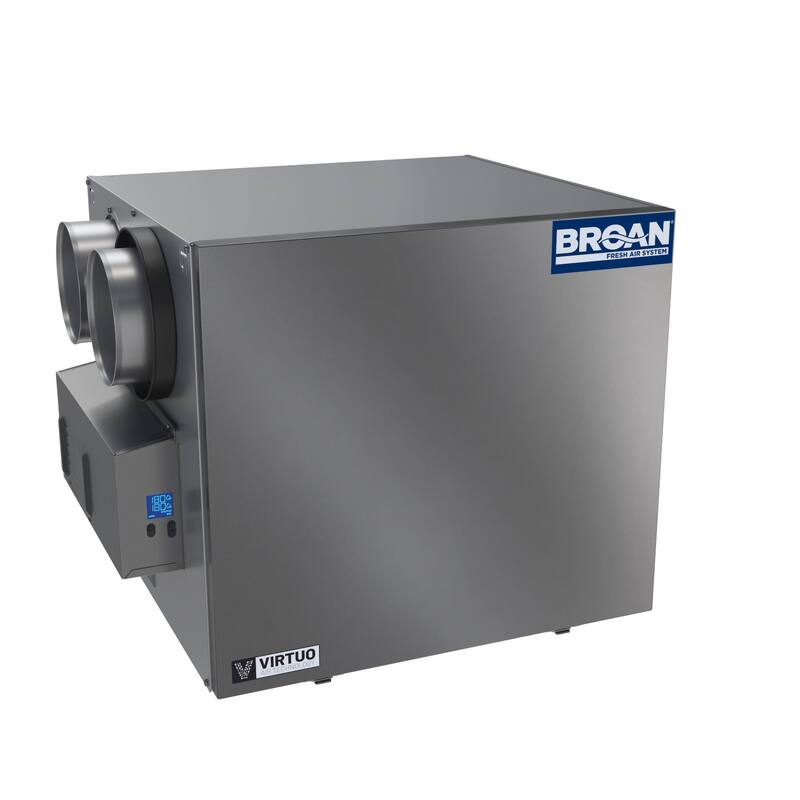

From the leader in residential indoor air quality this Broan® AI Series HRV features VIRTUO™ technology providing the easiest installation on the market. This fresh air system has the quickest installation in its category saving the installer up to 20 minutes, thanks to auto-balancing and self-adjusting technology. The built-in LCD screen provides real-time airflows, power consumption and acts as a diagnostic error tool. This technology not only eliminates the most complex part of installation, saving the contractor time but it also significantly reduces the number of call-backs. This product delivers consistent results with airflow verification providing the most efficient and reliable solution on the market regardless of dwelling type. Installing a Heat Recovery Ventilator (HRV) improves the indoor air quality of your home by providing a supply of tempered, filtered outdoor fresh air while exhausting the stale polluted air from your home, leaving the air healthier and more comfortable. The standard MERV 8 filter offers a more effective design than units in the market with larger capture area and will save the homeowner money with the reusable, easy to wash design.

Features:

• Equipped with powerful and energy efficient ECM PMSM motors delivering up to 225 CFM
• Consistent results with airflow verification, auto-balancing, and self-adjustment technology maintains the quality initial configuration in all dwelling types
• Installing a Heat Recovery Ventilator (HRV) improves indoor air quality of your home by providing a supply of tempered, filtered outdoor fresh air while exhausting the stale polluted air from your home, leaving the air healthier and more comfortable
• Superior HRV core performance and durability reaching up to 78% SRE 32°F at 66 CFM and Certified at 67% SRE -13°F at 81 CFM
• Delivers superior air quality with an included MERV 8 filter or the optional MERV 13 #V24300
• Integrated LCD screen to easily set the desired CFM, display real time airflows, power consumption and act as diagnostic error tool
• This product is equipped with side port configurations

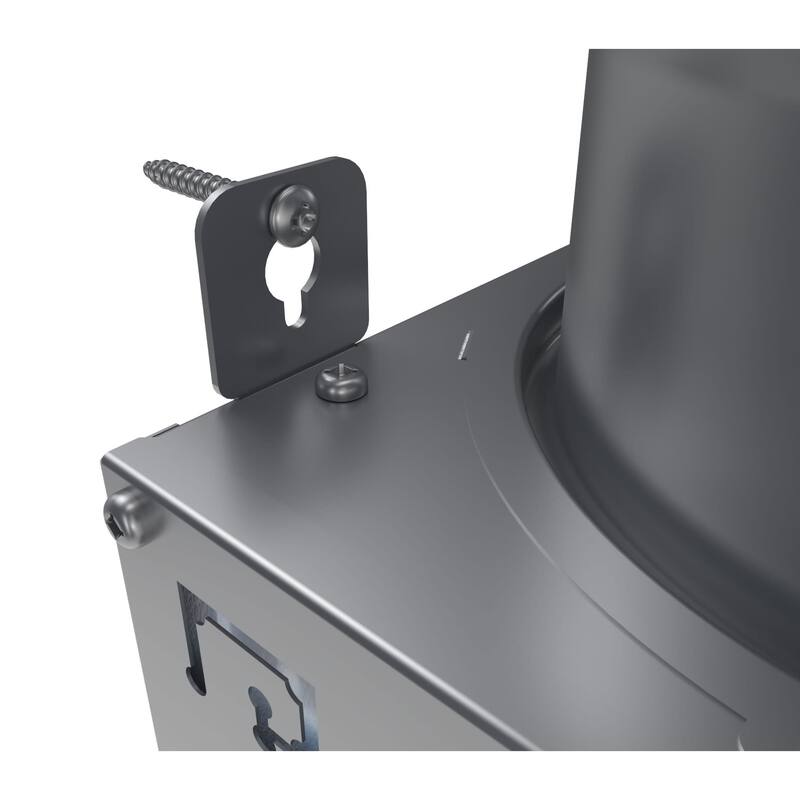

• Suspended installation (chains included) or Wall-mount installation with 2 or 4 brackets (universal brackets included)
• Compatible with a wide range of modern and user friendly controls to meet specific needs and different applications

Product Technologies:

• VIRTUO™ Air Technology: Continuously monitors the changing indoor and outdoor conditions to provides fresh, filtered and healthy air throughout the home

Specifications:

• CFM: 35, 225
• Duct Size: 5" Round
• Height: 19-1/2"
• Width: 27-1/8"
• Depth: 21"
• Amperage: 1.75A
• Voltage: 120V
• Wattage: 210W
