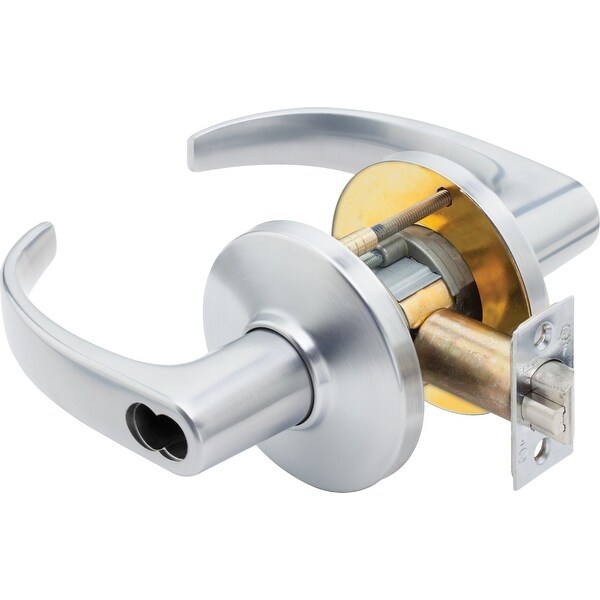

Best Access 9K37IN14DS3 9K Series Intruder Keyed Entry Door Lever Set with "14" Lever, "D" Trim, S3 Strike and 2-3/4" Backset

Product may differ slightly from what is shown above. Please check the attached catalog for specific rose and handle styles

Intruder ANSI F110 Function:

• Operated by rotating inside lever or rotating outside lever (only when not locked by inside or outside key)
• Outside lever locked and unlocked by turning key in the inside lever or turning the key in the outside lever
• Inside lever is always unlocked

Features:

• Please select interchangeable core from options above
• Exceeds criteria for BHMA Grade 1 certification
• Constructed of top quality materials for premium feel and durability
• Installs on doors with 1-3/4" to 2-1/4" door thickness
• Reversible handing for right or left doors
• Meets criteria of the Americans with Disabilities Act (ADA)
• Includes a square corner latch faceplate
• UL Listed 3 hour rating
• Accepts all Best 7-Pin SFIC cores, select above
• Covered by a 10 Year Mechanical and 3 Year Finish warranty

Specifications:

• Backset: 2-3/4"
• Door Thickness: 1-3/4" to 2-1/4"
• Cross Bore: 2-1/8"
• Edge Bore: 1"
• Handing: Reversible Left or Right
• Handle Length: 5-3/8"
• Handle Projection: 2-3/4"
• Trim Width: 3-1/2"
• Trim Height: 3-1/2"
• Latch Faceplate: Square Corner
• Interchangeable Core Type: SFIC
• Material: Brass, Bronze, Zinc
