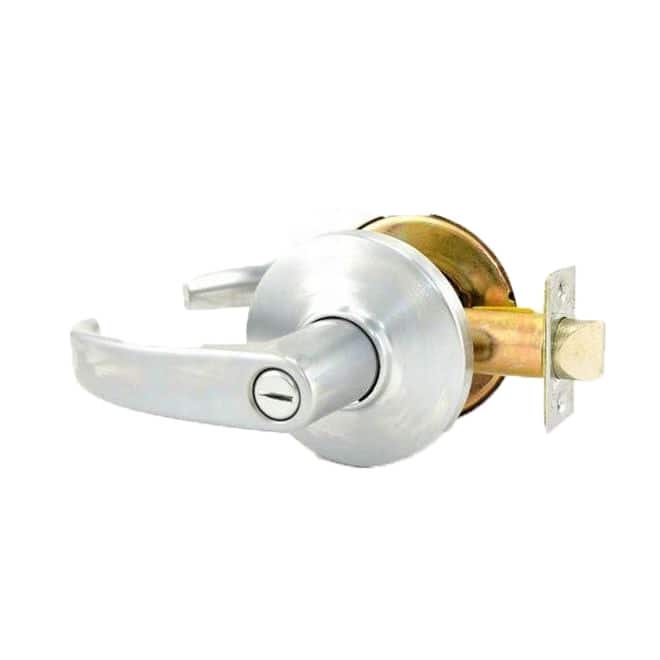

Product may differ slightly from what is shown above. Please check the attached catalog for specific rose and handle styles.

Privacy ANSI F76 Function:

• Operated by rotating inside lever or rotating outside lever (only when inside push-button is out)
• Outside lever is locked by pushing inside button
• Outside lever is unlocked by rotating the outside slotted button, rotating the inside lever or closing the door
• Inside lever is always unlocked

Features:

• Exceeds criteria for BHMA Grade 1 certification
• Constructed of top quality materials for premium feel and durability
• Installs on doors with 1-3/4" to 2-1/4" door thickness
• Reversible handing for right or left doors
• Meets criteria of the Americans with Disabilities Act (ADA)
• Includes a square corner latch faceplate
• UL Listed 3 hour rating
• Covered by a 10 Year Mechanical and 3 Year Finish warranty

Specifications:

• Backset: 2-3/4"
• Door Thickness: 1-3/4" to 2-1/4"
• Cross Bore: 2-1/8"
• Edge Bore: 1"
• Handing: Reversible Left or Right
• Handle Length: 5-3/8"
• Handle Projection: 2-3/4"
• Trim Width: 3-1/2"
• Trim Height: 3-1/2"
• Latch Faceplate: Square Corner
• Material: Brass, Bronze, Zinc
