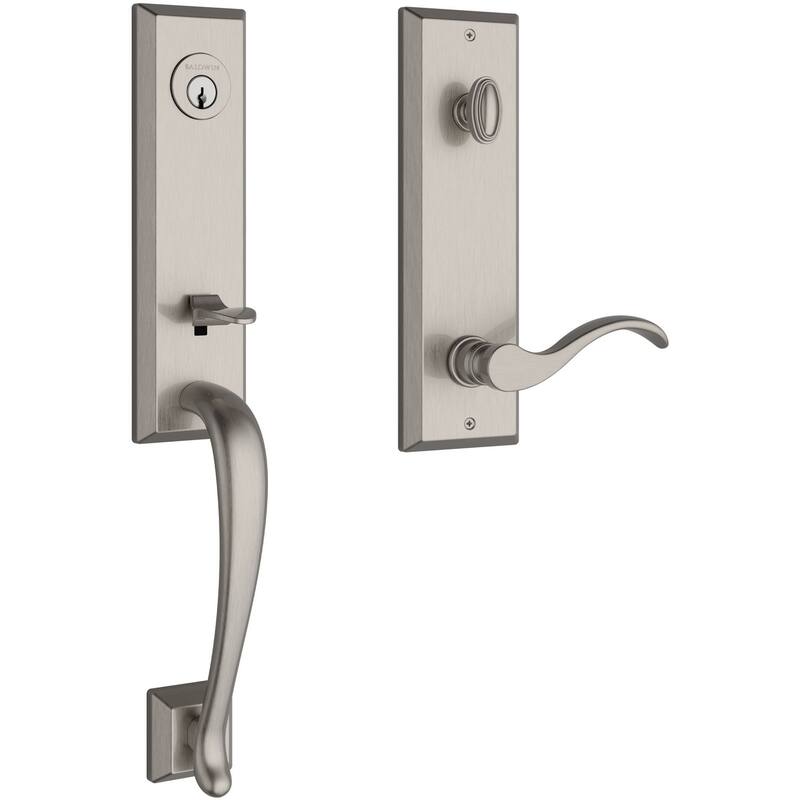

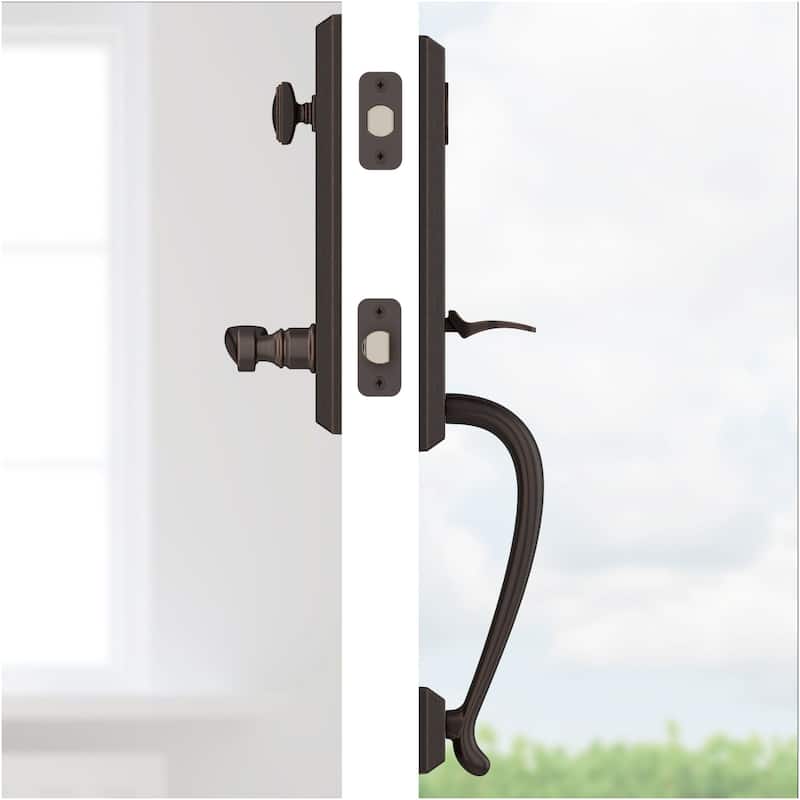

Single Cylinder Keyed Entry: Single cylinder handlesets are keyed on the exterior with an associated thumbturn on the inside that unlocks the door. The exterior handle has a thumb plate and the interior handle features a lever or knob. Single cylinder locks are most commonly used to secure entrances to a residence or place of business. Comes with Emergency Egress function which features an interconnected lock to simultaneously retract the deadbolt and door latch to quickly open your door.

Features:

• Tested to exceed ANSI/BHMA Grade 2 security requirements
• Constructed of solid metal for durability and premium feel
• Accommodates door thickness 1-3/8" to 2"; up to 2-1/2" with purchase of a thick door kit
• Limited Lifetime Mechanical Warranty and Limited 25 Year Finish Warranty

Specifications:

• Backset: Adjustable 2-3/8" or 2-3/4"
• Cross Bore: 2-1/8"
• Edge Bore: 1"
• Door Thickness: 1-3/8" to 1-7/8"
• Handing: Right
• Latch Faceplate: Drive-In, Round Corner, or Square Corner
• Cylinder: 5 Pin C Keyway
• Material: metal
• Grip Center to Center: 8-3/8"
• Overall Height: 16-13/16"
• Handle Projection: 2-7/8"
• Trim Height: 16-13/16"
• Trim Width: 2-11/16"
• Interior Handle Projection: 2-9/16"
• Interior Handle Length: 4-1/4"
