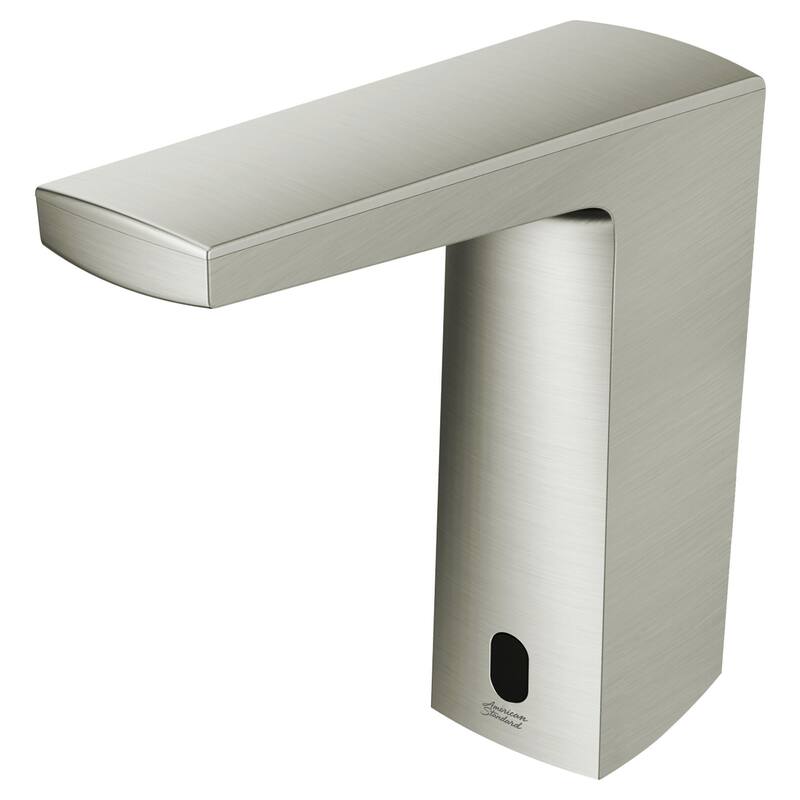

Sleek and streamlined, the Paradigm Selectronic® integrated faucet from American Standard takes a cue from modern design. The simple integrated design, with all electronics in the spout, is engineered for easy installation and maintenance to save time and money. It eliminates the control box and provides for a clean, clutter free under deck space.

American Standard 702B.105 Features:

• 0.5 GPM pressure compensating, vandal resistant multi laminar spray
• Hygienic touch free operation

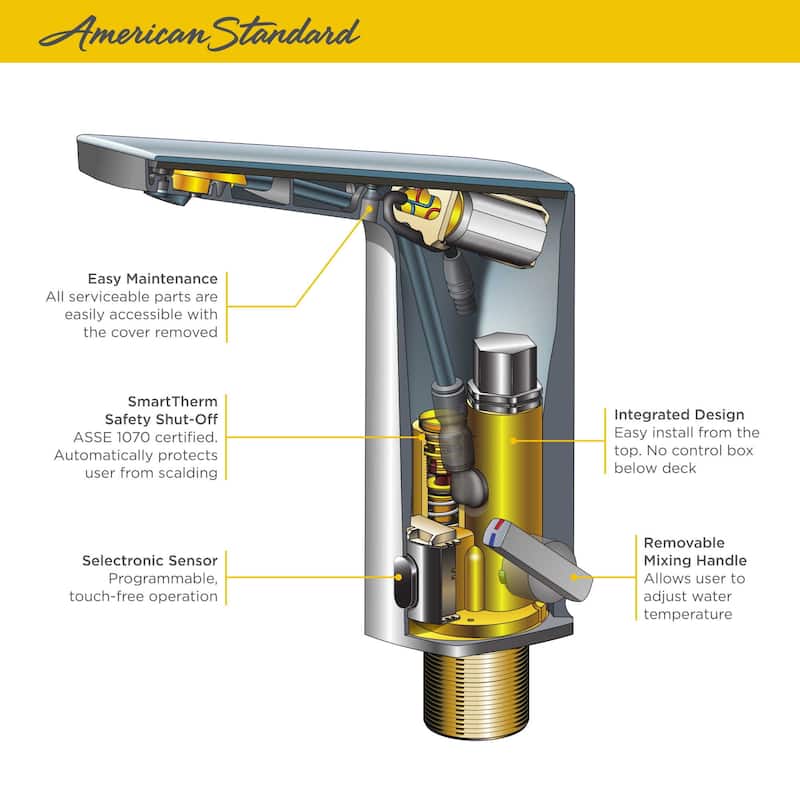

• Clean integrated design with all electronics contained in faucet spout, no control box below deck
• All serviceable parts are easily accessible for installation and maintenance
• Flexible Selectronic® platform with programmable sensor and interchangeable power supplies
• Self cleaning solenoid valve has silicon seals and integral wiper spring to prevent clogging and run-on that helps reduce maintenance
• Detection zone can be adjusted manually or with optional remote control
• Faucet battery automatically shuts off upon loss of power or dead battery and a reset is not required
• Auto purge periodically purges stagnant water from faucet and supply lines
• Safety timer turns water off if the sensor is blocked for 55 seconds

American Standard 702B.105 Technologies and Benefits:

• Selectronic®: Allows the user to program the motion sensor and includes an interchangeable power supply

American Standard 702B.105 Specifications:

• Height: 7-1/2" (deck to top of faucet)
• Spout Height: 6-5/8" (deck to spout outlet)
• Spout Reach: 5-1/2" (faucet base to spout outlet)
• Flow Rate: 0.5 gallons-per-minute
• Faucet Centers: 0" (distance between centers of outside faucet holes)
• Maximum Deck Thickness: 1-1/2" (cannot mount on thicker decks)
• Hole Size: 1-1/8"
• Faucet Holes: 1 (minimum number of holes required for installation)
