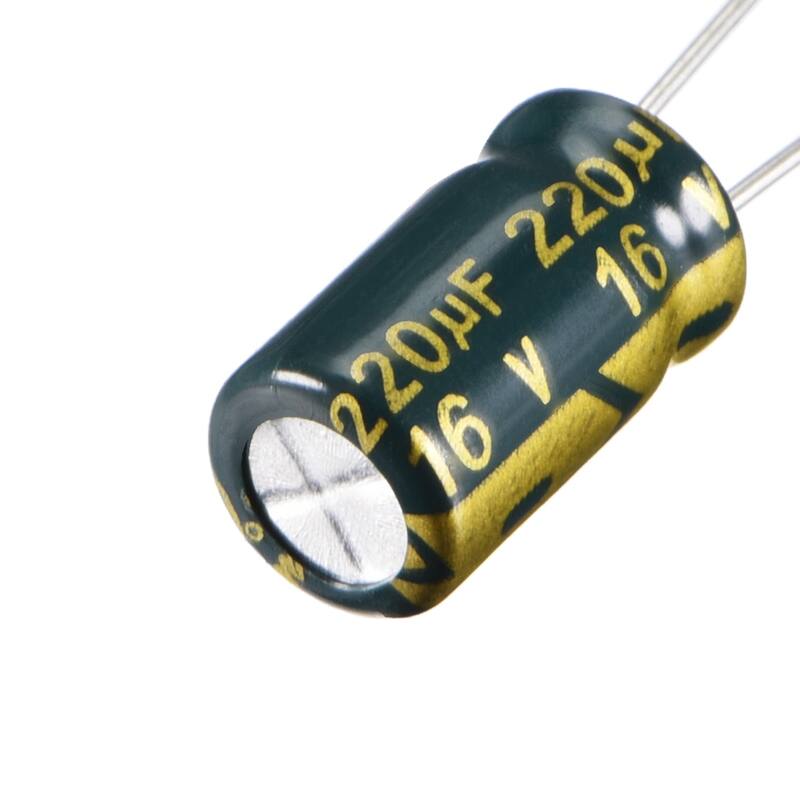

Aluminum Radial Electrolytic Capacitor Low ESR Green 220uF 16V 6.3x11mm 50pcs - 220uF 16V 6.3x11 50pcs
Aluminum Radial Electrolytic Capacitor Low ESR Green 220uF 16V 6.3x11mm 50pcs - 220uF 16V 6.3x11 50pcs
Features:
High Ripple Current,Low Impedance.
Radial lead, aluminum electrolytic capacitor.
The longer lead is positive electrode and the shorter one is negative electrode.
Notice:
1.Capacitance: Don't change the capacitance.
2.Voltage: You can go higher, but don't go lower.
3.Physical Size: Capacitors can vary greatly in size, try to select one of similar size to the one you are replacing.
Product Name : Aluminum Electrolytic Capacitor
Type: Radial Lead
Feature:High Ripple Current,Low Impedance
Category Temperature Range: -40 ~ + 105 Celsius(6.3~100V)
Rated Voltage: 16V;
Capacitance: 220uF;
Capacitance Tolerance: 20%(120Hz,+20 Celsius);
Max Ripple Current at 105 Celsius 100KHz: 340mA
Standard Load Life: 3000hrs

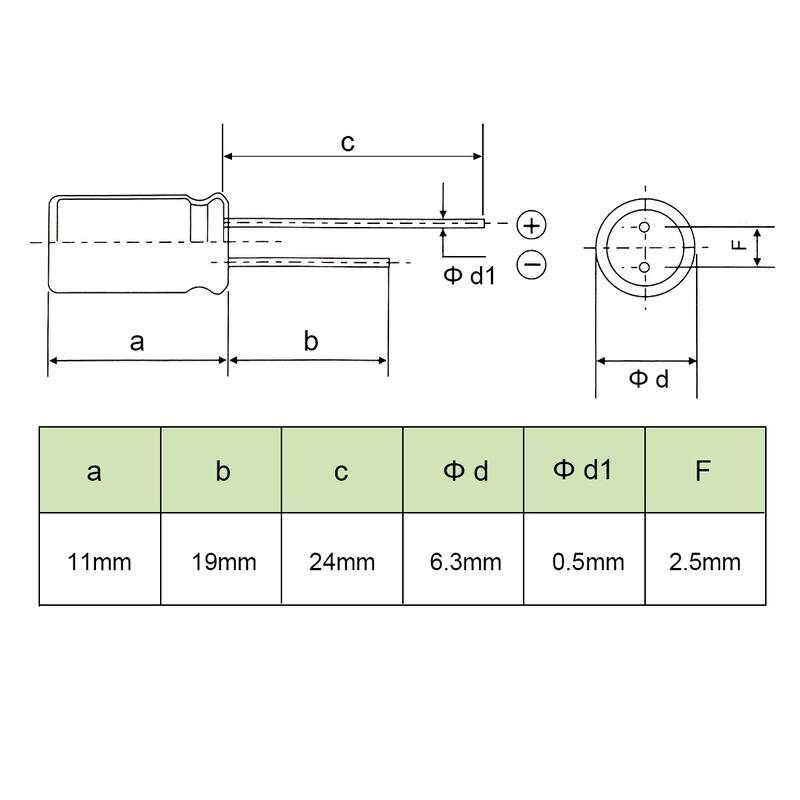

Body Size: 6.3 x 11mm/0.24" x 0.43"(D*L);
Lead Length: 24mm/0.94", 19mm/0.74";
Lead Pitch : 2.5mm/0.1"
Lead Diameter :0.5mm
Size : 50pcs 220UF 16V 6.3x11mm

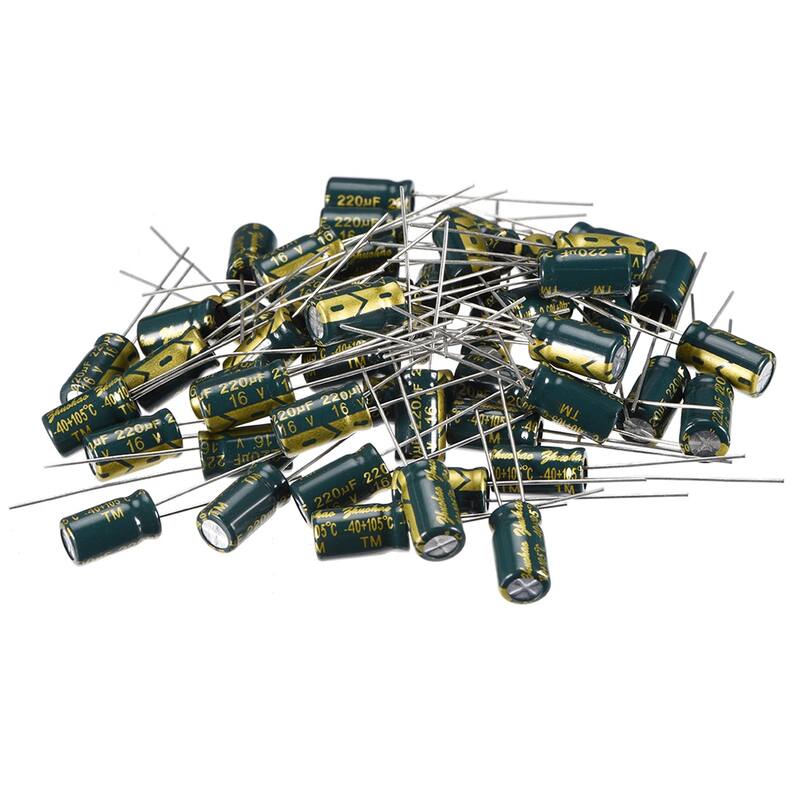

Package Content : 50(+/-2%)x Electrolytic Capacitors
While we aim to supply accurate product information, it is sourced by manufacturers, suppliers and marketplace sellers, and has not been provided by Overstock.
Disclaimers & Disclosures:
Important WARNING for California residents
- Model Number
- a18092700ux0274
- Country of Origin
- China
