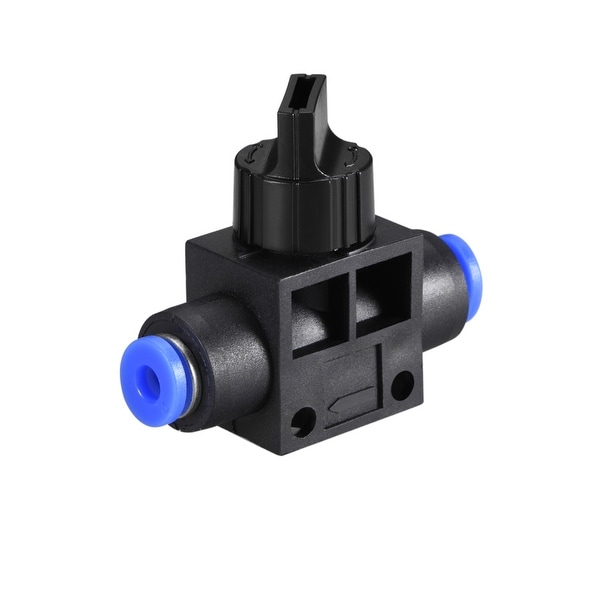

Air Flow Control Valve Connect Fitting, 5/32" OD Hand Valve Speed Controller

See More

Similar Items

Pricing and Options

Air Flow Control Valve Connect Fitting, 5/32" OD Hand Valve Speed Controller

Brand Name

brand Unique Bargainssold and shipped by

Price Information

 $19.23
Out of Stock
Receive an email when it's back in stock!
Sign up today to receive exclusive email offers!

Product Information

Details

Product Features:

Product Name : Air Flow Control Valve

Model :HVFF-4

Net Weight : 34g

Color : Black,Blue

Material : Plastic,Metal

Two Tube Size (OD) : 5/32" = 4mm

Body Style : Speed Controller Union Straight

Operating Pressure : 0-1MPa

Guaranteed pressure resistance : 1.2MPa

Operating temperature:0 - 60 Degree Celsius

Dimension : 50.5mm x 42mm x 17.6mm / 1.99" x 1.65" x 0.69"(L x W x H )



Package Content:

2pcs x Air Flow Control Valve



Description:

1.Push in fittings, Hand flow speed controller, used in pneumatic piping's Series pneumatic inline air flow speed control valve push in fitting equipped,connect with polyethylene, nylon and PU tubing.

2.The exhaust type switch can be used to open/close the gas in the pipeline, and at the same time, it is Exhaust air status during the rotation of the switch.

3.A good release cap can withstand greater and stronger pressure without tripping.

4.Have flexibility, abrasion resistance, light weight, and resistance to crushing and cracking,Compressive and corrosion resistant, good sealing performance and long service life.

5.Quick and simple installation,with a convenient one touch release button that provides a easy and quick tubing connections with no special tools required.

6.Two small tube are use for fixed.



Mounted:

1.Cut the pipe flat, no slope

2.When inserting the pipe into the joint, it must be inserted into the end, otherwise there may be a leak.

3.After plugging in, try to pull the tube, if you can't pull it out, it means it has been connected.

4.When loosening the tube, first confirm that there is no pressure in the tube, and then evenly press the end cap to the bottom.




While we aim to supply accurate product information, it is sourced by manufacturers, suppliers and marketplace sellers, and has not been provided by Overstock.
Country of Origin: China

Specifications

Item #
31680093
Model Number
a18101800ux0243
