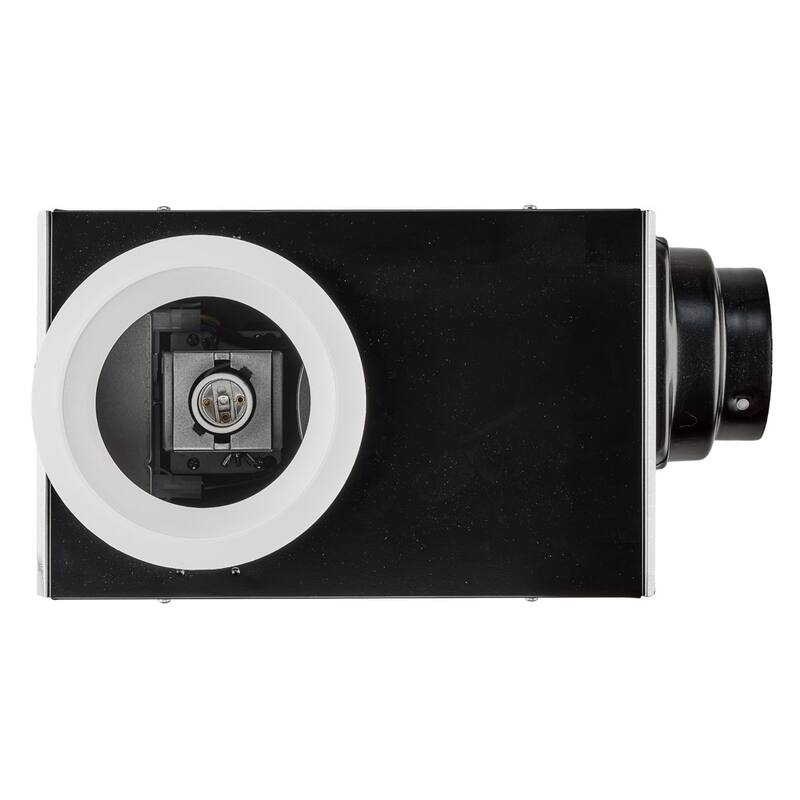

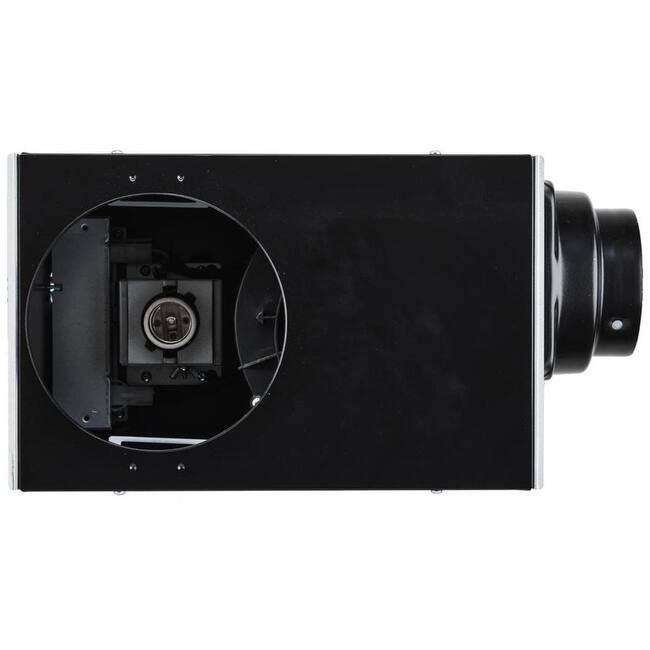

The AP100-RVL recessed round exhaust fan with light combines functionality and aesthetics, providing both efficient ventilation and effective lighting for your bathroom. This fixture features a quiet yet powerful bath fan integrated with a recessed light, offering the flexibility to operate the fan and light independently or together based on your needs. Ideal for new construction or remodel projects, it is IC-rated and designed to fit perfectly with 2 x 8 inch joists. Included are articulating expandable anti-vibration brackets and a connector suitable for 4 to 5 inch ducts, ensuring straightforward installation and stable performance. The fan unit is constructed with a rust-proof steel motor housing and equipped with a built-in backdraft damper and thermal shutoff for enhanced safety and durability. ETL listed for use in tub or shower enclosures when GFCI-protected, this fixture requires a PAR30L bulb (sold separately) to complete its functionality.

Notice: Must be installed by a licensed professional

Features:

• 100 CFM output quickly clears your bathroom of moisture
• Ventilates rooms up to 100 sq. ft.
• At 1.6 sones of sound output, this fan operates quietly
• Designed for new construction or remodel applications, fitting 2 x 8 inch joists
• Includes articulating expandable anti-vibration brackets and duct connector for 4" or 5" ductwork
• Integrated lighting brightly illuminates your bathroom (bulb sold separately)
• Operates fan and light separately or together for customizable use
• Built-in backdraft damper prevents outdoor air from entering through the fan
• Accepts bulbs up to 75W (max) PAR30, 14W (max) BR30 LED, or 75W (max) PAR30L (for use over tub/shower) (bulbs sold separately)
• ENERGY STAR compliant with used with GU24 Kit (sold separately)
• Approved for installation over a shower area when connected to a GFCI breaker
• Bath fan is certified for ETL, HVI, and UL
• Covered under a 6 year limited manufacturer warranty

Specifications:

• CFM: 100
• Sones: 1.6
• Duct Size: 4" Round, 5" Round
• Grille Width: 6"
• Grille Length: 6"
• Housing Width: 8"
• Housing Length: 12-5/8"
• Housing Depth: 7-5/8"
• Amperage: 0.2A
• Voltage: 120V
• Wattage: 23W
