Product Information
Details
Uxcell provide P5 Tolerance Single Direction Thrust Ball Bearings of all series.
The separable components of thrust ball bearings are interchangeable. This facilitates mounting and dismounting, and maintenance inspections.

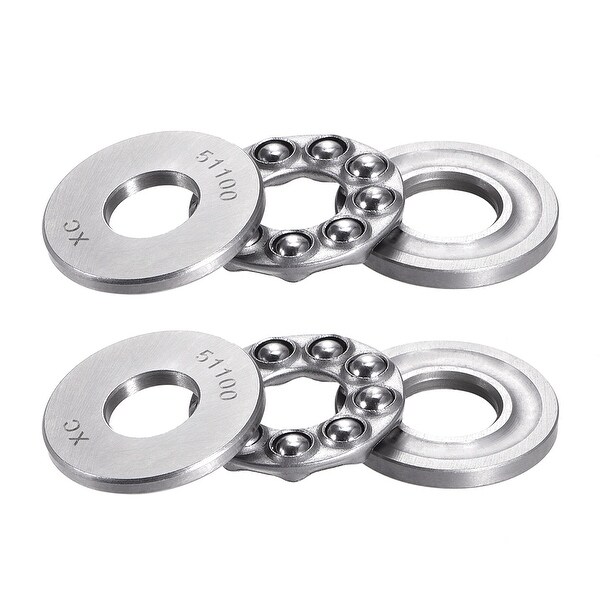

Thrust Ball Bearings are consisted of a shaft washer, a housing washer and a ball and cage assembly.
They are designed to accommodate axial loads and locate a shaft axially, in one direction only, and must not be subjected to any radial load.
Chromium Steel (GCr15) Shaft and Housing Washer provide high and uniform hardness, good wear resistance.
Specification:
Model: 51100
Shaft/Housing Washer Material: Chromium Steel (GCr15)
Bearing Ball Meterial: Chromium Steel (GCr15)
Cage Material: Stamping Steel
Bore Diameter (d): 10 mm
Outer Diameter (D): 24 mm
Thickness (B): 9 mm
Dynamic Load Rating (Cr): 10kN
Static Load Rating (Cor): 14kN
Limiting Speed (Grease): 6500rpm
Limiting Speed (Oil): 10000rpm
Accuracy Class: P5
Number of Pack: 1 Pcs
