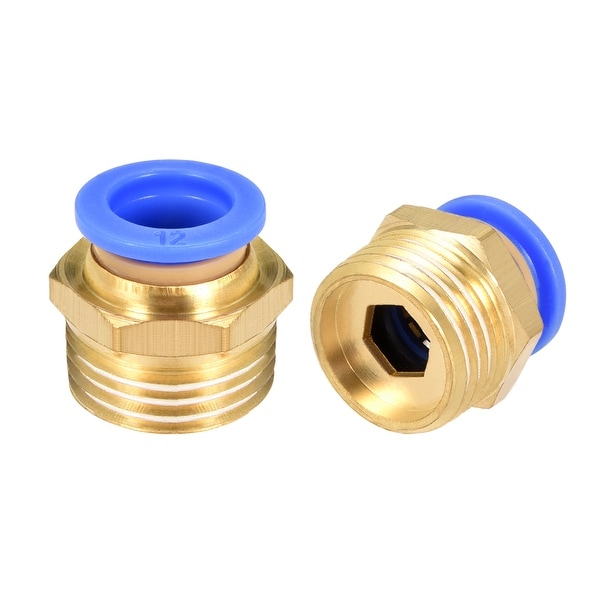

5 Pcs 1/2" G Male Straight Thread 12mm Push In Joint Pneumatic Quick Fittings

Pricing and Options

5 Pcs 1/2" G Male Straight Thread 12mm Push In Joint Pneumatic Quick Fittings

Brand Name

brand Unique Bargainssold and shipped by

Price Information

 $23.61
Sale$12.57

Financing Option

Pay it off in up to 24 months with the Overstock Store Credit Card. Learn More

Delivery Estimate Summary

Want a shipping estimate?

Option Selection

ONLY 7 LEFT!
Free Shipping* & 5% Rewards
Start 30 day free trial. $19.95/year.

Add to Cart Button

Product Information

Details

Product Features:

Product Name : Quick Fittings

Model : PC12-04

Net Weight : 79g

Color : Gold Tone,Blue

Material : Plastic,Brass

Thread Tube Size : 1/2" G

Thread Tube Diameter : 20mm

Tube Size (OD) : 12mm = 15/32"

Type: Male Straight Thread Connector

Thread Tube Inner Hole Type : Hex Type

Operating Pressure : 0-9MPa

Guaranteed pressure resistance : 1.5MPa

Dimension : 23mm x 21mm / 0.91-inch x 0.83-inch (L x W )



Package Content:

5pcs x Quick Fittings



Description:

1.The quick fitting is designed for Polyurethane or Nylon tubing. Even after installation, the direction of the tube can be changed freely.

2.Push-to-connect tube connection on one end and male G threads on the other end.

3.A good release cap can withstand greater and stronger pressure without tripping.

4.Have abrasion resistance, light weight, and resistance to crushing and cracking,Compressive and corrosion resistant, good sealing performance and long service life.

5.Elliptical release ring help to connect tube easily by manual, no special tools required.

6.Outside (and Inside where applicable) hexagonal wrench tightening.



Mounted:

1.Cut the pipe flat, no slope

2.When inserting the pipe into the joint, it must be inserted into the end, otherwise there may be a leak.

3.After plugging in, try to pull the tube, if you can't pull it out, it means it has been connected.

4.When loosening the tube, first confirm that there is no pressure in the tube, and then evenly press the end cap to the bottom.




While we aim to supply accurate product information, it is sourced by manufacturers, suppliers and marketplace sellers, and has not been provided by Overstock.
Country of Origin: China
