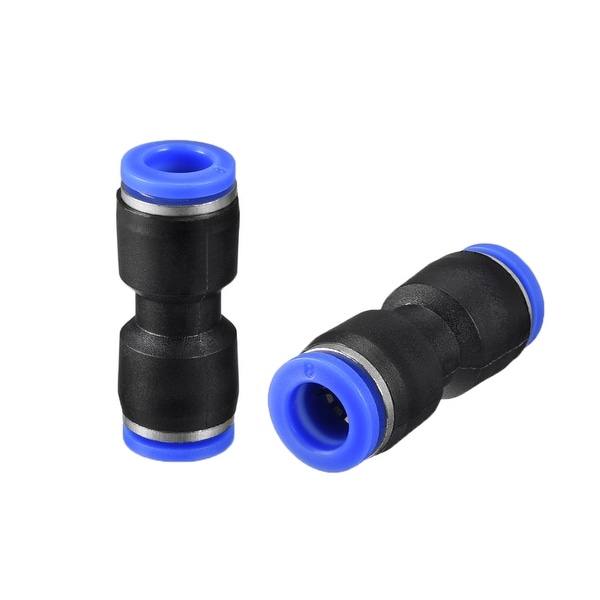

3pcs Push to Connect Fittings 8mm or 5/16" Straight OD Push Tube Fittings Blue - 3pcs 5/16"

Pricing and Options

3pcs Push to Connect Fittings 8mm or 5/16" Straight OD Push Tube Fittings Blue - 3pcs 5/16"

Brand Name

by Unique Bargainssold and shipped by

Price Information

 $16.26
Sale$8.66

Financing Option

Pay it off in up to 24 months with the Overstock Store Credit Card. Learn More

Delivery Estimate Summary

Want a shipping estimate?

Option Selection

ONLY 10 LEFT!
Free Shipping* & 5% Rewards
Start 30 day free trial. $19.95/year.

Add to Cart Button

Product Information

Details

Product Features:

Product Name : Connect Fitting

Model : PU-8

Net Weight : 17g

Material : Plastic

Color : Black,Blue

Type: Straight Connector

Two Tube Size (OD) : 8mm = 5/16"

Operating Pressure : 0-1MPa

Guaranteed pressure resistance : 1.5MPa

Operating temperature:-10 - 60 Degree Celsius

Dimension : 38mm x 15mm / 1.5-inch x 0.59-inch (L x D )



Package Content:

3pcs x Connect Fitting



Description:

1.5/16" Push to Connect Fittings designed for using to connect with polyethylene, nylon and PU tubing.

 2.Easy to install .This tube connector is available in various styles and models . Each model to serve its purpose. All models of push lock fittings are designed to suit your pneumatic piping needs perfectly

3.Have flexibility, abrasion resistance, light weight, and resistance to crushing and cracking,Compressive and corrosion resistant, good sealing performance and long service life.

4.You can easily change the tubing connector direction even after installation. The release ring of conforms with the ellipse design to ensure that the disconnecting of connect push is in good shape.

5.All push to lock contains internal hexagonal holes this enhances the installation process in a narrow space push connect fittings Can be dismantled and assembled easily These Push In Fittings Meet The Pressures And Temperatures Mentioned



Mounted:

1.Cut the pipe flat, no slope

2.When inserting the pipe into the joint, it must be inserted into the end, otherwise there may be a leak.

3.After plugging in, try to pull the tube, if you can't pull it out, it means it has been connected.

4.When loosening the tube, first confirm that there is no pressure in the tube, and then evenly press the end cap to the bottom.




While we aim to supply accurate product information, it is sourced by manufacturers, suppliers and marketplace sellers, and has not been provided by Overstock.
Country of Origin: China
Item #: 31681826

Specifications

Model Number
a18092200ux0220
