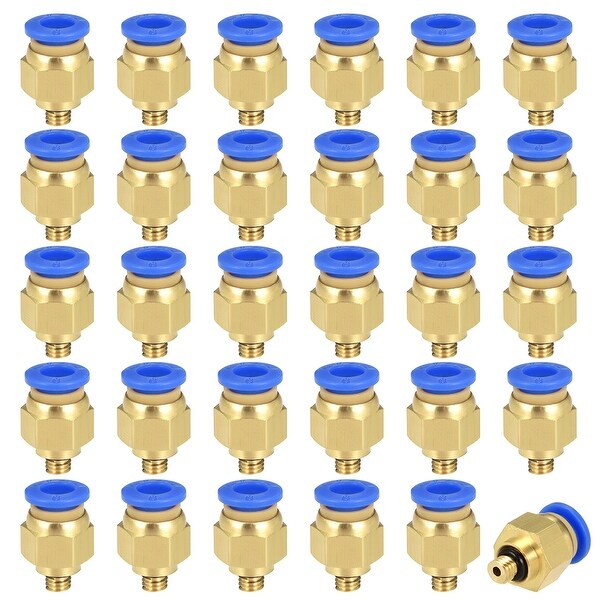

30 Pcs Pneumatic Straight Quick Fitting 6mm Thread M5 One Touch Hose Connector - 6mm OD x M5 30pcs

Product Features:

Product Name : Quick Fittings

Model : PC6-M5

Net Weight : 36g

Color : Gold Tone,Blue

Material : Plastic,Brass

Thread Type : G Type

Thread Tube Size : M5

Inner Diameter(Blue End) : 15/64" = 6mm

Operating Pressure : 0-9MPa

Guaranteed pressure resistance : 1.5MPa

Type: Male Straight Thread Connector

Dimension : 20mm x 12mm / 0.79-inch x 0.47-inch (L x W )

Package Content:

30pcs x Quick Fittings

Description:

1.The quick fitting is designed for Polyurethane or Nylon tubing. Even after installation, the direction of the tube can be changed freely.

2.Push-to-connect tube connection on one end and male G threads on the other end.

3.A good release cap can withstand greater and stronger pressure without tripping.

4.Have abrasion resistance, light weight, and resistance to crushing and cracking,Compressive and corrosion resistant, good sealing performance and long service life.

5.Elliptical release ring help to connect tube easily by manual, no special tools required.

Mounted:

1.Cut the pipe flat, no slope

2.When inserting the pipe into the joint, it must be inserted into the end, otherwise there may be a leak.

3.After plugging in, try to pull the tube, if you can't pull it out, it means it has been connected.

4.When loosening the tube, first confirm that there is no pressure in the tube, and then evenly press the end cap to the bottom.
