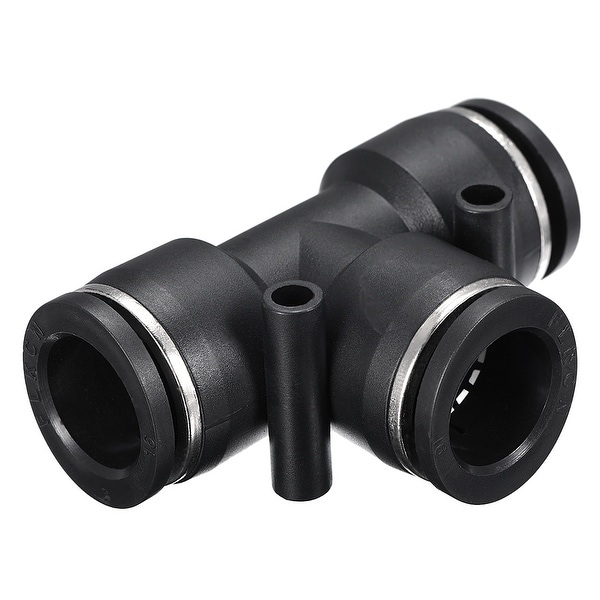

2pcs Push To Connect Fittings T Type 16mm or 5/8" OD Push Tube Fittings

Pricing and Options

2pcs Push To Connect Fittings T Type 16mm or 5/8" OD Push Tube Fittings

Brand Name

brand Unique Bargainssold and shipped by

Price Information

 $23.63
Sale$12.58

Financing Option

Pay it off in up to 24 months with the Overstock Store Credit Card. Learn More

Delivery Estimate Summary

Want a shipping estimate?

Option Selection

ONLY 7 LEFT!
Free Shipping* & 5% Rewards
Start 30 day free trial. $19.95/year.

Add to Cart Button

Product Information

Details

Product Features:

Product Name : Connect Fitting

Model : PE16

Color : Black

Net Weight : 76g

Material : Plastic

Type: T Type Tee Connector

Three Tube Size (OD) : 16mm = 5/8"

Operating Pressure : 0-1MPa

Guaranteed pressure resistance : 1.5MPa

Operating temperature£º-10 - 60 Degree Celsius

Dimension : 66mm x 46mm x 26mm / 2.6-inch x 1.81-inch x 1.02-inch(L x W x H )



Package Content:

2pcs x Connect Fitting



Description:

1.Quick and simple installation,designed for using to connect with polyethylene, nylon and PU tubing.

2.A good release cap can withstand greater and stronger pressure without tripping.

3.Have flexibility, abrasion resistance, light weight, and resistance to crushing and cracking,Compressive and corrosion resistant, good sealing performance and long service life.

4.Easy to install, insert the plastic tube, the cap can be rotated freely, but its rotation is only used when the angle is wrong when the joint is installed.

5.Two small tube in the side is use for fixed.



Mounted:

1.Cut the pipe flat, no slope

2.When inserting the pipe into the joint, it must be inserted into the end, otherwise there may be a leak.

3.After plugging in, try to pull the tube, if you can't pull it out, it means it has been connected.

4.When loosening the tube, first confirm that there is no pressure in the tube, and then evenly press the end cap to the bottom.




While we aim to supply accurate product information, it is sourced by manufacturers, suppliers and marketplace sellers, and has not been provided by Overstock.
Country of Origin: China
