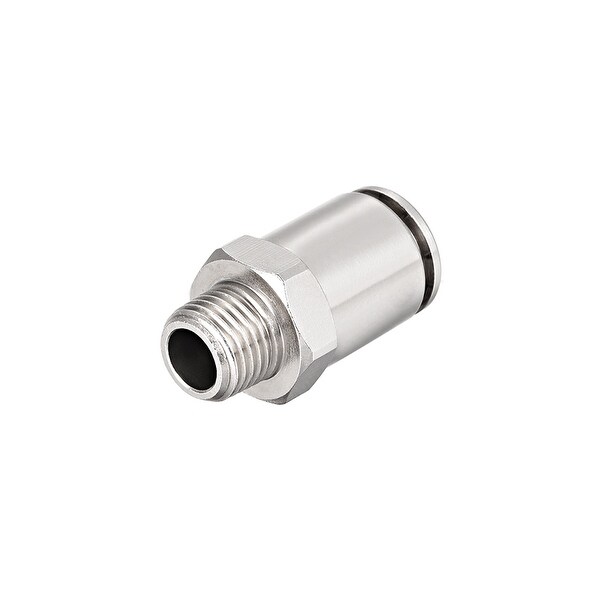

12mm Tube to 1/4 NPT Push Lock Fitting, Brass Nickel Plated Quick Tube Fittings

Brand Name

brand Unique Bargainssold and shipped by

Price Information

Sale ends in: 22 hr 16 min
Out of Stock
Receive an email when it's back in stock!
Sign up today to receive exclusive email offers!

Product Information

Details

Feature:
1.The quick fitting is designed for Polyurethane or Nylon tubing. Even after installation, the direction of the tube can be changed freely.
2.Push-to-connect tube connection on one end and male threads on the other end.
3.A good release cap can withstand greater and stronger pressure without tripping.
4.Have abrasion resistance, light weight, and resistance to crushing and cracking,Compressive and corrosion resistant, good sealing performance and long service life.
5.Elliptical release ring help to connect tube easily by manual, no special tools required.
6.Outside (and Inside where applicable) hexagonal wrench tightening.

Mounted:
1.Cut the pipe flat, no slope
2.When inserting the pipe into the joint, it must be inserted into the end, otherwise there may be a leak.
3.After plugging in, try to pull the tube, if you can't pull it out, it means it has been connected.
4.When loosening the tube, first confirm that there is no pressure in the tube, and then evenly press the end cap to the bottom.

Specification:
Type: Male Straight Thread Connector
Product Name: Quick Fittings
Material: Brass Nickel Plating
Thread Size: 1/4 NPT
Tube Size (OD): 12mm
Overall Size : 21 x 36.5mm / 0.83" x 1.44" (D*H)

Package Content:
1 x Quick Fittings


While we aim to supply accurate product information, it is sourced by manufacturers, suppliers and marketplace sellers, and has not been provided by Overstock.
Country of Origin: China
