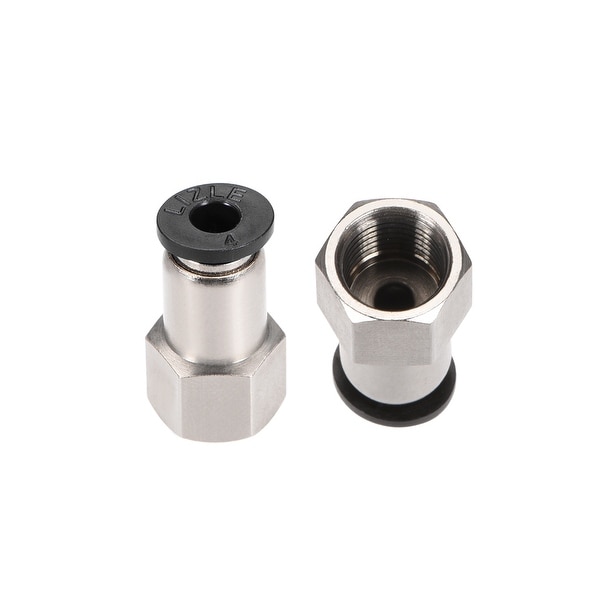

1/8" G Female Straight Thread 9.5mm Push In Joint Pneumatic Quick Fittings 5pcs

Pricing and Options

1/8" G Female Straight Thread 9.5mm Push In Joint Pneumatic Quick Fittings 5pcs

Brand Name

by Unique Bargainssold and shipped by

Price Information

 $14.52
Today$8.59

Financing Option

Pay it off in up to 24 months with the Overstock Store Credit Card. Learn More

Delivery Estimate Summary

Want a shipping estimate?

Option Selection

ONLY 1 LEFT!
Free Shipping* & 5% Rewards
Start 30 day free trial. $19.95/year.

Add to Cart Button

Product Information

Details

Product Features:

Product Name : Quick Fittings

Model : PCF4-01

Net Weight : 45g

Color : Silver Tone,Black

Material : Plastic,Brass

Operating Pressure : 0-1MPa

Guaranteed pressure resistance : 1.5MPa

Operating temperature£º0 - 60 Degree Celsius;

Female Thread Type : G Type

Type: Female Straight Thread Connector

Thread Tube Inner Hole Type : Round

Tube and Thread Size : 5/32" Tube OD x 1/8" G Female Thread (4mm x 9.5mm)

Dimension : 23mm x13.4mm / 0.9-inch x 0.53-inch (L x W£©



Package Content:

45pcs x Quick Fittings



Description:

1.The quick fitting is designed for Polyurethane or Nylon tubing. Even after installation, the direction of the tube can be changed freely.

2.Push-to-connect tube connection on one end and Female G threads on the other end.

3.A good release cap can withstand greater and stronger pressure without tripping.

4.Have abrasion resistance, light weight, and resistance to crushing and cracking,Compressive and corrosion resistant, good sealing performance and long service life.

5.Elliptical release ring help to connect tube easily by manual, no special tools required.



Mounted:

1.Cut the pipe flat, no slope

2.When inserting the pipe into the joint, it must be inserted into the end, otherwise there may be a leak.

3.After plugging in, try to pull the tube, if you can't pull it out, it means it has been connected.

4.When loosening the tube, first confirm that there is no pressure in the tube, and then evenly press the end cap to the bottom.




While we aim to supply accurate product information, it is sourced by manufacturers, suppliers and marketplace sellers, and has not been provided by Overstock.
Country of Origin: China
Item #: 31886958

Specifications

Model Number
a18111300ux0228
