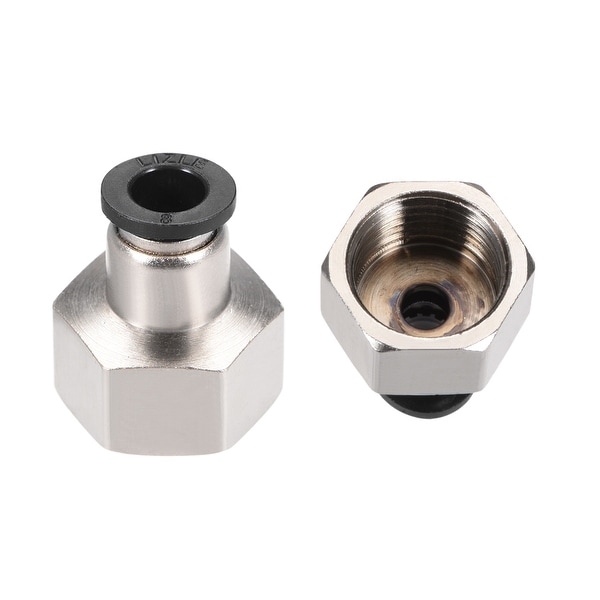

1/2NPT Straight Thread 20.3mm Push In Connector Quick Fitting Silver Tone 2pcs

Pricing and Options

1/2NPT Straight Thread 20.3mm Push In Connector Quick Fitting Silver Tone 2pcs

Brand Name

by Unique Bargainssold and shipped by

Price Information

 $22.46
Sale$11.96
Sale ends in: 19 hr 23 min

Financing Option

Pay it off in up to 24 months with the Overstock Store Credit Card. Learn More

Delivery Estimate Summary

Want a shipping estimate?

Option Selection

ONLY 2 LEFT!
Free Shipping* & 5% Rewards
Start 30 day free trial. $19.95/year.

Add to Cart Button

Product Information

Details

Product Features:

Product Name : Quick Fittings

Model : PCF8-04

Net Weight : 69g

Color : Silver Tone,Black

Material : Plastic,Brass

Operating Pressure : 0-1MPa

Guaranteed pressure resistance : 1.5MPa

Operating temperature£º0 - 60 Degree Celsius;

Female Thread Type : NPT Type

Type: NPT Straight Thread Connector

Thread Tube Inner Hole Type : Round

Tube and Thread Size : 5/16" Tube OD x 1/2NPT Female Thread (8mm x 20.3mm)

Dimension :30mm x27mm / 1.2-inch x 1.06-inch (L x W£©



Package Content:

2pcs x Quick Fittings



Description:

1.The quick fitting is designed for Polyurethane or Nylon tubing. Even after installation, the direction of the tube can be changed freely.

2.Push-to-connect tube connection on one end and NPT threads on the other end.

3.A good release cap can withstand greater and stronger pressure without tripping.

4.Have abrasion resistance, light weight, and resistance to crushing and cracking,Compressive and corrosion resistant, good sealing performance and long service life.

5.Elliptical release ring help to connect tube easily by manual, no special tools required.



Mounted:

1.Cut the pipe flat, no slope

2.When inserting the pipe into the joint, it must be inserted into the end, otherwise there may be a leak.

3.After plugging in, try to pull the tube, if you can't pull it out, it means it has been connected.

4.When loosening the tube, first confirm that there is no pressure in the tube, and then evenly press the end cap to the bottom.




While we aim to supply accurate product information, it is sourced by manufacturers, suppliers and marketplace sellers, and has not been provided by Overstock.
Country of Origin: China
Item #: 31889081

Specifications

Model Number
a18111300ux0248
