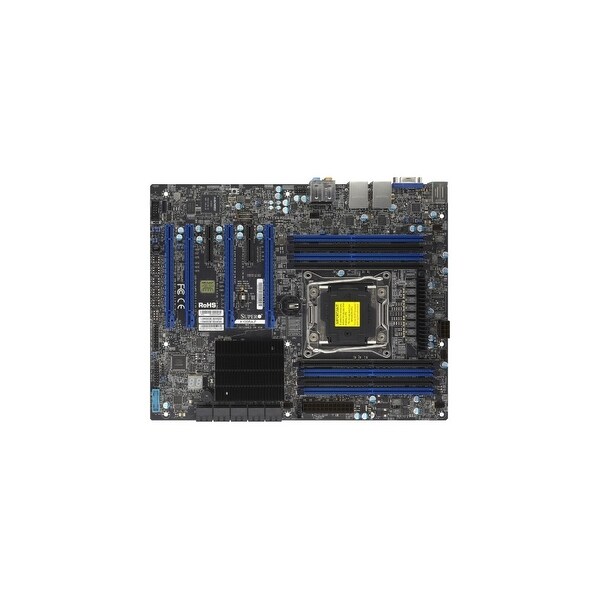

Supermicro MBD-X10SRA-F-O Supermicro X10SRA-F Server Motherboard - Intel C612 Chipset - Socket R3 (LGA2011-3) - Retail Pack -

Pricing and Options

Supermicro MBD-X10SRA-F-O Supermicro X10SRA-F Server Motherboard - Intel C612 Chipset - Socket R3 (LGA2011-3) - Retail Pack -

Brand Name

by Supermicro

Price Information

Out of Stock
Receive an email when it's back in stock!
Sign up today to receive exclusive email offers!

Product Information


Supermicro MBD-X10SRA-F-O

Product # MBD-X10SRA-F-O

Xeon® E5 Family Boards / Socket R3 (LGA 2011)

The new Supermicro's X10 UP Serverboards offer the latest Xeon E5-2600/1600 v3 technology solutions with the highest levels of performance in different form factors to meet various application needs. X10SRL-F, with 7x PCIe (up to 5x PCIe 3.0 x8) slots onboard, is the best choice to maximize your I/O intensive application demand. On the other hand, X10SRi-F offers the latest virtualization support at low cost. For customers who need multiple I/O solutions in a 1U chassis, X10SRW-F (up to 3x AOC) and X10SRG-F (up to 5x AOC) provide the ultimate solutions. Supermicro's first UP Storage serverboard, X10SRH-CF/-CLN4F, brings the latest SAS3 (12Gb/s data rate) technology to the market with the best performance per dollar value.

MBD-X10SRA-F-O Features:
  • Package Type: Retail
  • Chipset Manufacturer: Intel
  • Chipset Model: C612
  • Total Processor Supported: 1
  • Processor Socket: Socket R3 (LGA2011-3)
  • Processor Supported: Xeon
  • Processor Supported: Core i7
  • Number of Memory Slots: 8
  • Memory Form Factor: DIMM
  • Memory Form Factor: RDIMM
  • Memory Form Factor: LRDIMM
  • Memory Form Factor: UDIMM
  • Maximum Memory: 512 GB
  • Memory Speed Supported: 2.13 GHz
  • Memory Speed Supported: 1.87 GHz
  • Memory Speed Supported: 1.60 GHz
  • Memory Technology: DDR4 SDRAM
  • Controller Type: Serial ATA/600
  • RAID Supported: Yes
  • RAID Levels: 0
  • RAID Levels: 1
  • RAID Levels: 5
  • RAID Levels: 10
  • Onboard Video: No
  • Audio Channels: 7.1
  • Gigabit Ethernet: Yes
  • Number of Total Expansion Slots: 6
  • Total Number of PCI Express Slots: 6
  • Number of PCI Express x16 Slots: 4
  • Total Number of USB Ports: 8
  • Number of USB 3.0 Ports: 8
  • Number of SATA Interfaces: 10
  • Total Number of Onboard USB Ports: 4
  • Number of Onboard USB 3.0 Ports: 4
  • Form Factor: ATX
  • Green Compliant: Yes
  • Green Compliance Certificate/Authority: RoHS
