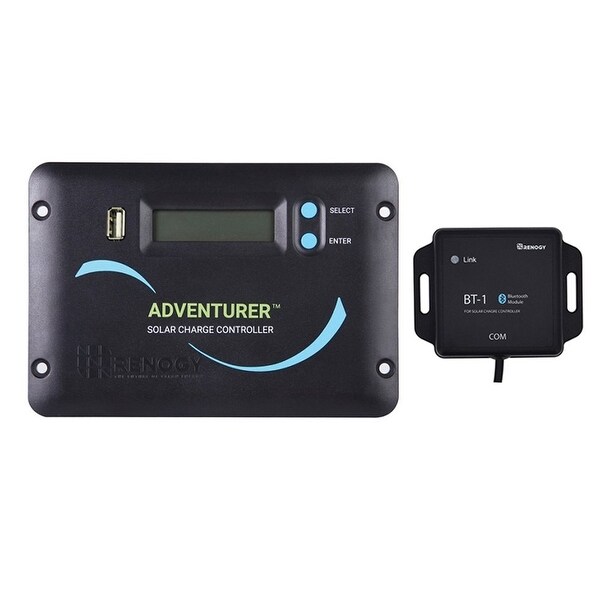

Renogy Adventurer-Li 30A Negative-Ground PWM Flush Mount Charge Controller w/LCD Display - Compatible with batteries

 1 Reviews

Out of Stock: This item is currently unavailable.

Pinterest Logo
Pin It

Description

Details:

OVERVIEW

The Renogy Adventurer is a 30A PWM solar power charge controller that is designed to be used with photovoltaic systems. This advanced negative-ground controller is designed for aesthetically clean flush mounting on RV or camper walls. Integrating highly efficient PWM charging, the Adventurer increases battery longevity by regulating the charge flowing from the solar panels to the battery bank. It features an LCD screen for displaying system operation information and data, and allows for full control of parameter settings. The controller comes equipped with fully comprehensive self-diagnostics and electronic protection functions to prevent damage from installation mistakes or system faults.


 Key Features

Unique

  • Unique USB port on the front display
  • The only Renogy controller with flush mount capabilities.
  • RS232 port allows communication with BT-1 Bluetooth module and usage of Renogy BT smartphone app

Safe

  • Negative-ground controller
  • Protection against: overcharging, overload, short-circuit, and reverse polarity
  • 4 Stage PWM charging (Bulk, Boost, Float, and Equalization) prevents batteries from over-charging and over-discharging

Smart

  • 12V and 24v compatibility
  • LCD screen for displaying operating information and data
  • Compensates for temperature, automatically corrects charging and discharging parameters, and improves battery longevity

Versatile

  • Compatible with Sealed, Gel, Flooded and Lithium batteries
  • The included Adventurer Surface Mount allows for versatility in mounting


SPECIFICATION

 Renogy 30A PWM Flush Mount Charge Controller

  • Nominal Voltage: 12 VDC/ 24 VDC
  • USB Output: 5V, 2.4A Max
  • Rated Charge Current: 30A
  • Max. PV Input Voltage: 50 VDC
  • Equalization Voltage: Sealed: 14.6 V; Gel: None; Flooded: 14.8 V
  • Boost Voltage: Sealed: 14.4 V; Gel: 14.2 V; Flooded: 14.6 V; Lithium: 14.2 V
  • Float Voltage: 13.8 V
  • Under Voltage Warning: 12V
  • Self-consumption: ≤13mA
  • Temperature Compensation Coefficient: -3mV/°C/2V
  • Operating Temperature: -13°F to 131°F
  • Storage Temperature: -31°F to 176°F
  • Enclosure: IP20
  • Dimensions: 6.56 x 4.50 x 1.90 inches
  • Terminals: Up to 8 AWG
  • Weight: 0.6 lbs

  Renogy BT-1 Bluetooth Module

  • Model: BT-1
  • Input Voltage: 5V-12V
  • Standby Power Consumption: 0.04W
  • Operating Power Consumption: 0.05W
  • Communication Range: ≤15m
  • Serial Baud Rate: Fixed Baud Rate 9600bps
  • Cable Length: 5.00 m (16.4 ft)
  • Dimensions: 2.6 X 2.01 X 0.61 In
  • Installation Dimensions: 57.5, φ3.2mm (2.26, φ0.13in)
  • Operation Temperature: -20℃ to 75℃ (-4 F to 167 F)
  • Protection Grade: IP67
  • Weight: 120 g (4.2oz)
Country of Origin: China

Specifications

Item #
26757161
Model Number
RNG-CTRL-ADV30-BT
