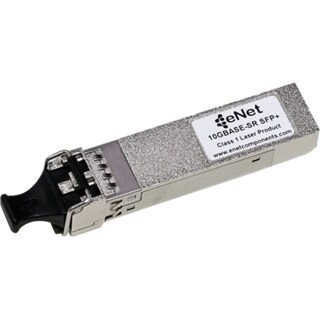

eNet SFP-10G-SR-ENC SFP+ Transceiver Module

Today: $279.99
Out of stock

    Enter your e-mail address, we will notify you if it comes back in stock.

eNet SFP-10G-SR-ENC SFP+ Transceiver Module - 1 x 10GBase-SR

Technical Specifications

  • Description
  • General Information
  • Technical Information
  • Interfaces/Ports
  • Media & Performance
  • Management & Protocols
  • Power Description
  • Environmental Conditions
  • Physical Characteristics
  • Miscellaneous

eNet SFP-10G-SR-ENC SFP+ Transceiver Module

Description
Description

ENET offers the most complete line of OEM compatible transceivers spanning across 50 manufacturers. ENET compatible optics provide a cost-effective, 100% guaranteed compatible solution compared OEM products at a fraction of the price without sacrificing quality or functionality. ENET offers unparalleled quality by performing the most complete and comprehensive testing in the industry. Each optic is individually tested at 100% capacity in the latest network traffic generating equipment for latency, packet loss, frame errors, transmit power (Tx) and receive power (Rx). All ENET transceivers are individually serialized and programmed for their specific application and undergo testing in those specific platforms to ensure 100% compatibility and functionality. Programming involves specific values and algorithms to ensure proper operating software recognition and seamless integration with original OEM and other NON-OEM transceivers. ENET compatible transceiver solutions meet IEEE Standards for optimum performance and reliability as well as RoHS and MSA (Multi-Source Agreement) compliant for form, fit, and function in all MSA compliant switching and routing platforms. All ENET transceivers are backed by a lifetime warranty and are available in TAA compliant versions.

General Information
Manufacturer eNet Components, Inc.
Manufacturer Part Number SFP-10G-SR-ENC
Manufacturer Website Address http://www.enetcomponents.com
Brand Name eNet
Product Model SFP-10G-SR-ENC
Product Name SFP-10G-SR-ENC SFP+ Transceiver Module
Product Type SFP+
Packaged Quantity 1
Technical Information
Application/Usage Data Networking
Interfaces/Ports
Interfaces/Ports 1 x 10GBase-SR
Interfaces/Ports Details 1 x LC Duplex 10GBase-SR Network
Media & Performance
Connectivity Media 62.5 µm, 50 µm Multi-mode Optical Fiber 10GBase-SR
Distance Supported 1312 ft 50.0 µm Optical Fiber 4.70 GHz, 984 ft 50.0 µm Optical Fiber 2 GHz, 85 ft 62.5 µm Optical Fiber 160 MHz, 270 ft 50.0 µm Optical Fiber 500 MHz, 216 ft 50.0 µm Optical Fiber 400 MHz, 108.90 ft 62.5 µm Optical Fiber 200 MHz
Data Transfer Rate 10.30 Gbps Gigabit Ethernet
Management & Protocols
Management

Digital Optical Monitoring (DOM)

Power Description
Input Voltage 3.1 V DCto 3.5 V DC Maximum, 3.3 V DC Typical
Input Current 300 mA Maximum, 200 mA Typical
Environmental Conditions
Temperature -40�F (-40�C) to 185�F (85�C) Storage, 32�F (0�C) to 158�F (70�C) Operating
Physical Characteristics
Form Factor Hot-swappable
Dimensions 0.3" Height x 0.5" Width x 2.2" Depth
Miscellaneous
Additional Information

Fiber Loss Budgets for 10GBASE-SR:

Transmit (dBm):
Max:-1.2
Min:-7.3

Receive (dBm):
Max:-1
Min:-9.9

Operating Wavelength: 850 nm

  • Standard Warranty: Lifetime Replacement
Compatibility
  • MSA Compliant

Cisco Networking Products:

  • CVR-X2-SFP10G
  • N10-E0440
  • N10-E0600
  • N10-S6100
  • N10-S6200
  • N20-I6584
  • N2K-C2148T-1GE
  • N2K-C2232PF-10GE
  • N2K-C2232PP-10GE
  • N2K-C2248TF-1GE
  • N2K-C2248TP-1GE
  • N5K-C5010P-BF
  • N5K-C5020P-BF
  • N5K-M1404
  • N5K-M1600
  • N7K-M132XP-12
  • VS-S720-10G-3C
  • VS-S720-10G-3CXL
  • WS-C2960S-24PD-L
  • WS-C2960S-24TD-L
  • WS-C2960S-48FPD-L
  • WS-C2960S-48LPD-L
  • WS-C2960S-48TD-L
  • WS-C3560E-12D
  • WS-C3560E-24PD
  • WS-C3560E-24TD
  • WS-C3560E-48PD
  • WS-C3560E-48PDF
  • WS-C3560E-48TD
  • WS-C3560X-24P
  • WS-C3560X-24T
  • WS-C3560X-48P
  • WS-C3560X-48PF
  • WS-C3560X-48T
  • WS-C3750E-24PD
  • WS-C3750E-24TD
  • WS-C3750E-48PD
  • WS-C3750E-48PDF
  • WS-C3750E-48TD
  • WS-C3750X-24P
  • WS-C3750X-24T
  • WS-C3750X-48P
  • WS-C3750X-48PF
  • WS-C3750X-48T
  • WS-C4900M
  • WS-C4948E
  • WS-CBS-3110X-S-I
  • WS-CBS-3120XS
  • WS-CBS-3130X-S
  • WS-X4013+10GE
  • WS-X45-SUP6-E
  • WS-X45-SUP6L-E
  • WS-X4516-10GE
  • WS-X4606-X2-E
  • WS-X4904-10GE
  • WS-X4908-10GE
  • WS-X6708-10G-3C
  • WS-X6708-10G-3CXL
  • WS-X6716-10G-3C
  • WS-X6716-10G-3CXL
Green Compliant Yes
Green Compliance Certificate/Authority RoHS
