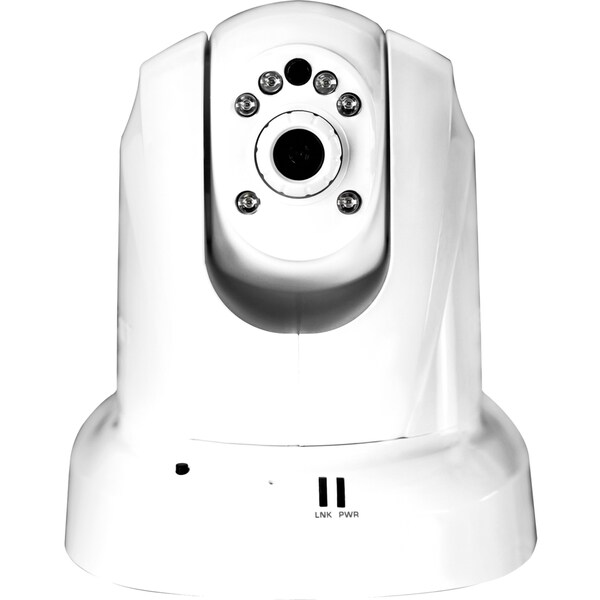

TRENDnet TV-IP672WI Network Camera - Color, Monochrome - Board Mount

Today: $198.64
Out of stock
  • Enter your e-mail address, we will notify you if it comes back in stock.

TRENDnet TV-IP672WI Network Camera - Color, Monochrome - Board Mount - CMOS - Wireless, Cable - Wi-Fi - Fast Ethernet

Technical Specifications

  • Description
  • General Information
  • Display & Graphics
  • Video
  • Audio
  • Image
  • Lens
  • Exposure
  • Network & Communication
  • Controls/Indicators
  • Interfaces/Ports
  • Power Description
  • Physical Characteristics
  • Miscellaneous

TRENDnet TV-IP672WI Network Camera - Color, Monochrome - Board Mount


The Megapixel Wireless N Day / Night PTZ Internet Camera, model TV-IP672WI, provides day and night security over a large area. Pan the camera side-to-side a remarkable 340? and tilt up-and-down 115? from any Internet connection. Record indoor video in complete darkness for distances of up to 7.5 meters. Wireless n technology provides unsurpassed wireless coverage and improved streaming video quality. Add this camera to your wireless network at the touch of a button with Wi-Fi Protected Setup (WPS).

Record 1280 x 800 Megapixel (WXGA) video at up to 30 frames per second (fps). Manage up to four video profiles to record HD video while streaming low resolution video to a compatible smart phone at the same time. Manage up to 32 TRENDnet cameras with the included complimentary camera management software. Advanced features include adjustable motion detection recording areas, email alerts, pan / tilt, Auto-Patrol, scheduled recording sessions, H.264 / MPEG-4 / MJPEG image compression, date-and-time overlays, a Micro-SD card slot for backup storage, two-way audio (speakers not included), an adjustable lens, and four times digital zoom. A wall / ceiling mounting kit is included and the camera's off white housing blends into most environments.

General Information
Manufacturer TRENDnet
Manufacturer Part Number TV-IP672WI
Manufacturer Website Address
Brand Name TRENDnet
Product Model TV-IP672WI
Product Name Megapixel Wireless N Day / Night PTZ Internet Camera
Product Type Network Camera
Display & Graphics
Image Sensor Type CMOS
Illumination 0 Lux
Color Supported Monochrome
Tilt 115?
Swivel 340?
Video Formats H.264
Maximum Video Resolution 1280 x 800
Audio Formats AMR
Image Formats JPEG
Lens Included Yes
Focal Length 4 mm
Lens Mount Type Board Mount
Aperture Range f/1.5
Digital Zoom 4x
Minimum Focus Distance 7.87"
Shortest Shutter Speed 1/15 Second
Longest Shutter Speed 1/3.25 Second
Network & Communication
Connectivity Technology Wireless
Wireless Technology Wi-Fi
Wireless LAN Standard IEEE 802.11b/g/n
Ethernet Yes
Ethernet Technology Fast Ethernet
Protocols LLTD
Status Indicators


  • Power
  • Link/Act
Network (RJ-45) Yes
Power Description
Maximum Power Consumption 10.50 W
Physical Characteristics
Color Off White
Weight (Approximate) 1.14 lb
Application/Usage Indoor/Outdoor
Package Contents
  • Megapixel Wireless N Day / Night PTZ Internet Camera
  • CD-ROM (Utility & User's Guide)
  • Multi-Language Quick Installation Guide
  • Network Cable (1.5 m / 5 ft.)
  • Power Adapter (12V DC, 1.25A)
  • Camera Mounting Kit
System Requirements
  • OS Supported: Windows 7 (32/64-bit), Vista (32/64-bit), XP (32/64-bit), Windows Server 2003, 2008
  • Browser Supported: Internet Explorer 7.0 or above, Firefox, Safari, and Chrome
  • SecurView Pro Software
  • Required Storage: 32 MB (minimum per profile)
Certifications & Standards
  • CE
  • FCC
Security Features
  • 64/128-bit WEP
Platform Supported PC

Product Reviews

Questions & Answers

Get your product questions answered right here.
  • Does it need to be connected to a computer or will it work over WiFi? Does it need to be plugged into a power source?

    • Thank you for your question rmolino. The TRENDnet TV-IP672WI Surveillance/Network Camera - Color, Monochrome is designed to be used wirelessly and has a 12V, 1.25A external power adapter. Have a great day.
