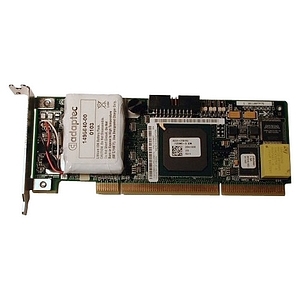

Lenovo ServeRAID-6i SCSI RAID Controller

Product Description

Lenovo ServeRAID-6i SCSI RAID Controller

Product Summary:

This innovative PCI-X controller option works directly with the onboard SCSI chipset to provide RAID-protected data storage in select IBM eServer xSeries servers. It supports both Ultra320 and Ultra160 SCSI hard disk drive (HDD) technologies. Install this controller in your entry and midrange xSeries servers for economical, RAID-protected, data-storage solutions. It provides investment protection and ease-of-use through the same ServeRAID Manager software used with other ServeRAID controllers. This helps minimize the need for additional training of IT staff and can help lower the total cost of ownership to manage and control large numbers of ServeRAID-protected, xSeries servers deployed throughout the enterprise. This controller option has been rigorously tested through the IBM ServerProven program for your peace of mind that your xSeries server storage subsystem is compatible and will function reliably.

• Manufacturer: Lenovo Group Limited
• Manufacturer Part Number: 71P8595
• Manufacturer Website Address: www.lenovo.com/us/en/
• Product Name: ServeRAID-6i SCSI RAID Controller
• Product Type: SCSI RAID Controller
• Host Interface: PCI-X
• Data Transfer Rate: Up to 320MBps
• SCSI Protocols: Ultra160 SCSI
• RAID Levels: 0
• Processor: Intel IOP321 400MHz
• Standard Memory: 128MB ECC SDRAM
• Ports: 2 x 68-pin Internal
• Form Factor: Low-profile Plug-in Card
• Dimensions: 2.34" Height x 7.5" Width
• Weight: 0.4 lb

Shipping:  Leaves our warehouse in 1-3 business days.*

Warranty: 30 Days
Materials: Electronic Components
Model No: 71P8595
Dimensions: 8 x 3

No Payments for Up To 6 Months Minimum purchase required Subject to credit approval    View Details

* For your safety, some orders go through our fraud prevention department. If yours is selected, we will quickly notify you (doing this may cause a delay of up to 3 days).

Technical Specifications

Lenovo ServeRAID-6i SCSI RAID Controller

Manufacturer:	Lenovo Group Limited
Manufacturer Part Number:	71P8595
Product Name:	ServeRAID-6i SCSI RAID Controller
Manufacturer Website Address:	www.lenovo.com/us/en/
Product Type:	SCSI RAID Controller

Host Interface:	PCI-X
Data Transfer Rate:	Up to 320MBps
SCSI Protocols:	Ultra160 SCSI
RAID Levels:	0
Drive Support:	Up to 28

Processor:

Intel IOP321 400MHz

Standard Memory:

128MB ECC SDRAM

Ports:

2 x 68-pin Internal

Temperature:	50 °F (10 °C) to 95 °F (35 °C) Operating 50 °F (10 °C) to 95 °F (35 °C) Operating
Humidity:	8 to 80% Operating
Altitude:	7000 ft Maximum Operating

Form Factor:	Low-profile Plug-in Card
Dimensions:	2.34" Height x 7.5" Width
Shipping Dimensions:	3.5" Height x 8.8" Width x 11.5" Depth
Weight:	0.4 lb
Shipping Weight:	1.39 lb

Package Contents:	ServeRAID-6i SCSI controller (CRU) complete with 3U brackets 2U card bracket ServeRAID-6i support CD-ROMs Installation publications, license agreement, and warranty Battery
Additional Information:	Logical drive migration and auto synchronization support Support for stripe unit sizes of 8KB, 16KB, 32KB, or 64KB Support for hot and cold-swapping of HDDs
Compatibility:	xSeries Servers IBM eServer: BladeCenter IntelliStation EXP300 Storage Expansion Unit VXA-2 tape drive 110/220 GB SDLT internal SCSI tape drive 100/200 GB LTO half-high tape drive
Certifications & Standards:	Emissions U.S. - FCC Class A Europe - CE Mark (EN55022 Class A) Japan - VCCI Class A Taiwan - BSMI Australia/New Zealand - C-tick mark Class A China - CCIB Mark Korea - MOC Mark Russia - GOST Mark Safety UL/cUL Listing IEC60950 CB Report and Certificate CE Mark - Declaration of Conformity C-Tick Korean EMI Approval Mark/Certification Letter BMSI (Taiwan) CCC Certification CNCA - China
